Leckey Horizon Stander - Size 2
Images
Supine Standing Configuration
Some images may display non-standard options.Part Number: EILK02
Retail Price:
Price: $5,140.00 Pr
DESCRIPTION
Discover the versatile Leckey Horizon Pediatric Stander, a 3-in-1 pediatric stander designed to support children with a wide range of abilities. The Horizon can be seamlessly transitioned between supine, prone, and upright standing with the appropriate options. This provides essential therapeutic benefits and promotes social inclusion.

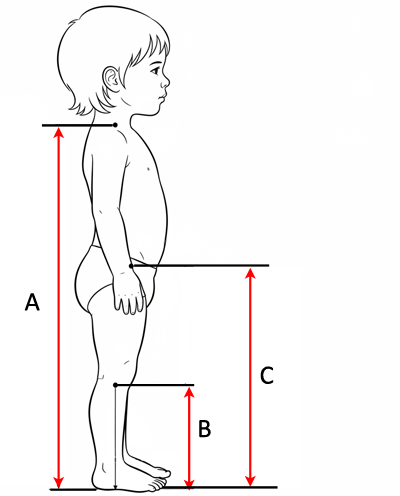

Essential Measurements for Leckey Horizon Stander:
In order to properyly size and adjust the Leckey Horizon Stander you will need three critical measurements. These can be taken when user is either standing or lying down. Preferably lying down is a better practice.
All stander adjustments will refeerence the plane of the foot rest upwards.
(A) Heel to top of shoulder.
(B) Heel to Hip.
(C) Heel to Knee.
The Shoulder height measurement allows proper adjustment of the thoracic pad.
The hip height will set the hip pad/belt height adjustment.
The Knee height measurement allows for the knee pad height adjustment.
SPECIFICATION
| Size 2 | |
| Age | 9-18 Years |
| User Height | 55.1"-70.8" |
| Max. User Weight | 176lbs |
| Shoulder Height | 39.3"-57" (footplate to top of pad) |
| Hip Pad Height | 29.5"-37.4" (footplate to top of pad) |
| Hip Pad Width | 8.2"-15.3" |
| Knee Height | 15.7"-21.6" (footplate to middle of pad) |
| Width Between Chest Laterals | 9.4"-14.9" |
| Footplate Angle Adjustment +/- | 10 ° |
| Frame Angle Adjustment | 0°-90°- Prone |
| 0°-90°- Supine | |
| Tray Angle Adjustment | 0°-40°- Prone |
| +/- 20°/30°- Supine |
