Axiom Back

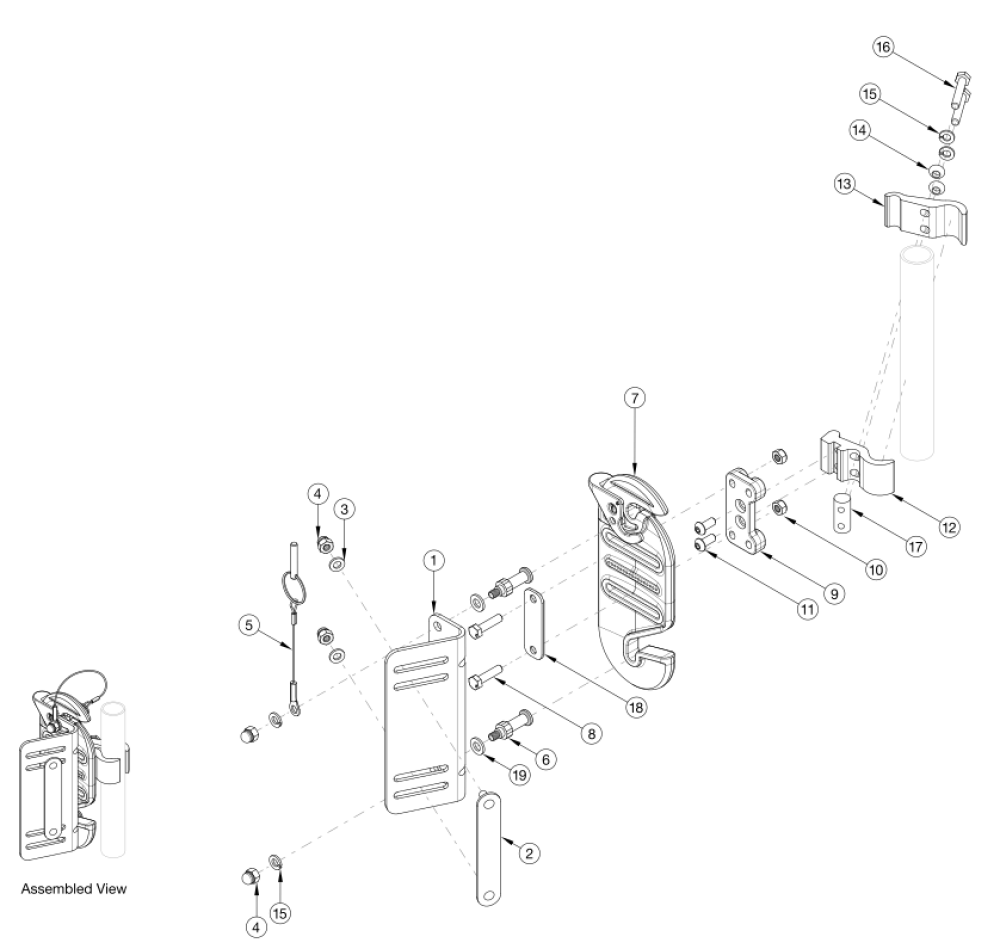

Name: Axiom Back: Axiom Btx Hardware
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility
Part Picture
(Click on image to enlarge)
Removable Hardware (400lb Max User Weight).
Not recommended for Ultralight Rigid Frame Wheelchairs.
BTX hardware is not compatible with Caregiver Height Adjustable Push Handles
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1, 2a, 3 - 19 | 123847 | BTX Hardware Retrofit Kit (without Laterals), PAIR, Axiom Back- Used when laterals are NOT present | Used when laterals are NOT present |
$488.26
|
EA |
|
| 1, 2b, 3 - 19 | 123848 | BTX Hardware Retrofit Kit (with Laterals), Axiom Back- Used when laterals ARE present | Used when laterals ARE present |
$493.54
|
EA |
|
| 1, 4 - 6, 15, 19 | 123849 | Bracket Back Mount Kit, Left, BTX Hardware |
$64.92
|
EA |
|
|
| 1, 4 - 6, 15, 19 | 123850 | Bracket Back Mount Kit, Right, BTX Hardware |
$64.92
|
EA |
|
|
| 1, 4 - 6, 15, 19 | 123851 | Bracket Back Mount Kit, PAIR, BTX Hardware |
$130.38
|
EA |
|
|
| 9, 11 - 17 | 123852 | Axiom Back Clamp Assembly, PAIR, BTX Hardware |
$214.31
|
EA |
|
|
| 3 | 100746 | M6 Flat Washer Blk Zn |
$1.81
|
EA |
|
|
| 4 | 100558 | M6 Nyl Ins Domed Cap L/N Zc |
$1.19
|
EA |
|
|
| 8 | 102792 | M6 x 25, HHCS, Blk Zn |
$0.61
|
EA |
|
|
| 10 | 100658 | M6 Nylock Nut Blk Zn |
$1.19
|
EA |
|
|
| 15 | 101835 | M6 Lock Washer Blk Zn |
$0.61
|
EA |
|
|
| 18 | 115942 | Dual Serrated Plate, Backrest Mount |
$20.91
|
EA |
|
|
| 19 | 101858 | Washer Flat M8 Blk Zn |
$0.61
|
EA |
|
