Axiom Back

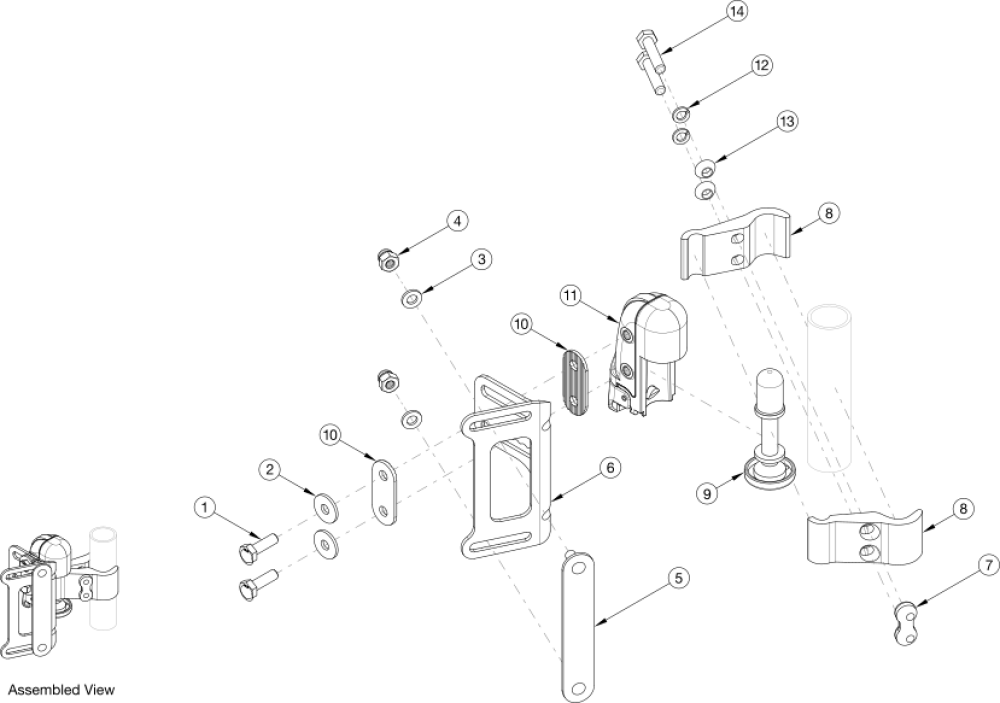

Name: Axiom Back: Axiom Dex Hardware
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility
Part Picture
(Click on image to enlarge)
New DEX Hardware. If invoiced prior to 5/30/2023, see (Discontinued) Axiom DEX Hardware for identical replacement.
Removable Adjustable Hardware (300lb Max User Weight)
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 14 | 119829 | DEX Hardware Retrofit Kit, PAIR, Axiom Back |
$358.94
|
EA |
|
|
| 1, 2, 10, 11a | 119831 | DEX Hardware Housing and Hardware Assembly, Left, Axiom Back |
$64.92
|
EA |
|
|
| 1, 2, 10, 11b | 119832 | DEX Hardware Housing and Hardware Assembly, Right, Axiom Back |
$64.92
|
EA |
|
|
| 1, 2, 10, 11a, 11b | 119830 | DEX Hardware Housing and Hardware Assembly, PAIR, Axiom Back |
$129.86
|
EA |
|
|
| 7 - 9, 12, 13, 14a, 14b | 119833 | DEX Clamp and Post Assembly, Hardware Included, Each, Axiom Back |
$82.88
|
EA |
|
|
| 7 - 9, 12, 13, 14a, 14b | 119834 | DEX Clamp and Post Assembly, Hardware Included, PAIR, Axiom Back |
$165.22
|
EA |
|
|
| 1 | 101823 | M6 X 20 Hhcs Blk Zn |
$1.19
|
EA |
|
|
| 2 | 101853 | M6 Washer Blk Zn |
$0.61
|
EA |
|
|
| 3 | 100746 | M6 Flat Washer Blk Zn |
$1.81
|
EA |
|
|
| 4 | 100558 | M6 Nyl Ins Domed Cap L/N Zc |
$1.19
|
EA |
|
|
| 5 | 004688 | Axiom Back Mount Stud Plate |
$23.29
|
|
||
| 6b | 005475 | Axiom Back Mount Bracket Right |
$17.47
|
EA |
|
|
| 6a | 005474 | Axiom Back Mount Bracket Left |
$17.47
|
EA |
|
|
| 7 | 005476 | Nut, Dual, Sr.25, M6, .60Sp |
$40.76
|
EA |
|
|
| 8 | 005472 | Axiom Back Mount Clamp |
$34.94
|
EA |
|
|
| 9 | 005469 | Axiom Back Mount Post |
$34.94
|
EA |
|
|
| 12 | 101835 | M6 Lock Washer Blk Zn |
$0.61
|
EA |
|
|
| 13 | 003810 | Washer, Spher, 10Mm |
$11.65
|
|
||
| 14a | 100860 | M6 X 35 Hhcs P/Thd Zc- Used with 1" and 1-1/8" Back Canes | Used with 1" and 1-1/8" Back Canes |
$1.81
|
EA |
|
| 14b | 101824 | M6 X 30 Hhcs Blk Zn- Used with 3/4" and 7/8" Back Canes | Used with 3/4" and 7/8" Back Canes |
$2.41
|
EA |
|
