Axiom Back

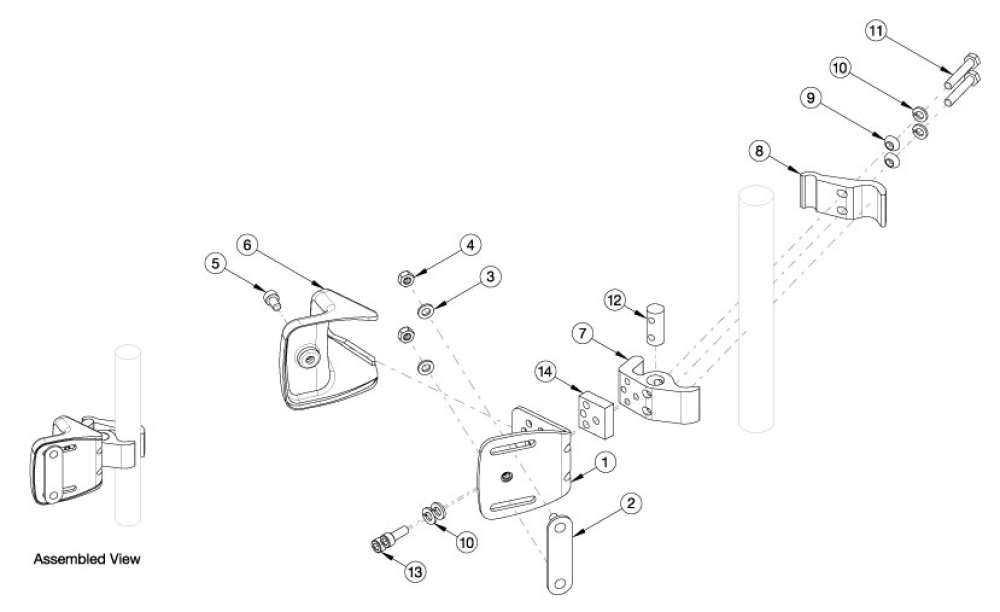

Name: Axiom Back: Axiom Fxt Hardware
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility
Part Picture
(Click on image to enlarge)
Non-Removable Hardware (300lb Max User Weight).
FXT Hardware is limited to 20" Back Heights for Lateral, Posterior Lateral, and Deep Lateral Backs.
FXT Hardware is NOT compatible with Laterals.
FXT Hardware is not compatible with Caregiver Height Adjustable Push Handles
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 14 | 119835 | FXT Hardware Retrofit Kit, PAIR, Axiom Back |
$245.98
|
EA |
|
|
| 1a - 14 | 123010 | FXT Hardware Retrofit Kit, LEFT, Axiom Back |
$122.95
|
EA |
|
|
| 1b - 14 | 123011 | FXT Hardware Retrofit Kit, RIGHT, Axiom Back |
$122.95
|
EA |
|
|
| 7 - 12 | 116483 | Axiom Back Clamp Assembly, FXT |
$65.45
|
EA |
|
|
| 7 - 12 | 119836 | Axiom Back Clamp Assembly, PAIR, FXT |
$130.91
|
EA |
|
|
| 1a | 122965 | Bracket, Back Mount, Left, FXT |
$28.51
|
EA |
|
|
| 1b | 122967 | Bracket, Back Mount, Right, FXT |
$28.51
|
EA |
|
|
| 2 | 115568 | Back Mount, Stud Plate, Fxt |
$7.43
|
EA |
|
|
| 3 | 100746 | M6 Flat Washer Blk Zn |
$1.81
|
EA |
|
|
| 4 | 100658 | M6 Nylock Nut Blk Zn |
$1.19
|
EA |
|
|
| 5 | 101179 | M6 X 10 Shcs Blk Zc W/Patch |
$2.41
|
|
||
| 6 | 116156 | Cover, Back Mount, FXT |
$2.11
|
EA |
|
|
| 7 | 115939 | Clamp, FXT Backrest, Hinge |
$27.98
|
EA |
|
|
| 8 | 005472 | Axiom Back Mount Clamp |
$34.94
|
EA |
|
|
| 9 | 003810 | Washer, Spher, 10Mm |
$11.65
|
|
||
| 10 | 101835 | M6 Lock Washer Blk Zn |
$0.61
|
EA |
|
|
| 11 | 101860 | Washer Flat M12 Blk Zn |
$1.19
|
|
||
| 12 | 116155 | Clamp, Full Barrel Nut |
$14.78
|
EA |
|
|
| 13a | 101179 | M6 X 10 Shcs Blk Zc W/Patch |
$2.41
|
|
||
| 13b | 101180 | M6 x 20 SHCS BLK ZC |
$2.41
|
EA |
|
|
| 14 | 120027 | Back Mount Spacer, FXT |
$9.18
|
EA |
|
