Axiom Back

Name: Axiom Back: Axiom Custom Back Fixed Laterals For Axcpl
Manufacturer: Ki Mobility

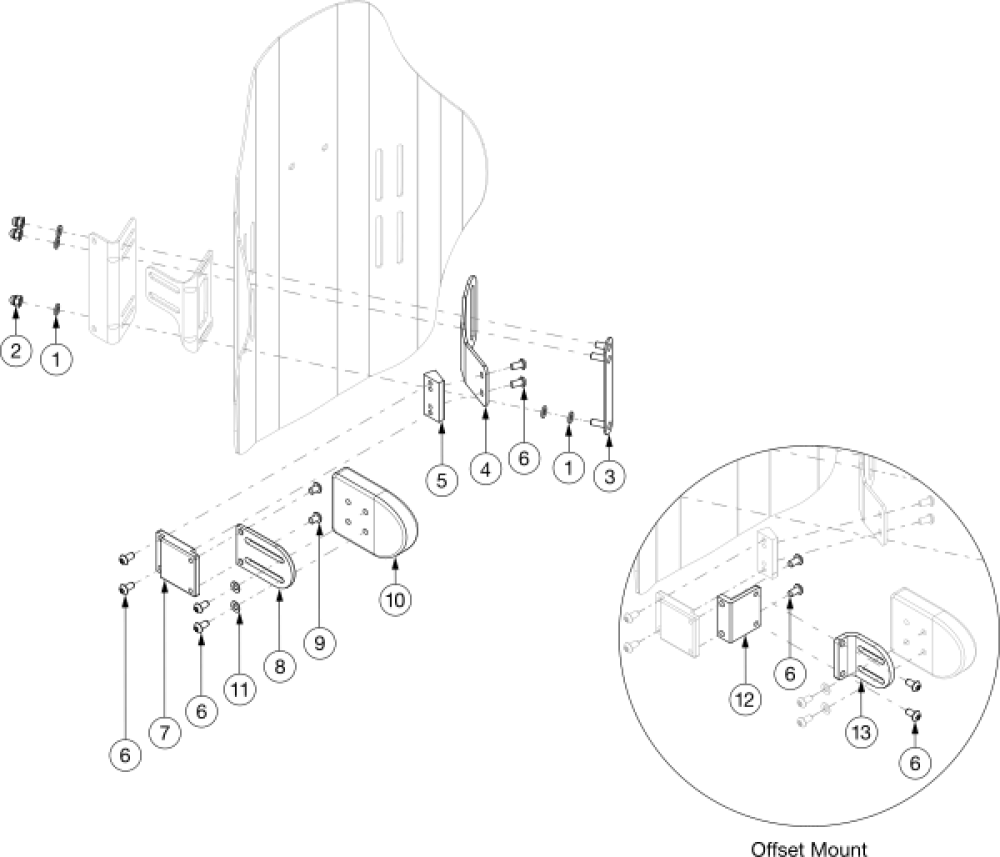

Axiom Custom Back Fixed Laterals For Axcpl parts diagram
(Click on image to enlarge)

For a full lateral assembly, add number 3 based on mounting hardware
Pos. Part # Description Price UOM Buy
3a 004889 Axiom Back Lateral Stud Plate- Used for DEX and FXT mounting hardware
$17.47
EA
3b 115937 Axiom Back Lateral Stud Plate, BTX
$15.31
EA
1, 2, 4a, 4b, 5 - 7, 8a, 9, 10a, 11 122307 3x4 Flat Pad Axiom Custom Back PL Fixed Flush Pair Kit
$770.10
EA
1, 2, 4a, 5 - 7, 8a, 9, 10a, 11 122308 3x4 Flat Pad Axiom Custom Back PL Fixed Flush Left Kit
$387.60
EA
1, 2, 4b, 5 - 7, 8a, 9, 10a, 11 122309 3x4 Flat Pad Axiom Custom Back PL Fixed Flush Right Kit
$387.60
EA
1, 2, 4a, 4b, 5 - 7, 8a, 9, 10b, 11 122310 4x5 Flat Pad Axiom Custom Back PL Fixed Flush Pair Kit
$770.10
EA
1, 2, 4a, 5 - 7, 8a, 9, 10b, 11 122311 4x5 Flat Pad Axiom Custom Back PL Fixed Flush Left Kit
$387.60
EA
1, 2, 4b, 5 - 7, 8a, 9, 10b, 11 122312 4x5 Flat Pad Axiom Custom Back PL Fixed Flush Right Kit
$387.60
EA
1, 2, 4a, 4b, 5 - 7, 8a, 9, 10c, 11 122313 3x4 Curved Pad Axiom Custom Back PL Fixed Flush Pair Kit
$770.10
EA
1, 2, 4a, 5 - 7, 8a, 9, 10c, 11 122314 3x4 Curved Pad Axiom Custom Back PL Fixed Flush Left Kit
$387.60
EA
1, 2, 4b, 5 - 7, 8a, 9, 10c, 11 122315 3x4 Curved Pad Axiom Custom Back PL Fixed Flush Right Kit
$387.60
EA
1, 2, 4a, 4b, 5 - 7, 8a, 9, 10d, 11 122316 4x5 Curved Pad Axiom Custom Back PL Fixed Flush Pair Kit
$770.10
EA
1, 2, 4a, 5 - 7, 8a, 9, 10d, 11 122317 4x5 Curved Pad Axiom Custom Back PL Fixed Flush Left Kit
$387.60
EA
1, 2, 4b, 5 - 7, 8a, 9, 10d, 11 122318 4x5 Curved Pad Axiom Custom Back PL Fixed Flush Right Kit
$387.60
EA
1, 2, 4a, 4b, 5 - 7, 9, 10a, 11, 12a, 13 122382 3x4 Flat Pad Axiom Custom Back PL 1" Offset Fixed Pair Kit
$917.29
EA
1, 2, 4a, 5 - 7, 9, 10a, 11, 12a, 13 122383 3x4 Flat Pad Axiom Custom Back PL 1" Offset Fixed Left Kit
$461.19
EA
1, 2, 4b, 5 - 7, 9, 10a, 11, 12a, 13 122384 3x4 Flat Pad Axiom Custom Back PL 1" Offset Fixed Right Kit
$461.19
EA
1, 2, 4a, 4b, 5 - 7, 9, 10b, 11, 12a, 13 122385 4x5 Flat Pad Axiom Custom Back PL 1" Offset Fixed Pair Kit
$917.29
EA
1, 2, 4a, 5 - 7, 9, 10b, 11, 12a, 13 122386 4x5 Flat Pad Axiom Custom Back PL 1" Offset Fixed Left Kit
$461.19
EA
1, 2, 4b, 5 - 7, 9, 10b, 11, 12a, 13 122387 4x5 Flat Pad Axiom Custom Back PL 1" Offset Fixed Right Kit
$461.19
EA
1, 2, 4a, 4b, 5 - 7, 9, 10c, 11, 12a, 13 122388 3x4 Curved Pad Axiom Custom Back PL 1" Offset Fixed Pair Kit
$917.29
EA
1, 2, 4a, 5 - 7, 9, 10c, 11, 12a, 13 122389 3x4 Curved Pad Axiom Custom Back PL 1" Offset Fixed Left Kit
$461.19
EA
1, 2, 4b, 5 - 7, 9, 10c, 11, 12a, 13 122390 3x4 Curved Pad Axiom Custom Back PL 1" Offset Fixed Right Kit
$461.19
EA
1, 2, 4a, 4b, 5 - 7, 9, 10d, 11, 12a, 13 122391 4x5 Curved Pad Axiom Custom Back PL 1" Offset Fixed Pair Kit
$917.29
EA
1, 2, 4a, 5 - 7, 9, 10d, 11, 12a, 13 122392 4x5 Curved Pad Axiom Custom Back PL 1" Offset Fixed Left Kit
$461.19
EA
1, 2, 4b, 5 - 7, 9, 10d, 11, 12a, 13 122393 4x5 Curved Pad Axiom Custom Back PL 1" Offset Fixed Right Kit
$461.19
EA
1, 2, 4a, 4b, 5 - 7, 9, 10a, 11, 12b, 13 122397 3x4 Flat Pad Axiom Custom Back PL 2" Offset Fixed Pair Kit
$917.29
EA
1, 2, 4a, 5 - 7, 9, 10a, 11, 12b, 13 122398 3x4 Flat Pad Axiom Custom Back PL 2" Offset Fixed Left Kit
$461.19
EA
1, 2, 4b, 5 - 7, 9, 10a, 11, 12b, 13 122399 3x4 Flat Pad Axiom Custom Back PL 2" Offset Fixed Right Kit
$461.19
EA
1, 2, 4a, 4b, 5 - 7, 9, 10b, 11, 12b, 13 122400 4x5 Flat Pad Axiom Custom Back PL 2" Offset Fixed Pair Kit
$917.29
EA
1, 2, 4a, 5 - 7, 9, 10b, 11, 12b, 13 122401 4x5 Flat Pad Axiom Custom Back PL 2" Offset Fixed Left Kit
$461.19
EA
1, 2, 4b, 5 - 7, 9, 10b, 11, 12b, 13 122402 4x5 Flat Pad Axiom Custom Back PL 2" Offset Fixed Right Kit
$461.19
EA
1, 2, 4a, 4b, 5 - 7, 9, 10c, 11, 12b, 13 122403 3x4 Curved Pad Axiom Custom Back PL 2" Offset Fixed Pair Kit
$917.29
EA
1, 2, 4a, 5 - 7, 9, 10c, 11, 12b, 13 122404 3x4 Curved Pad Axiom Custom Back PL 2" Offset Fixed Left Kit
$461.19
EA
1, 2, 4b, 5 - 7, 9, 10c, 11, 12b, 13 122405 3x4 Curved Pad Axiom Custom Back PL 2" Offset Fixed Right Kit
$461.19
EA
1, 2, 4a, 4b, 5 - 7, 9, 10d, 11, 12b, 13 122406 4x5 Curved Pad Axiom Custom Back PL 2" Offset Fixed Pair Kit
$917.29
EA
1, 2, 4a, 5 - 7, 9, 10d, 11, 12b, 13 122407 4x5 Curved Pad Axiom Custom Back PL 2" Offset Fixed Left Kit
$461.19
EA
1, 2, 4b, 5 - 7, 9, 10d, 11, 12b, 13 122408 4x5 Curved Pad Axiom Custom Back PL 2" Offset Fixed Right Kit
$461.19
EA
1, 2, 4a, 4b, 5 - 7, 8a 122148 Axiom Custom Back PL Fixed Flush Pair Kit
$520.20
EA
1, 2, 4a, 5 - 7, 8a 122149 Axiom Custom Back PL Fixed Flush Left Kit
$260.10
EA
1, 2, 4b, 5 - 7, 8a 122150 Axiom Custom Back PL Fixed Flush Right Kit
$260.10
EA
1, 2, 4a, 4b, 5 - 7, 12a, 13 122379 Axiom Custom Back PL 1" Offset Fixed Pair Kit (No Pad)
$667.39
EA
1, 2, 4a, 5 - 7, 12a, 13 122380 Axiom Custom Back PL 1" Offset Fixed Left Kit (No Pad)
$333.69
EA
1, 2, 4b, 5 - 7, 12a, 13 122381 Axiom Custom Back PL 1" Offset Fixed Right Kit (No Pad)
$333.69
EA
1, 2, 4a, 4b, 5 - 7, 12b, 13 122394 Axiom Custom Back PL 2" Offset Fixed Pair Kit (No Pad)
$667.39
EA
1, 2, 4a, 5 - 7, 12b, 13 122395 Axiom Custom Back PL 2" Offset Fixed Left Kit (No Pad)
$333.69
EA
1, 2, 4b, 5 - 7, 12b, 13 122396 Axiom Custom Back PL 2" Offset Fixed Right Kit (No Pad)
$333.69
EA
6, 12a, 13 122151 Axiom Custom Back FIXED 1" Offset Hardware Kit Pair- Used to convert a current fixed laterals to offset laterals
$224.40
EA
6, 12a, 13 122152 Axiom Custom Back FIXED 1" Offset Hardware Kit Single- Used to convert a current fixed lateral to an offset lateral
$112.20
EA
6, 12b, 13 122153 Axiom Custom Back FIXED 2" Offset Hardware Kit Pair- Used to convert a current fixed laterals to offset laterals
$224.40
EA
6, 12b, 13 122154 Axiom Custom Back FIXED 2" Offset Hardware Kit Single- Used to convert a current fixed lateral to an offset lateral
$112.20
EA
1 100746 M6 Flat Washer Blk Zn
$1.81
EA
2 100558 M6 Nyl Ins Domed Cap L/N Zc
$1.19
EA
4a 004887 Axiom PL Back Lateral Mount, Swing Away, Left
$40.76
EA
4b 004886 Axiom PL Back Lateral Mount, Swing Away, Right
$40.76
EA
5 107545 Axiom Back Spacer Block 20 Deg
$93.17
EA
6 104017 1/4-20 X 1/2 Stainless Button Head Cap Screw
$3.50
EA
7 104237 Lateral, Modular Depth Adapter, 2"
$56.10
EA
8a 104249 Lateral, Modular Flush Pad Mount, 3"
$38.61
EA
8b 104250 Lateral, Modular Flush Pad Mount, 5"
$43.86
EA
8c 104251 Lateral, Modular Flush Pad Mount, 6"
$68.34
EA
8d 104252 Lateral, Modular Flush Pad Mount, 7"
$69.36
EA
9 104031 1/4-20 X 3/8 Stainless Button Head Cap Screw
$3.50
EA
10a 122140 Axiom Custom Back Lateral Pad 3X4 Flat Pair Kit
$249.90
EA
10a 122141 Axiom Custom Back Lateral Pad 3X4 Flat Single Kit
$127.50
EA
10b 122142 Axiom Custom Back Lateral Pad 4X5 Flat Pair Kit
$249.90
EA
10b 122143 Axiom Custom Back Lateral Pad 4X5 Flat Single Kit
$127.50
EA
10c 122144 Axiom Custom Back Lateral Pad 3X4 Curved Pair Kit
$249.90
EA
10c 122145 Axiom Custom Back Lateral Pad 3X4 Curved Single Kit
$127.50
EA
10d 122146 Axiom Custom Back Lateral Pad 4X5 Curved Pair Kit
$249.90
EA
10d 122147 Axiom Custom Back Lateral Pad 4X5 Curved Single Kit
$127.50
EA
10 102803 Washer Flat .250 X .500 X .027 Hx Blz
$1.81
EA
11 102803 Washer Flat .250 X .500 X .027 Hx Blz
$1.81
EA
12a 104345 Lateral, Modular Offset Adapter, 1"
$82.73
EA
12b 104346 Lateral, Modular Offset Adapter, 2"
$82.73
EA
13 106217 Lateral, Modular Offset Mounting Plate, 2 1/2"
$23.46
EA
