Axiom Custom Seating
Name: Axiom Custom Seating: Snap Lock Clamps
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

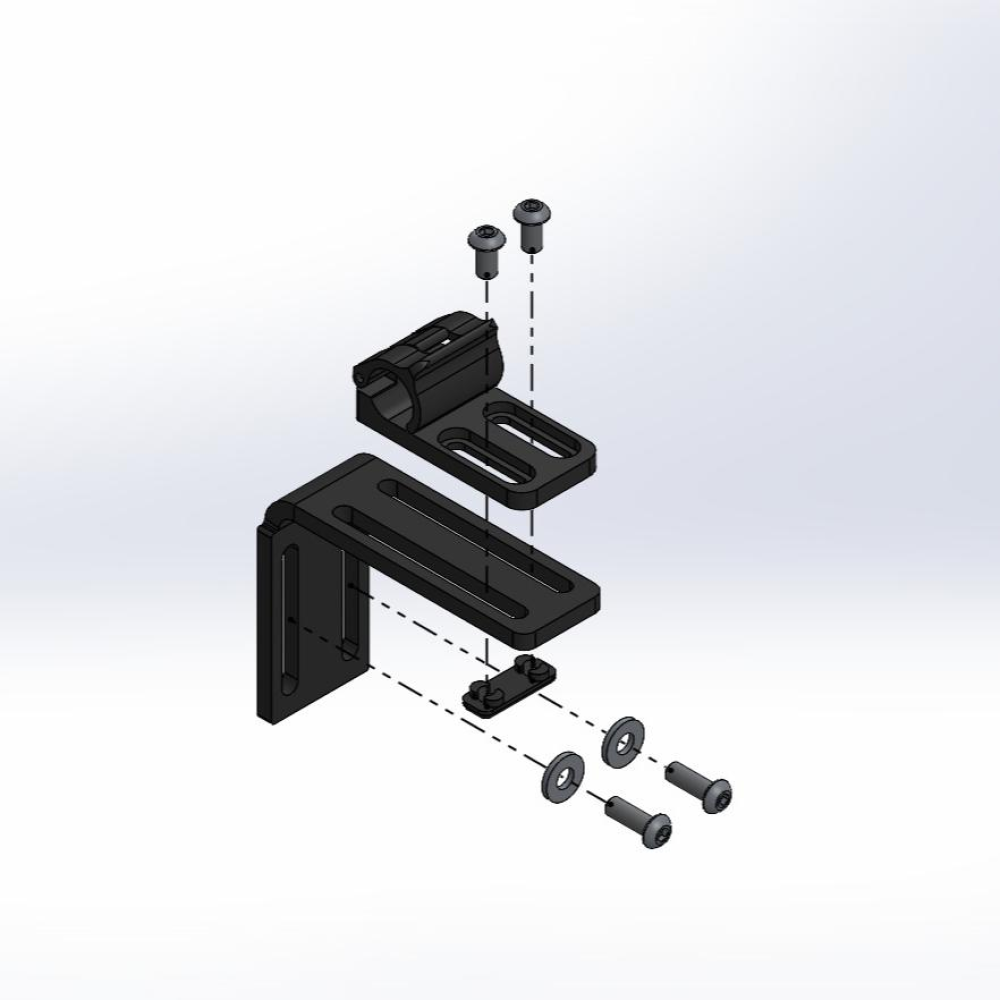

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1, 7, 10 - 12, 14 | 123185 | Snap Lock Hardware, 3/4" Clamp Assy, Low Profile, 3" L-Bracket, 90° |
$206.94
|
EA |
|
|
| 1, 8, 10 - 12, 14 | 123186 | Snap Lock Hardware, 3/4" Clamp Assy, Low Profile, 1-1/2" L-Bracket, 90° |
$196.74
|
EA |
|
|
| 1, 9 - 12, 14 | 123187 | Snap Lock Hardware, 3/4" Clamp Assy, Low Profile, 1-1/2" L-Bracket, 70° |
$139.62
|
EA |
|
|
| 2, 7, 10 - 12, 14 | 123188 | Snap Lock Hardware, 7/8" Clamp Assy, Low Profile, 3" L-Bracket, 90° |
$206.94
|
EA |
|
|
| 2, 8, 10 - 12, 14 | 123189 | Snap Lock Hardware, 7/8" Clamp Assy, Low Profile, 1-1/2" L-Bracket, 90° |
$196.74
|
EA |
|
|
| 2, 9 - 12, 14 | 123190 | Snap Lock Hardware, 7/8" Clamp Assy, Low Profile, 1-1/2" L-Bracket, 70° |
$139.62
|
EA |
|
|
| 3 - 4, 10 - 13 | 123191 | Snap Lock Hardware, 1" Clamp Assy, 2-3/4" L-Bracket, 90° |
$206.94
|
EA |
|
|
| 3, 5, 10 - 13 | 123192 | Snap Lock Hardware, 1" Clamp Assy, 3" L-Bracket, 90° |
$195.72
|
EA |
|
|
| 3, 6, 10 - 13 | 123193 | Snap Lock Hardware, 1" Clamp Assy, 3" L-Bracket, 70° |
$201.84
|
EA |
|
|
| 1 | 104641 | Snap Lock Hardware, Clamp, Low Profile, 3/4" |
$90.78
|
EA |
|
|
| 2 | 104610 | Snap Lock Hardware, Clamp, Low Profile, 7/8" |
$90.78
|
EA |
|
|
| 3 | 104693 | Snap Lock Hardware, Clamp, 1" |
$111.18
|
EA |
|
|
| 4 | 104813 | T/F Hardware, Slotted Adjustable Bracket, 2 3/4", 90° |
$43.86
|
EA |
|
|
| 5 | 104865 | T/F Hardware, Slotted Adjustable Bracket, 3", 90° |
$32.64
|
EA |
|
|
| 6 | 104871 | T/F Hardware, Slotted Adjustable Bracket, 3", 70° |
$38.76
|
EA |
|
|
| 7 | 104853 | T/F Hardware, Slotted Adjustable Bracket, Low Profile, 3", 90° |
$67.32
|
EA |
|
|
| 8 | 104877 | T/F Hardware, Slotted Adjustable Bracket, Low Profile, 1 1/2", 90° |
$57.12
|
EA |
|
|
| 9 | 110438 | T/F Hardware, Slotted Adjustable, Bracket, Low Profile, 1 1/2", 70° | N/A | EA | Please Call | |
| 10 | 104017 | 1/4-20 X 1/2 Stainless Button Head Cap Screw |
$3.50
|
EA |
|
|
| 11 | 104028 | 1/4-20 X 3/4 Stainless Button Head Cap Screw |
$5.82
|
EA |
|
|
| 12 | 104007 | Washer, Flat, 1/4", 18-8, BLK OX, ASME B18.22.1, N, TYPE A |
$3.37
|
EA |
|
|
| 13 | 104872 | Anti-Rotation Slot Nut, 1", Threaded |
$26.52
|
EA |
|
|
| 14 | 104876 | Anti-Rotation Slot Nut, 3/4", Threaded |
$23.46
|
EA |
|
