Axiom Custom Seating
Name: Axiom Custom Seating: Swing Away Modular All Season
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

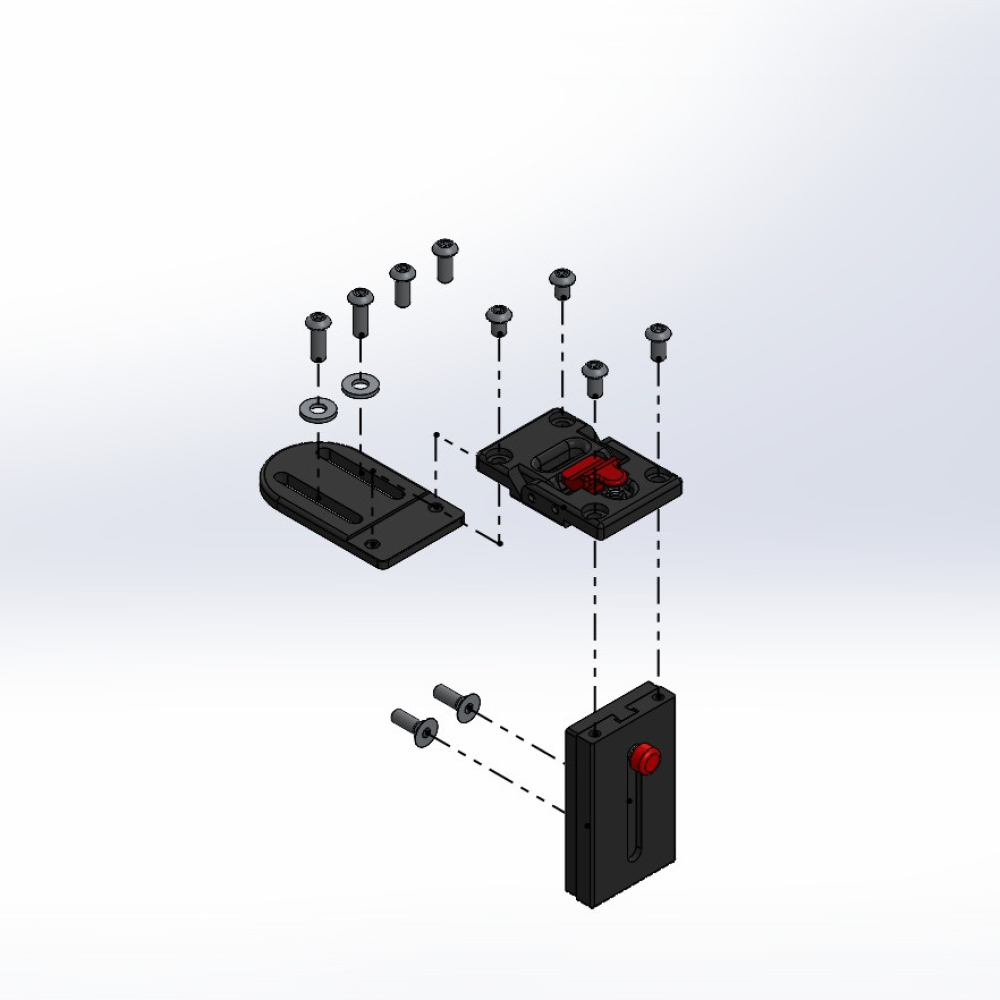

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1, 7 - 10. 13 - 16 | 123359 | Lateral, Swing Away Modular Assy, 3" Pad Mount, All Season, 90° |
$371.82
|
EA |
|
|
| 1, 7 - 9, 12 - 16 | 123360 | Lateral, Swing Away Modular Assy, 3" Pad Mount, All Season, 70° |
$381.04
|
EA |
|
|
| 2, 6 - 10, 13 - 16 | 123361 | Lateral, Swing Away Modular Assy, 3" Flush Pad Mount, All Season, 90° |
$399.40
|
EA |
|
|
| 2, 6 - 9, 12 - 16 | 123362 | Lateral, Swing Away Modular Assy, 3" Flush Pad Mount, All Season, 70° |
$408.62
|
EA |
|
|
| 3, 6 - 10, 13 - 16 | 123363 | Lateral, Swing Away Modular Assy, 5" Flush Pad Mount, All Season, 90° |
$404.65
|
EA |
|
|
| 3, 6 - 9, 12 - 16 | 123364 | Lateral, Swing Away Modular Assy, 5" Flush Pad Mount, All Season, 70° |
$413.88
|
EA |
|
|
| 4, 6 - 10, 13 - 16 | 123365 | Lateral, Swing Away Modular Assy, 6" Flush Pad Mount, All Season, 90° |
$429.13
|
EA |
|
|
| 4, 6 - 9, 12 - 16 | 123366 | Lateral, Swing Away Modular Assy, 6" Flush Pad Mount, All Season, 70° |
$438.36
|
EA |
|
|
| 5, 6 - 10, 13 - 16 | 123367 | Lateral, Swing Away Modular Assy, 7" Flush Pad Mount, All Season, 90° |
$430.15
|
EA |
|
|
| 5, 6 - 9, 12 - 16 | 123368 | Lateral, Swing Away Modular Assy, 7" Flush Pad Mount, All Season, 70° |
$439.38
|
EA |
|
|
| 1 | 104253 | Lateral, Swingaway Flush Threaded Pad Mount, 3" |
$38.61
|
EA |
|
|
| 2 | 104249 | Lateral, Modular Flush Pad Mount, 3"- Requires Lateral, Swing Away Threaded Interface Adapter (104239) | Requires Lateral, Swing Away Threaded Interface Adapter (104239) |
$38.61
|
EA |
|
| 3 | 104250 | Lateral, Modular Flush Pad Mount, 5"- Requires Lateral, Swing Away Threaded Interface Adapter (104239) | Requires Lateral, Swing Away Threaded Interface Adapter (104239) |
$43.86
|
EA |
|
| 4 | 104251 | Lateral, Modular Flush Pad Mount, 6"- Requires Lateral, Swing Away Threaded Interface Adapter (104239) | Requires Lateral, Swing Away Threaded Interface Adapter (104239) |
$68.34
|
EA |
|
| 5 | 104252 | Lateral, Modular Flush Pad Mount, 7"- Requires Lateral, Swing Away Threaded Interface Adapter (104239) | Requires Lateral, Swing Away Threaded Interface Adapter (104239) |
$69.36
|
EA |
|
| 6 | 104239 | Lateral, Swingaway Threaded Interface Adapter- Required for Modular Flush Pad Mounts and 1" & 2" Offset Adapter | Required for Modular Flush Pad Mounts and 1" & 2" Offset Adapter |
$27.58
|
EA |
|
| 7 | 104463 | Lateral, Swingaway Modular Quick Release Mount |
$183.42
|
EA |
|
|
| 8 | 104017 | 1/4-20 X 1/2 Stainless Button Head Cap Screw |
$3.50
|
EA |
|
|
| 9 | 104031 | 1/4-20 X 3/8 Stainless Button Head Cap Screw- ALL FLUSH & ADJ PAD MOUNTS ONLY | ALL FLUSH & ADJ PAD MOUNTS ONLY |
$3.50
|
EA |
|
| 10 | 104355 | Lateral, All Season Mount |
$104.79
|
EA |
|
|
| 11 | 104038 | 1/4-20 X 7/8 Stainless Button Head Cap Screw- For 90° All Season Mount to Adapter & for Planar Mount to Back/Seat | For 90° All Season Mount to Adapter & for Planar Mount to Back/Seat |
$1.21
|
|
|
| 12 | 104356 | Lateral, All Season Mount, 70° |
$104.79
|
EA |
|
|
| 13 | 104028 | 1/4-20 X 3/4 Stainless Button Head Cap Screw- For 70° All Season Mount to Adapter & pad mounting | For 70° All Season Mount to Adapter & pad mounting |
$5.82
|
EA |
|
| 14 | 104029 | 1/4-20 X 3/4" FLAT HEAD CAP SCREW- For All Season to Back | For All Season to Back |
$3.06
|
|
|
| 15 | 104028 | 1/4-20 X 3/4 Stainless Button Head Cap Screw- For Wood base pad mounting | For Wood base pad mounting |
$5.82
|
EA |
|
| 16 | 104032 | 1/4-20 X 5/8 Stainless Button Head Cap Screw- For Metal Base Pad Mounting | For Metal Base Pad Mounting |
$2.04
|
|
|
| 17 | 104007 | Washer, Flat, 1/4", 18-8, BLK OX, ASME B18.22.1, N, TYPE A |
$3.37
|
EA |
|
|
| 18 | 104231 | Lateral, Swingaway Depth Adapter, 1"- For additional depth/height needed behind Swing Away Hinge | For additional depth/height needed behind Swing Away Hinge |
$49.98
|
EA |
|
| 19 | 104240 | Lateral, Swingaway Depth Adapter, 2"- For additional depth/height needed behind Swing Away Hinge | For additional depth/height needed behind Swing Away Hinge |
$56.10
|
EA |
|
| 20 | 104243 | Lateral, Swingaway Depth Adapter, 3"- For additional depth/height needed behind Swing Away Hinge | For additional depth/height needed behind Swing Away Hinge |
$60.18
|
EA |
|
| 21 | 104018 | 1/4-20 X 1/2 Stainless Flat Head Cap Screw- For All Season to Track | For All Season to Track |
$3.37
|
|
|
| 22 | 104971 | Track Nut, 1" Spacing |
$23.46
|
EA |
|
|
| 23 | 104560 | Lateral, Modular Track Nut Spacer |
$13.26
|
EA |
|
