Axiom Custom Seating
Name: Axiom Custom Seating: Swing Away Modular Offset
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

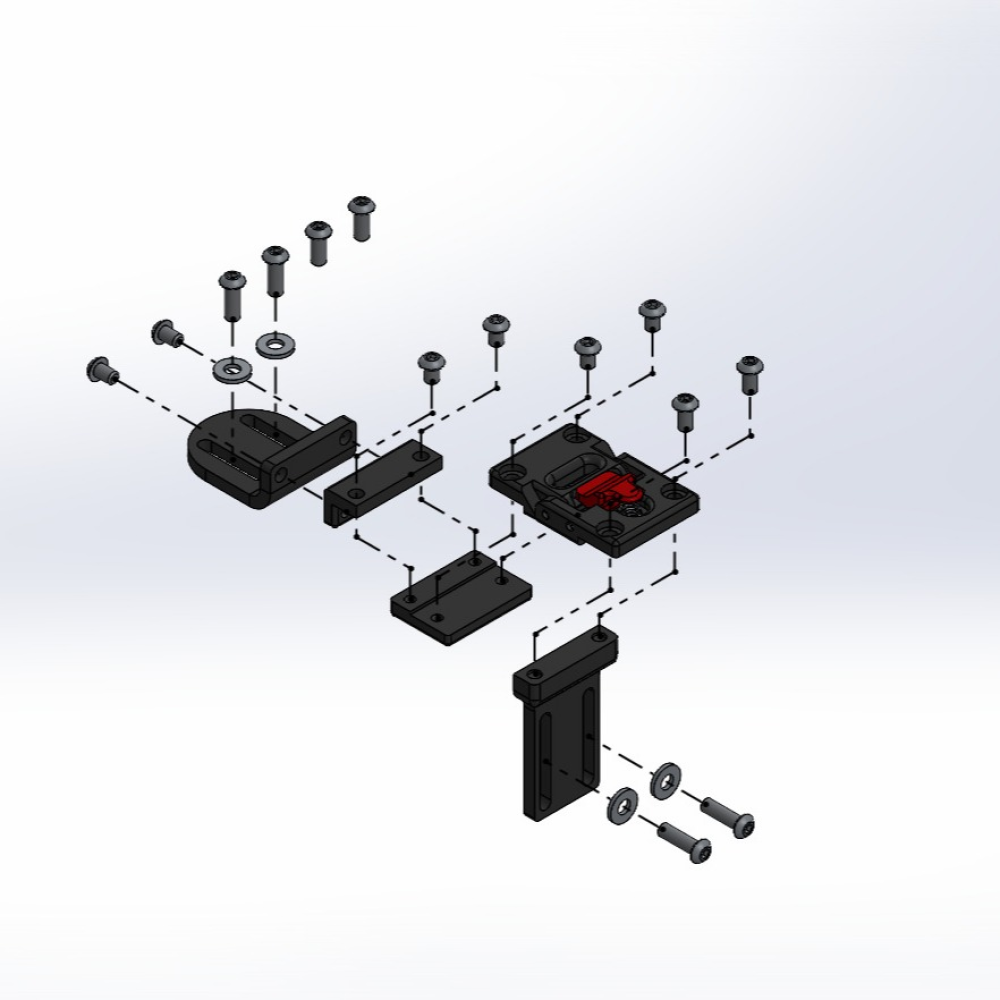

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 2, 4 - 8, 11 - 14 | 123369 | Lateral, Swing Away Modular Assy, 1" Offset Pad Mount, 90° |
$424.96
|
EA |
|
|
| 1 - 2, 4 - 7, 10 - 14 | 123370 | Lateral, Swing Away Modular Assy, 1" Offset Pad Mount, 70° |
$419.44
|
EA |
|
|
| 1, 3 - 8, 11 - 14 | 123371 | Lateral, Swing Away Modular Assy, 2" Offset Pad Mount, 90° |
$424.96
|
EA |
|
|
| 1, 3 - 7, 10 - 14 | 123372 | Lateral, Swing Away Modular Assy, 2" Offset Pad Mount, 70° |
$419.44
|
EA |
|
|
| 1.0 | 106217 | Lateral, Modular Offset Mounting Plate, 2 1/2"- For Both 1" & 2" HORIZ. OFFSET | For Both 1" & 2" HORIZ. OFFSET |
$23.46
|
EA |
|
| 2.0 | 104345 | Lateral, Modular Offset Adapter, 1" |
$82.73
|
EA |
|
|
| 3.0 | 104346 | Lateral, Modular Offset Adapter, 2" |
$82.73
|
EA |
|
|
| 4.0 | 104017 | 1/4-20 X 1/2 Stainless Button Head Cap Screw- For Both 1" & 2" HORIZ. OFFSET | For Both 1" & 2" HORIZ. OFFSET |
$3.50
|
EA |
|
| 5.0 | 104239 | Lateral, Swingaway Threaded Interface Adapter- Required for Modular Flush Pad Mounts and 1" & 2" Offset Adapter | Required for Modular Flush Pad Mounts and 1" & 2" Offset Adapter |
$27.58
|
EA |
|
| 6.0 | 104463 | Lateral, Swingaway Modular Quick Release Mount |
$183.42
|
EA |
|
|
| 7.0 | 104031 | 1/4-20 X 3/8 Stainless Button Head Cap Screw- ALL FLUSH & ADJ PAD MOUNTS ONLY | ALL FLUSH & ADJ PAD MOUNTS ONLY |
$3.50
|
EA |
|
| 8.0 | 104264 | Lateral, Planar Mount |
$55.16
|
EA |
|
|
| 9.0 | 104294 | Lateral, Modular Offset Mounting Plate, 3 1/2" |
$49.64
|
EA |
|
|
| 10.0 | 104294 | Lateral, Modular Offset Mounting Plate, 3 1/2"- Must be bent for 70° mounting | Must be bent for 70° mounting |
$49.64
|
EA |
|
| 11.0 | 104038 | 1/4-20 X 7/8 Stainless Button Head Cap Screw- For Planar Mount to Back/Seat | For Planar Mount to Back/Seat |
$1.21
|
|
|
| 12.0 | 104028 | 1/4-20 X 3/4 Stainless Button Head Cap Screw- For Wood base pad mounting | For Wood base pad mounting |
$5.82
|
EA |
|
| 13.0 | 104032 | 1/4-20 X 5/8 Stainless Button Head Cap Screw- For Metal Base Pad Mounting | For Metal Base Pad Mounting |
$2.04
|
|
|
| 14.0 | 104007 | Washer, Flat, 1/4", 18-8, BLK OX, ASME B18.22.1, N, TYPE A |
$3.37
|
EA |
|
|
| 15.0 | 104231 | Lateral, Swingaway Depth Adapter, 1"- For additional depth/height needed behind Swing Away Hinge | For additional depth/height needed behind Swing Away Hinge |
$49.98
|
EA |
|
| 16.0 | 104240 | Lateral, Swingaway Depth Adapter, 2"- For additional depth/height needed behind Swing Away Hinge | For additional depth/height needed behind Swing Away Hinge |
$56.10
|
EA |
|
| 17.0 | 104243 | Lateral, Swingaway Depth Adapter, 3"- For additional depth/height needed behind Swing Away Hinge | For additional depth/height needed behind Swing Away Hinge |
$60.18
|
EA |
|
| 18.0 | 104971 | Track Nut, 1" Spacing |
$23.46
|
EA |
|
|
| 21.0 | 104560 | Lateral, Modular Track Nut Spacer |
$13.26
|
EA |
|
