Name: Folding Growth: Catalyst 5ti Swing Away Front Frame
Manufacturer: Ki Mobility

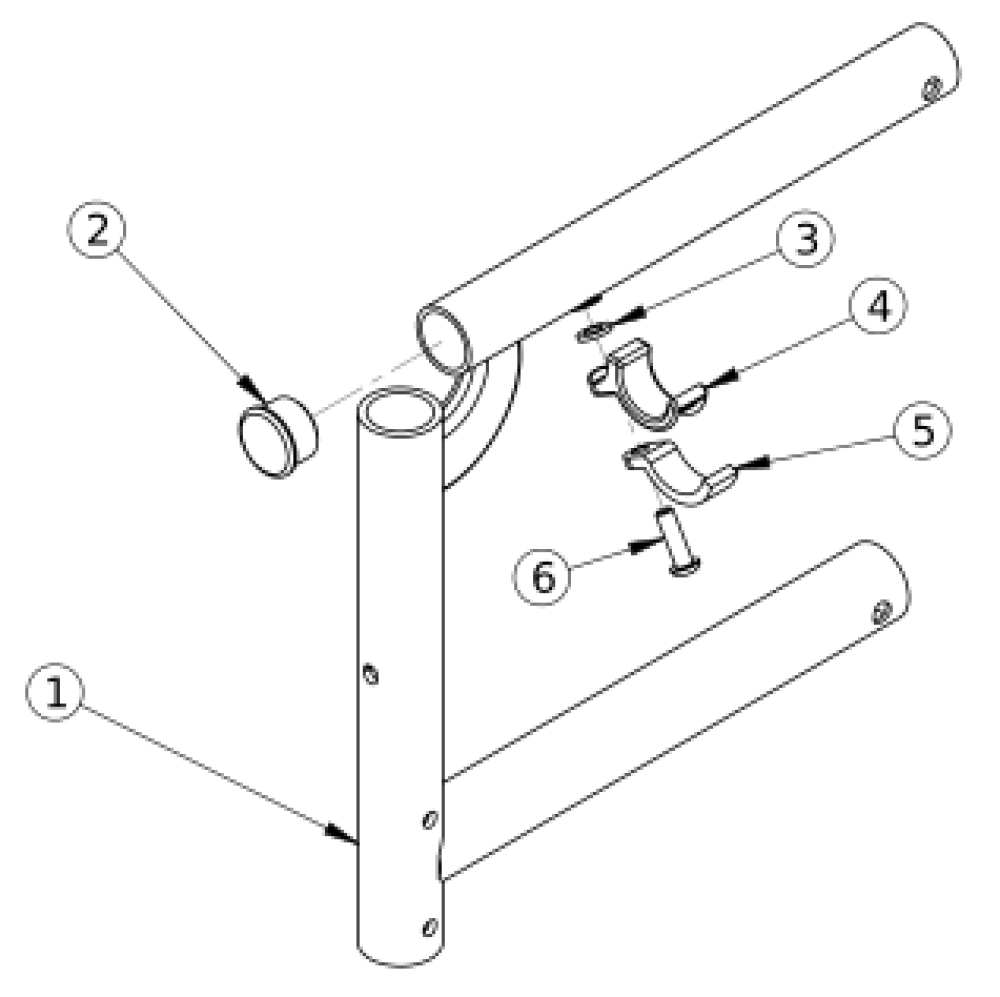

Catalyst 5ti Swing Away Front Frame parts diagram
(Click on image to enlarge)

16" and 18" seat depths use the same front frames. 17" and 19" seat depths use the same front frames. Frame assemblies are based on Seat Depth. If switching to a new Seat Depth, new Height Adjustable T-Arms or Height Adjustable Flip Back T-Arms may be needed. If chair has Flip Back or the discontinued Height Adjustable Flip Back armrests, select a frame assembly with the Flip Back Arm Modification. This modification does not apply to Height Adjustable Flip Back T-Arms. If retrofitting from a Fixed Front Frame, new caster housings and attaching hardware is required.
Pos. Part # Description Price UOM Buy
3, 4, 5, 6 501005 Seat Hook and Support Hardware Kit, Standard, Catalyst- This kit contains quantity of 1 each
$19.48
EA
1a, 2 100270 Frame Assembly, Catalyst Ti Front, Left 14
$435.04
EA
1b, 2 100271 Frame Assembly, Catalyst Ti Front, Left 15
$587.03
EA
1c, 2 100272 Frame Assembly, Catalyst Ti Front, Left 16
$587.03
EA
1d, 2 100273 Frame Assembly, Catalyst Ti Front, Left 17
$587.03
EA
1e, 2 501639 Frame Assembly, Catalyst Ti Front, Left 18
$441.78
EA
1f, 2 501640 Frame Assembly, Catalyst Ti Front, Left 19
$482.73
EA
1g, 2 100274 Frame Assembly, Catalyst Ti Front, Left 20
$587.03
EA
1h, 2 100279 Frame Assembly, Catalyst Ti Front, Right 14
$587.03
EA
1i, 2 100280 Frame Assembly, Catalyst Ti Front, Right 15
$587.03
EA
1j, 2 100281 Frame Assembly, Catalyst Ti Front, Right 16
$587.03
EA
1k, 2 100282 Frame Assembly, Catalyst Ti Front, Right 17
$587.03
EA
1l, 2 501641 Frame Assembly, Catalyst Ti Front, Right 18
$441.78
EA
1m, 2 501642 Frame Assembly, Catalyst Ti Front, Right 19
$482.73
EA
1n, 2 100283 Frame Assembly, Catalyst Ti Front, Right 20
$587.03
EA
1c, 2 114361 Frame Assembly, Catalyst Ti Front with Flip Back Arm Modification, Left 16
$587.03
EA
1d, 2 114362 Frame Assembly, Catalyst Ti Front with Flip Back Arm Modification, Left 17
$587.03
EA
1e, 2 114389 Frame Assembly, Catalyst Ti Front with Flip Back Arm Modification, Left 18
$441.78
EA
1f, 2 114390 Frame Assembly, Catalyst Ti Front with Flip Back Arm Modification, Left 19
$482.73
EA
1g, 2 114363 Frame Assembly, Catalyst Ti Front with Flip Back Arm Modification, Left 20
$587.03
EA
1j, 2 114366 Frame Assembly, Catalyst Ti Front with Flip Back Arm Modification, Right 16
$587.03
EA
1k, 2 114367 Frame Assembly, Catalyst Ti Front with Flip Back Arm Modification, Right 17
$587.03
EA
1l, 2 114391 Frame Assembly, Catalyst Ti Front with Flip Back Arm Modification, Right 18
$441.78
EA
1m, 2 114392 Frame Assembly, Catalyst Ti Front with Flip Back Arm Modification, Right 19
$482.73
EA
1n, 2 114368 Frame Assembly, Catalyst Ti Front with Flip Back Arm Modification, Right 20
$587.03
EA
2 100804 Tube End Plug 1"
$1.77
EA
3 100831 1/2" Washer OD .040" Thick
$1.77
EA
4 000003 Seat Hook, Catalyst
$8.62
EA
5 000004 Seat Hook Support, Catalyst
$7.34
EA
6 100668 M6 x 20 CLS10.9 BTN SHCS ZC w/Patch
$1.77
EA
