Jazzy 1170 Xl/1170 Xl Plus

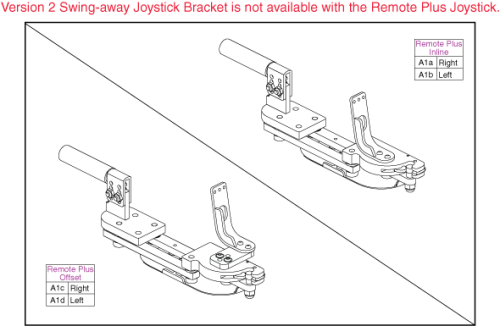

Name: Jazzy 1170 Xl/1170 Xl Plus: Complete 4" Swing-away Joystick Mounting Brackets
Manufacturer: Pride Mobility

(Click on image to enlarge)

Pos.	Part #	Description	Price	Buy
A1a	FRMASMB5290	4" SWING AWAY JOYSTICK MOUNT, INLINE, RIGHT, REMOTE PLUS	N/A	Please Call
A1b	FRMASMB5288	4" SWING AWAY JOYSTICK MOUNT, INLINE, LEFT, REMOTE PLUS	N/A	Please Call
A1c	FRMASMB5291	4" SWING AWAY JOYSTICK MOUNT, OFFSET, RIGHT, REMOTE PLUS	N/A	Please Call
A1d	FRMASMB5289	4" SWING AWAY JOYSTICK MOUNT, OFFSET, LEFT, REMOTE PLUS	N/A	Please Call
