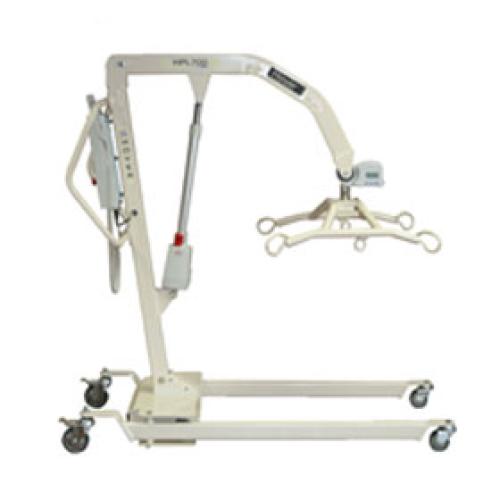

Hoyer Bariatric Patient Lifter - Power

Manufacturer: Hoyer
Part Number: HPL700-S2
Retail Price: $6,875.00
Price: $4,613.00 Ea
$4,613.00    Add to Cart

Recommended Bundles


Hoyer bariatric patient lifts are designed to lift patients up to 700 pounds.

The HPL700-S2 is a uniquely designed electronically operated patient lift for safe lifts and transfers of heavier bariatric patients.

The HPL700 has been designed to be configured with or without a weigh scale.

The weigh scale is seamlessly integrated with a digital display on both sides and user-friendly controls.

6-Point Cradle
The large, open cradle results in less discomfort to the patient caused by pinching and squeezing.

Powered Base
The powered base allows the legs to be opened and closed to enable access around armchairs, wheelchairs and similar obstacles without bending or twisting.

Power Source
The HPL700 comes standard with two batteries and a charging station. Visual and audible low-battery indicators are featured.


Product Weight: 150lbs.
Weight Capacity: 700lbs.
Maximum Overall Length: 56"
Minimum Overall Length: 55"
Maximum Overall Height: 81"
Minimum Overall Height: 57.75"
Height at Maximum Reach: 46.5"
Reach at Maximum Height: 28.5"
Reach at Minimum Height: 27"
Maximum Reach: 37.75"
Turning Radius: 62"
Legs Open - External Width: 46.25"
Legs Open - Internal Width: 42.25"
Legs Closed - External Width: 27.5"
Legs Closed - Internal Width: 23.5"
Overall Height of Legs: 4.5"
Ground Clearance: .625"
Front Twin Casters: 3"
Rear Braked Casters: 4"
Cradle Maximum Height: 69"
Cradle Minimum Height: 23.25"
