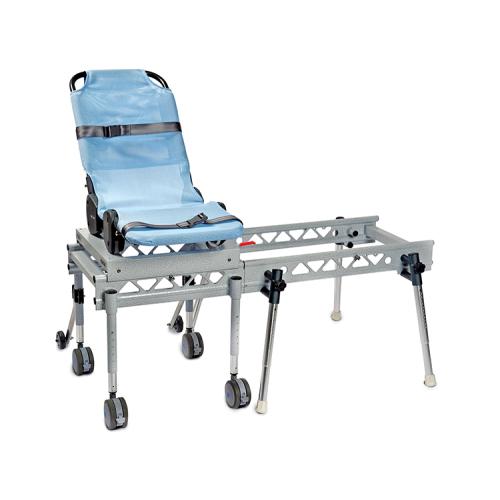

Ultima Reclining Shower/Bath Transfer System

Manufacturer:Inspired by Drive (Columbia Medical)
Part Number:BTUAF-5130M
Retail Price: $5,250.00
Price:$4,015.00 Ea

$4,015.00    Qty: Add to Cart


The Ultima Reclining Shower/Bath Transfer System meets the needs of many caregivers. Use the Ultima for transfer over the tub or in a roll-in shower. The back reclines for extra positioning. Unique locking system prevents the chair from sliding when the transfer system is disengaged.



The Ultima Bath Transfer seating system combines a mesh seating area with a stainless steel frame, and multiple adjustment angles which team to create a comfortable environment for the user along with the necessary functionality and durability the parent or caregiver desires.



Both tub bases (Foldable and Compact) are constructed with high-grade aluminum and stainless steel, which provides exceptional strength and durability. The Slider Safe Auto-Stop Safety System ensures that the chair will not come off the base.

Ease of Use

Ease of Use

Connecting the rolling base to the tub base is simple and easy. All it requires it to line up the interlocking tubes and to secure a latch. No tools are required.


Size:S/M w/ Folding BaseL/XL w/ Folding BaseS/M w/ Compact BaseL/XL w/ Compact Base
Weight Capacity:160lbs.180lbs.160lbs.180lbs.
Seat Depth:13"15"13"15"
Inside Seat Width:15"17"15"17"
Back Height:27"31"27"31"
Calf Length:13"15"13"15"
Seat Height Range:23.5" - 27.5" 23.5" - 27.5" 23.5" - 26.5" 23.5" - 26.5"
Rolling Base Dimension:21.5"W x 21"D 21.5"W x 21"D 20"W x 17"D 20"W x 17"D
Rolling Base Inside Width:16"16"17"17"
Rolling Base Height:15.5" - 19.5" 15.5" - 19.5" 15.5" - 18.5" 15.5" - 18.5"
Tub Base Width at Top:31" 31" 20" 20"
Tub Base Footprint Width:28" - 30" 28" - 30" 18"18"
Tub Base Footprint Depth:31" - 33" 31" - 33" 17"17"
Tub Base Height:13.5" - 19" 13.5" - 19" 14" - 17" 14" - 17"
Overall Length:52"52"53"53"
