Rabbit Pediatric Mobile Stander
Images

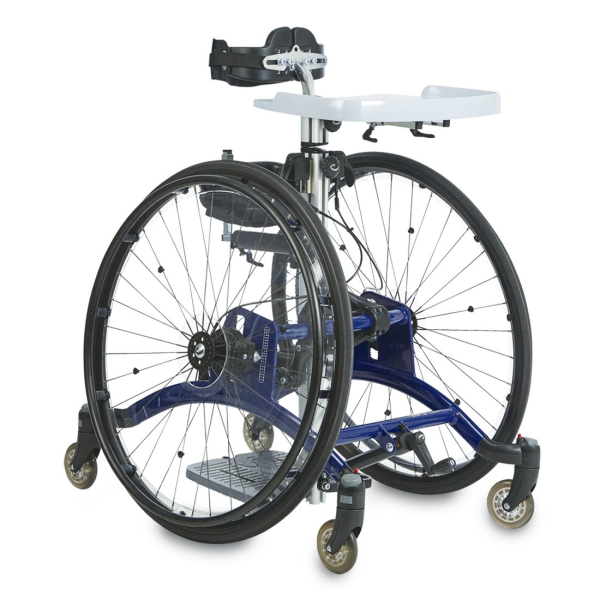

Rabbit Side View
Some images may display non-standard options.Manufacturer:R82 (formerly Snug Seat)
Part Number:
Retail Price: $2,698.00
Price:$2,095.00 Ea
Part Number:
Retail Price:
Price:$2,095.00 Ea
FREE Shipping
DESCRIPTION
The Rabbit Pediatric Mobile Stander is designed to place children in a prone to upright standing position. This dynamic pediatric stander enables the child to experience moving through space while in an upright position. The Rabbit lets children independently explore and enjoy new adventures, and participate in everyday activities at peer level.
The Rabbit Pediatric Mobile Stander is highly adjustable and can be equipped with a comprehensive range of accessories to provide extensive support and assistance including a pelvic support, side supports, head support, and more.
 Size 1 Available in Red |  Size 2 and 3 Available in Blue |  Size 4 Available in Silver |  |
| Color by size makes identification easy. | Front View<//td> | ||
SPECIFICATION
| Rabbit Mobile Stander | Size 1 | Size 2 | Size 3 | Size 4 |
| Maximum User Weight | 89 lbs (40 kg) | 111 lbs (50 kg) | 133 lbs (60 kg) | 155 lbs (70 kg) |
| Maximum Foot to Waist Measurement | 22" for 24" wheels & 24" for 26" wheels | 27" for 29" wheels & 30" for 32" wheels | 27" for 29" wheels & 30" for 32" wheels | 30" for 32 " wheels & 34" for 36" wheels |
| Approximate Maximum User Height | 45 for 24 wheels & 48 for 26 wheels | 52 for 29 wheels & 56 for 32 wheels | 52 for 29 wheels & 56 for 32 wheels | 56 for 32 wheels & 64 for 36 wheels |
| Height to Top of Trunk Support from Footrest | 22.25" - 35" (56.5-89 cm) | 29.25" - 42" (74-106.5 cm) | 33.5" - 46.5" (85-118 cm) | 41.25" - 54.25" (105-138 cm) |
| Center Bar Tilt Angle | 0 to +30 | 0 to +30 | 0 to +30 | 0 to +30 |
| Footplate Tilt Angle | +15 to -10 | +15 to -10 | +15 to -10 | +15 to -10 |
| Camber Angle | 4 | 4 | 4 | 4 |
| Weight of Unit | 29.5 lbs. (75 kg) | 34 lbs. (86.5 kg) | 35 lbs. (89 kg) | 40.5 lbs. (103 kg) |
| Hip Support Rear (WxHxL) | 6" x 4.25" x 3" (15.5x11x7.5 cm) | 8"-10.5" x 4.25" x 3" (20-27x11x7.5 cm) | 8"-10.5" x 4.25" x 3" (20-27x11x7.5 cm) | 10"-12.5" x 6.25" x 4 " (25-32x16x10.5 cm) |
| Hip Support Front (WxHxL) | 6" x 4.25" x 3" (15.5x11x7.5 cm) | 8"-10.5" x 4.25" x 3" (20-27x11x7.5 cm) | 8"-10.5" x 4.25" x 3" (20-27x11x7.5 cm) | 10"-12.5" x 6.25" x 4 " (25-32x16x10.5 cm) |
| Hip Support, De-rotation (WxHxL) | 6" x 4.25" x 3" (15.5x11x7.5 cm) | 8"-10.5" x 4.25" x 3" (20-27x11x7.5 cm) | 8"-10.5" x 4.25" x 3" (20-27x11x7.5 cm) | 10"-12.5" x 6.25" x 4 " (25-32x16x10.5 cm) |
| Chest Support (WxHxL) | 6" x 4.25" x 3" (15.5x11x7.5 cm) | 8"-10.5" x 4.25" x 3" (20-27x11x7.5 cm) | 8"-10.5" x 4.25" x 3" (20-27x11x7.5 cm) | 10"-12.5" x 6.25" x 4 " (25-32x16x10.5 cm) |
| Back Support (WxH) | 7.5" x 5" (19 x 13 cm) | 7.5" x 5" (19 x 13 cm) | 7.5" x 5" (19 x 13 cm) | 7.5" x 5" (19 x 13 cm) |
| Abdominal Support (WxH) | 7.5" x 5" (19 x 13 cm) | 7.5" x 5" (19 x 13 cm) | 7.5" x 5" (19 x 13 cm) | 7.5" x 5" (19 x 13 cm) |
| Knee Supports, Set (WxH) | 2.5" x 2.5" (6 x 6 cm) | 3.25" x 2.75" (8 x 7 cm) | 3.25" x 2.75" (8 x 7 cm) | 4" x 2.75" (10 x 7 cm) |
| Knee Supports, Hinged, Set (W) | 3" (7.5 cm) | 3.75" (9.5 cm) | 3.75" (9.5 cm) | N/A |
| Frame Length | 24.25" (61.5 cm) | 29.5" (75 cm) | 29.5" (75 cm) | 33.25" (84.5 cm) |
| Frame Width | 22.5" (57 cm) | 26.5" (67.5 cm) | 27" (68.5 cm) | 27.25" (69 cm) |
| Maximum Frame Height | 39" (99 cm) | 46" (117 cm) | 51" (129.5 cm) | 59.75" (152 cm) |
| Flip-up Footplate (WxL) | 11.75" x 12.25" (31 x 30 cm) | 17" x 14.25" (43 x 36 cm) | 17" x 14.25" (43 x 36 cm) | 17" x 14.25" (43 x 36 cm) |
| Hinged Sandals, For Footplate, Set (WxL) | 3.75" x 8 " (9.5 x 20 cm) | 4.5" x 9.5 " (11.5 x 24 cm) | 4.5" x 9.5 " (11.5 x 24 cm) | N/A |
| Separate Footrests with Hinged Sandals, Set (WxL) | 3.75" x 8 " (9.5 x 20 cm) | 4.5" x 9.5 " (11.5 x 24 cm) | 4.5" x 9.5 " (11.5 x 24 cm) | 5" x 11.5 " (13 x 29 cm) |
| Heel Stops , Set (WxH) | 4" x 1.5" (10 x 4 cm) | 4" x 1.5" (10 x 4 cm) | 4" x 1.5" (10 x 4 cm) | 4" x 1.5" (10 x 4 cm) |
| Tray Dimensions (WidthXHeight) | 12.25" x 3.5" (31 x 9 cm) | 12.25" x 3.5" (31 x 9 cm) | 12.25" x 3.5" (31 x 9 cm) | 12.25" x 3.5" (31 x 9 cm) |
