Impulse 3000T Analog Tens Unit With Timer
Images

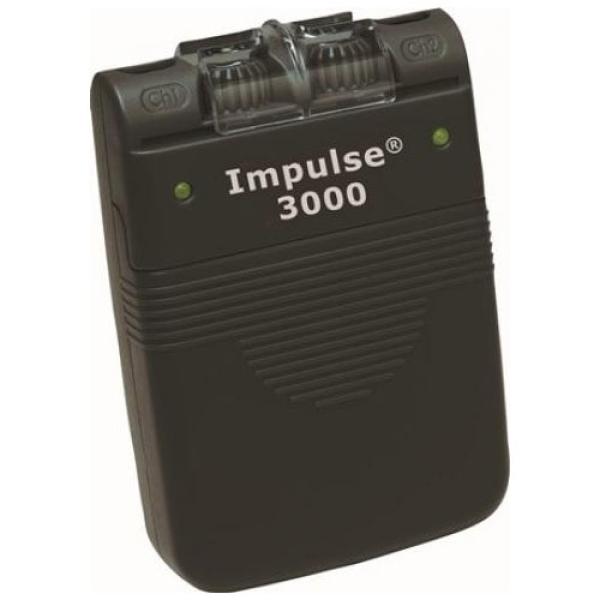

Impulse 3000T Analog Tens Unit With Timer
Some images may display non-standard options.Part Number: FAKIM3T
Price: $83.90 Ea
DESCRIPTION
The new ergonomically designed device has the same parameters as its predecessor; adjustable pulse rate and pulse width, and has three modes of operation; constant, width modulation, and burst. This TENS unit with timer is perfect for those seeking timed sessions. The new design of the device incorporates a sliding amplitude control cover for safety, and a permanently attached 9 volt battery cover to prevent loss.
The 9 volt battery compartment has been redesigned for simple insertion and removal of the battery. To provide comfort while wearing, the belt clip has been positioned horizontally. The device was designed to be easy to use and economically priced for the patient.
Device comes with lead wires, electrodes (4), batteries, instruction booklet and carrying case.
SPECIFICATION
| Dimensions: | 3.9" x 2.75" x 1" (99mm x 70mm x 25mm) |
| Weight: | 4.6 oz (132 g) |
| Power Source: | 9V Battery, E-block, type 6F22 |
| Channels: | Dual |
| Waveform: | Asymmetrical, biphasic square-wave |
| Frequency: | 2-150 Hz (Hertz or pps) |
| Impulse Width: | |
| Output: | Constant Current |
| Continuous: | Continuous stimulation |
| Burst: | 8 pulses per burst/2 bursts per second |
| Modulation: | Decrease/increase of set width of 50% over a five-second period |
| Number of electrodes/Leadwires: | 4 |
| Tolerances: | +/- 10% |
| Timer: | Continuous, 15, 30, 60 |
