JAY Focus Point Back

Manufacturer:Jay / Sunrise Medical
Part Number:FPBXXXX
Retail Price: $789.00
Price:$589.00 Ea
Part Number:FPBXXXX
Retail Price:
Price:$589.00 Ea
DESCRIPTION

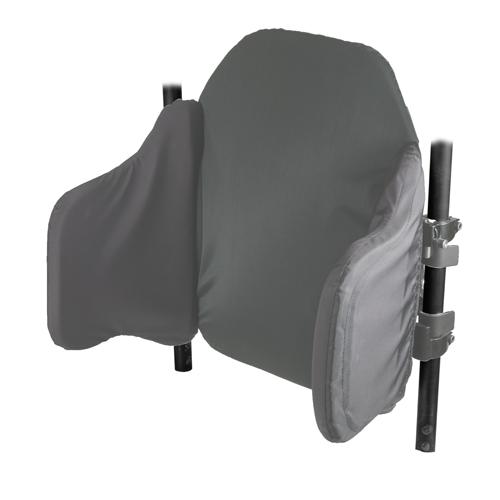

JAY Focus Point wheelchair back is a three piece contoured designed backrest that features a rib reinforced contoured aluminum shell and two multi-adjustable lateral wings.
The foam is contoured and features a pelvic wedge that can be placed in multiple positions for posterior pelvic support. The adjustability of the back is what allows the patient to be "squeezed" into position to provide the best lateral and posterior support for their body type.
![]() | 65° of Angle Adjustability Four point mounting hardware allows for simple installation. Hardware allows for seat to back angle adjustment to suit most hip to back angles. |
![]() | Adjustable Deep Lateral Support Jay Focus Point backs have 6" deep laterals to provide maximum lateral support. Each lateral can be adjusted individually to provide a custom and specific support system. |
![]() | Scapular Cut Outs & Headrest Mount The Focus Point back shell angles inward at the shoulder blades to minimize interference with the upper extremities for maximum range of motion. Additionally, includes universal headrest mount that accommodates most all headrests and mounting hardware. |
SPECIFICATION
Width Range: | 14 in. - 21 in. | |
Height: | 14 in. - 20 in. | |
Weight | Approx. 8.69 lbs | |
Lateral Depth: | 6" | |
Frame Tubing Compatibility: | 7/8", 1", or 1 1/8" | |
Shipping box dimensions | 12 x 22 x 24 Approx | |
Weight Capacity: | 250 lbs | |
-------------------- | ||
Style | Chair Width | Back Height |
Standard | 14" - 15" | 14" |
Tall | 14" - 15" | 17" |
Standard | 16" - 17" | 15" |
Tall | 16" - 17" | 18" |
Standard | 18" - 19" | 16" |
Tall | 18" - 19" | 19" |
Standard | 20" - 21" | 17" |
Tall | 20" - 21" | 20" |
