Activeaid 202 Shower / Bath Chair - Modular System

Part Number: 202
Retail Price:
Price: $615.00 Ea
DESCRIPTION

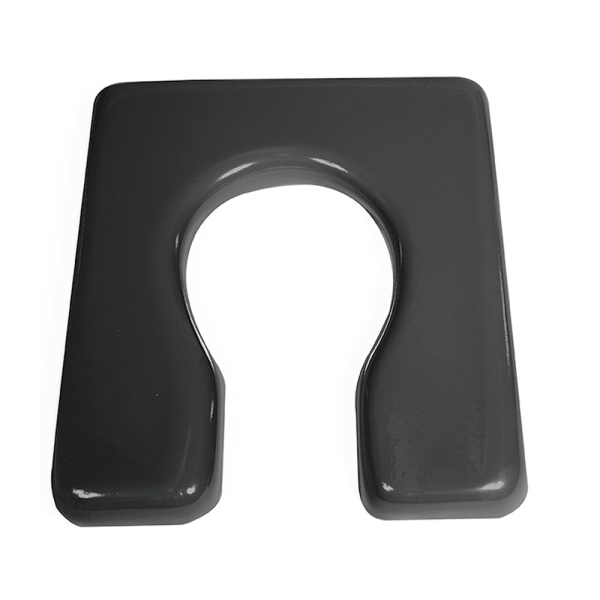

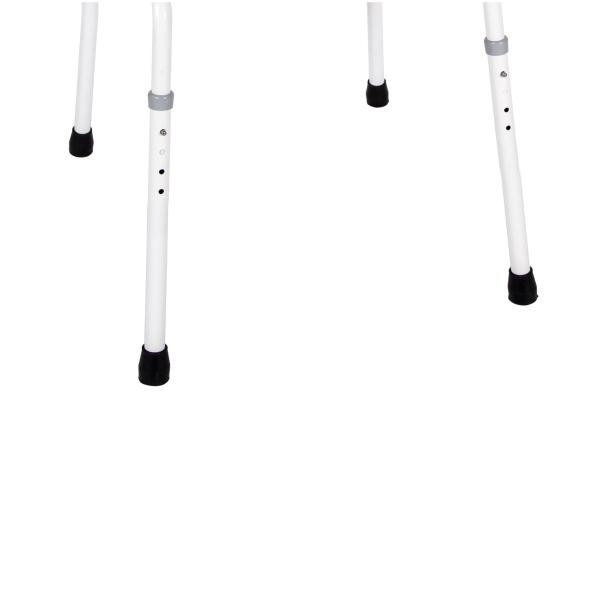

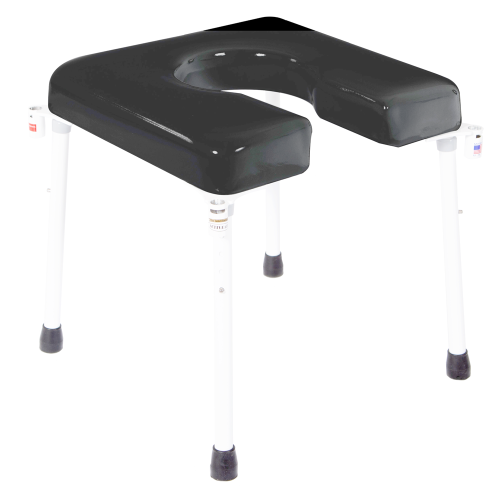

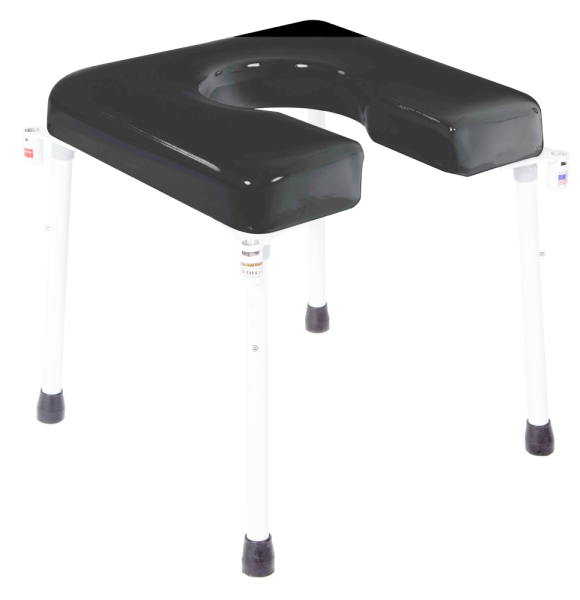

ActiveAid 202 shower / bath chair is a customizable bath / shower chair. Base unit includes white stainless steel frame, adjustable legs with crutch style tips, and 1" Ensolite padded seat with open front. Seat can be mounted forward, rearward or sideways opening.

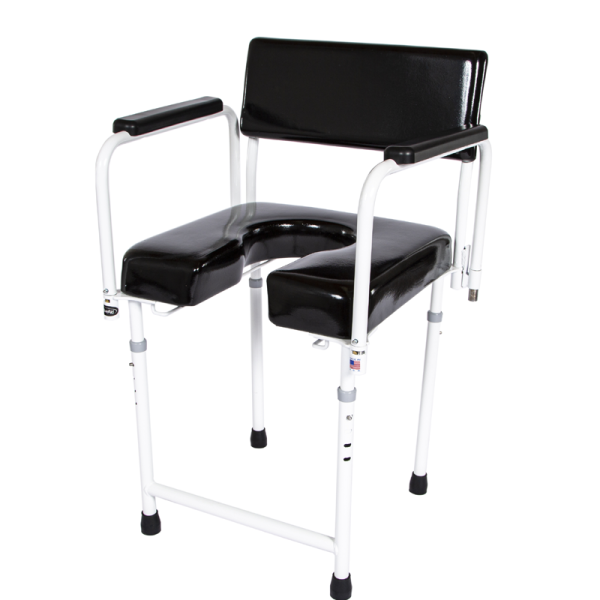

Select additional options such as armrests, backrest, or transfer extensions to meet users specific needs.
The densely padded seat has a cut-out that can be positioned to the front or back. Foam is configured in a unique "Waterfall" style that addresses pressure problems caused from sensitive tissue coming in contact with unforgiving surfaces. The open frame system not only affords unimpeded directional seat placement but also allows the optional back and armrests to be correctly positioned without restriction and without tools. Add transfer seat options to accommodate tub transfers.
The 350-pound capacity frame is created from high-quality stainless steel that provides a strong, durable, non-corrosive product. The name hints at what this product is intended to do. That is give maximum aid in one versatile product. It can be an adjustable height toilet seat, a toilet safety frame, a shower bench or a transfer bench. The modular design lets you decide.
Always measure your bathtub width in the base of the tub to ensure a proper fit.
SPECIFICATION
Seat Width | 18″ |
Weight Capacity | 350lbs. |
Width Between Arm Rests – Standard with Pad | 18″ |
Seat Depth | 18″ |
Seat Height From Floor to Top of Seat – Crutch Tip Legs | 19.5″ – 22.5″ |
Arm Height from Top of Seat – Standard with Pad | 8″ |
Back Height from Top of Seat | 13.25″ |
Gap Between Top of Seat and Bottom of Back | 5.25″ |
Seat to Back Angle | 10° |
Under Seat Height Clearance – Crutch Tip Legs | 16″ – 19″ |
Under Seat Width Clearance | 15″ |
Overall Width at Seat Level | 19.5″ |
Overall Width at Crutch Tips | 17.5″ |
Overall Width w/ Back | 22.25″ |
Overall Width w/ Bench | 30.5″ |
Overall Width w/ B/O Bench | 36.5″ |
Overall Depth w/ Back | 21.5″ |
Overall Depth w/o Back | 19.5″ |
Back of Unit to Start of Commode Opening w/ Back | 7.25″ |
Back of Unit to Start of Commode Opening w/o Back | 5.25″ |
Seat Used to Generate Specifications | #60913 18″ x 18″ x 3″ Thick |
BO Transfer Bench Cushion Size | 14″ x 20″ |
BO Transfer Bench – Height Adjustment | 4″ |
BO Transfer Bench – Top of Seat to Bottom of Crutch Tip | 18.5″ – 22.5″ |

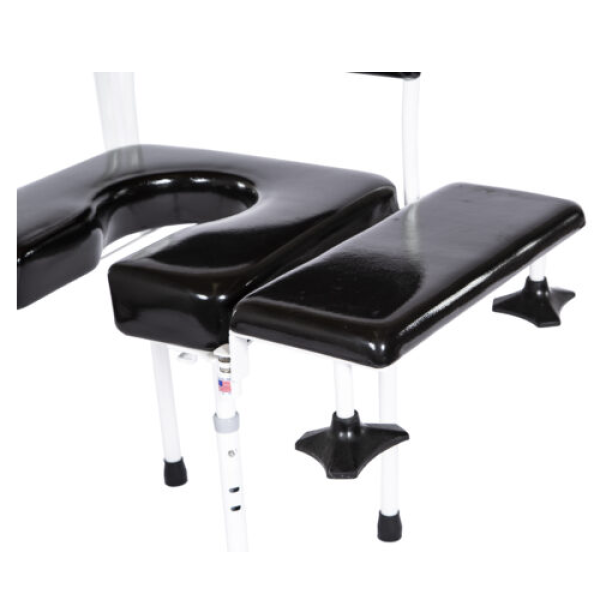

Short Transfer Bench Cushion Size | 8″ x 20″ |
Short Transfer Bench – Height Adjustment | 1.75″ |
Short Transfer Bench – Top of Seat to Bottom of Bench Feet | 6.75” – 8.5” |
