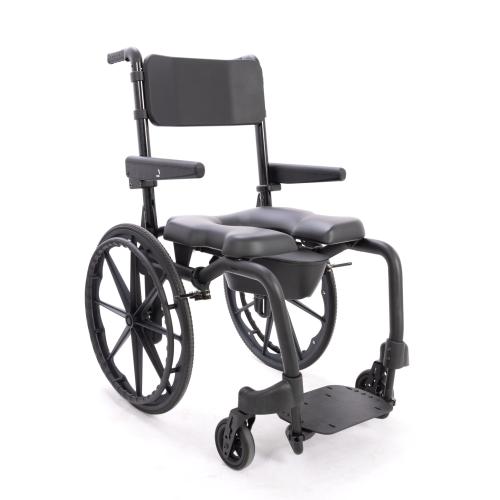

ActiveAid SC Shower Commode Chair

Manufacturer: ActiveAid
Part Number: SC
Price: $2,350.00 Ea



















$2,350.00    Add to Cart

DESCRIPTION

Revolutionizing the Shower Commode Chair Experience


Meet the ActiveAid SC a sleek, self-propelled shower commode chair that reimagines what mobility and hygiene equipment can be. Far from the bulky, clinical look of traditional models, the SC features a streamlined frame thats as functional as it is refined. Its ultra-narrow profile, compact footprint, and modular design break boundaries, allowing effortless access through tight doorways and cramped bathrooms no compromises needed. With slim-profile wheels and ergonomic hand rims, maneuverability meets sophistication. Every detail is engineered to adapt from the frame and wheels to positioning components ensuring a truly customized fit for every user.

SPECIFICATION

Description 16" Wide Seat 18" Wide Seat 20" Wide Seat
Weight limit 310 lbs. 310 lbs. 310 lbs.
Weight of basic unit 49 lbs. 49 lbs. 49 lbs.
Overall width (including hand rims) 23.5" 25.5" 27.5"
Width between arm rests 16.25" 18.25" 20.25"
Under seat width clearance at axle 12.625" 14.625" 16.625"
Under seat width clearance at axle plate 14.125" 16.125" 18.125"
Under seat height clearance (short front tubes/axle plates, 0" dump) 17"-18.75" 17"- 18.75" 17"- 18.75"
Under seat height clearance (long front tubes/axle plates, 0" dump) 19" – 20.75" 19" – 20.75" 19" – 20.75"
Wheel diameters 20", 22", 24" 20", 22", 24" 20", 22", 24"
Minimum depth without footrests (20" Wheels) 27.5" 29.5" 31.5"
Minimum depth without footrests (22"wheels) 28.5" 30.5" 32.5"
Minimum depth without footrests (24" wheels) 29.5" 31.5" 33.5"
Maximum depth without footrests (20" wheels) 30.25" 32.25" 34.25"
Maximum depth without footrests (22" wheels) 31.25" 33.25" 35.25"
Maximum depth without footrests (24" Wheels) 32.25" 34.25" 36.25"
Footplate dimensions (single piece fixed/adjustable) 9.5" X 8.438" 11.5" X 8.438" 13.5" x 8.438"
Seat height range from floor to top of seat 20" – 23.75" 20" – 23.75" 20" – 23.75"
Maximum seat dump 1.5" 1.5” 1.5"
Seat fore/aft adjustment 2" 2" 2"
Axle fore/aft adjustment 2.75" 2.75" 2.75"
Back of unit to start of the commode opening (20" wheels, seat all the way back) 12.75" 12.75" 12.75"
Back of unit to start of the commode opening (22" wheels, seat all the way back) 13.75" 13.75" 13.75"
Back of unit to start of the commode opening (24" wheels, seat all the way back) 14.75" 14.75" 14.75"
Turning diameter 22" 23.5" 25"
Armrest height from top of seat 5.5" -12" 5.5" – 12" 5.5" – 12"
Leg rest range (single piece fixed/adjustable, short front tubes) 15.75" -17.75" 15.75" -17.75" 15.75" -17.75"
Leg rest range (single piece fixed/adjustable, long front tubes) 17.75" -19.75" 17.75" -19.75" 17.75" -19.75"
Leg rest range (gooseneck, short front tubes) 15" – 23" 15" – 23" 15" – 23"
Leg rest range (gooseneck, long front tubes) 15" – 25" 15" -25" 15" – 25"
Leg rest range (flip-up, short front tubes) 15.5" -17.5" 15.5" -17.5" 15.5" -17.5"
Leg rest range (flip-up, long front tubes) 17.5" -19.5" 17.5" -19.5" 17.5" -19.5"
Back height from top of seat (0" dump) 7.75" -16" 7.75" -16" 7.75" -16"
Gap between top of seat and bottom of back (0" dump) 0" -8.25" 0" -8.25" 0" -8.25"
Back angles with angle-adjustable back 0°, 7°, 14° 0°, 7°, 14° 0°, 7°, 14°
Back angle with fixed back 7° 7° 7°
Under seat height clearance (short front tubes/axle plates, without commode pan,0" dump) 17"-18.75" 17"-18.75" 17"-18.75"
Under seat height clearance (long front tubes/axle plates, without commode pan, 0" dump) 19" – 20.75" 19" – 20.75" 19" – 20.75"
Under seat height clearance (short front tubes, 011 dumo, flush mount) 10.25" -14" 10.25" -14" 10.25" -14"
Under seat height clearance (long front tubes, 0" dump, flush mount) 12.25" -16" 12.25" – 16" 12.25" – 16"
