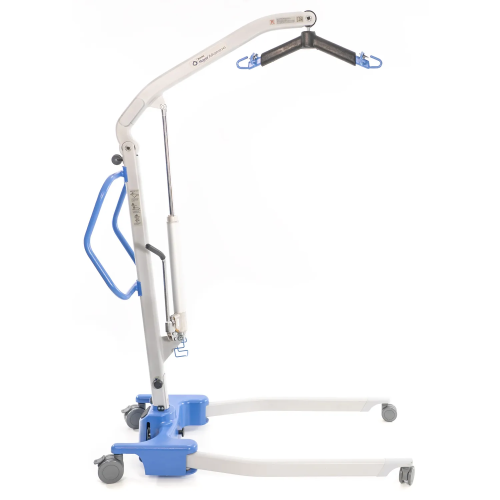

The Advance patient lift from Hoyer represents a true step forward in patient lift design and performance. Portable folding design makes the Advance patient lift not only ideal for use in the home, but also an easy to transport travel patient lift.
Advance patient lifts use the very latest design and manufacturing technologies to ensure the Advance is the most functional and stylish lift in its class today.
Unique characteristics include: Oversized handle for increased control; Push footpad reduces the force needed to initiate movement; Foot operated leg spreading mechanism requires no bending to operate.
The Hoyer Advance can also be folded, or separated for transportation. Unlike other products on the market the Advance needs NO tools or special attachments to achieve its compact / folded position (Power Model Shown).
|Mast Base & Boom Assembly Weight:||64 lbs.|
|Power Pack Weight:||5 lbs.|
|Base Assembly Weight:||33lbs.|
|Boom Weight:||31 lbs.|
|Product Length/Depth (Maximum):||51"|
|Product Length/Depth (Minimum):||49"|
|Product Height (Maximum):||71"|
|Product Height (Minimum):||23"|
|Folded Dimensions:||17.7" High x 46.5" Deep x 21.6" Wide|
|Spreader Bar Max. Height:||5' 4.5"|
|Spreader Bar Min Usable Height:||1' 3"|
|Spreader Bar Height @ Max Reach:||3' 9"|
|Spreader Bar Reach @ Max Height:||2' 4"|
|Spreader Bar Reach @ Min Height:||1' 7"|
|Spreader Bar Max. Reach:||2' 9"|
|Spreader Bar Turning Radius:||3' 5"|
|Leg Open External Width:||42.5"|
|Leg Open Internal Width:||39.5"|
|Leg Closed External Width:||25"|
|Leg Closed Internal Width:||22"|
|Overall Height of Legs:||4.5"|
|Casters:||3.3" Front, 4" Rear (Braked)|
|Sling Use Type:||Hoyer Grey Looped|
|Weight Capacity:||340 lbs.|
