Quickie Nitrum

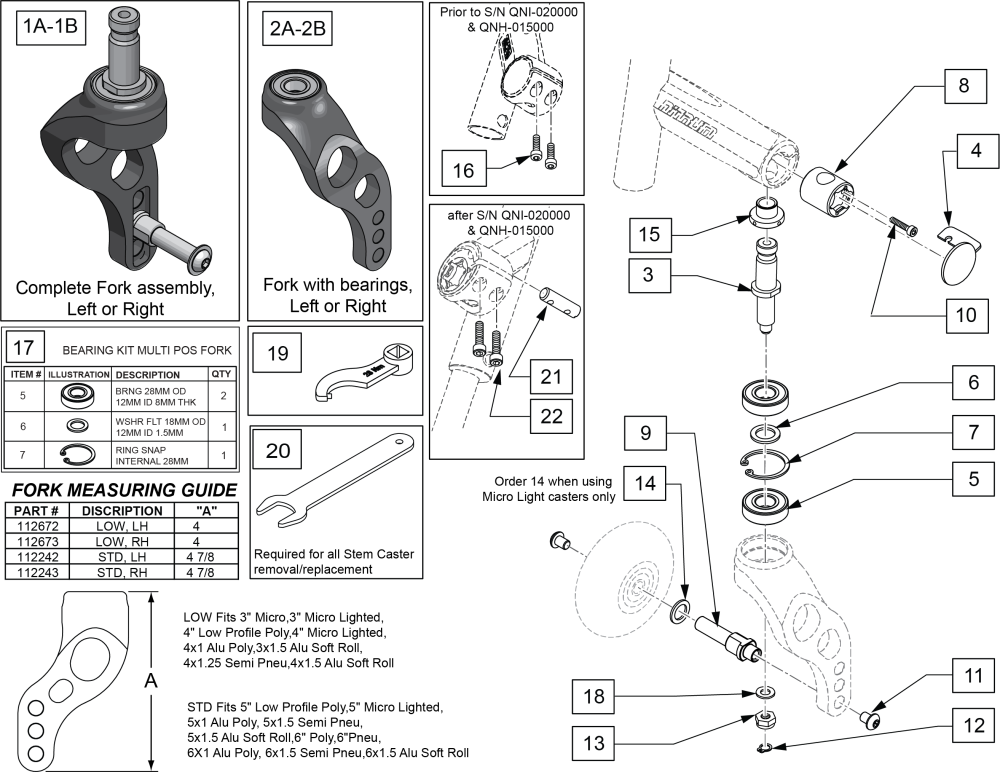

Name: Quickie Nitrum: Single Sided Fork Multiple Position
Manufacturer: Sunrise Medical
(Click on image to enlarge)
Manufacturer: Sunrise Medical
Part Picture
(Click on image to enlarge)
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1A | 164549 | FORK SS LOW L ASSM- Left | Left |
$334.00
|
EA |
|
| 1A | 164550 | FORK SS LOW R ASSM- Right | Right |
$327.00
|
EA |
|
| 1B | 164551 | FORK SS STD L ASSM- Left | Left |
$355.00
|
EA |
|
| 1B | 164552 | FORK SS STD R ASSM- Right | Right |
$460.00
|
EA |
|
| 2A | 112672S | ASSM FORK LOW SNGL SD LH W/BRG- Black | Black |
$220.00
|
EA |
|
| 2A | 112673S | ASSM FORK LOW SNGL SD RH W/BRG- Black | Black |
$220.00
|
EA |
|
| 2B | 112242S | ASSM FORK STD SNGL SD LH W/BRG- Black | Black |
$252.00
|
EA |
|
| 2B | 112243S | ASSM FORK STD SNGL SD RH W/BRG- Black | Black |
$252.00
|
EA |
|
| 2C | 117176S | FORK SNGL LOW CSTM ANO L- Choose custom anodized color | Choose custom anodized color |
$440.00
|
EA |
|
| 2C | 117177S | FORK SNGL LOW CSTM ANO R- Choose custom anodized color | Choose custom anodized color |
$440.00
|
EA |
|
| 2D | 117178S | FORK SNGL STD CSTM ANO L- Choose custom anodized color | Choose custom anodized color |
$490.00
|
EA |
|
| 2D | 117179S | FORK SNGL STD CSTM ANO R- Choose custom anodized color | Choose custom anodized color |
$490.00
|
EA |
|
| 11 | 103185-005 | BHCS M6X0.8X12 W/PL INORG |
$8.00
|
EA |
|
|
| 14 | 106947 | WASHER FLAT THIN AN 5/16 ROHS |
$7.00
|
EA |
|
|
| 16 | 112341 | SHCS, M5X.8X16, FULL, PL |
$8.00
|
EA |
|
|
| 17 | 159434 | BEARING KIT MULTI POS FORK |
$33.00
|
EA |
|
|
| 9, 11, 14 | 159437 | AXLE KIT SINGLE SIDE FORK |
$62.00
|
EA |
|
|
| 4, 8, 10 | 164544 | FORK BARREL ADJ KIT - RH & LH- Pair | Pair |
$52.00
|
EA |
|
| 3, 12, 13, 15, 18 | 164542 | FORK STEM & PIN KIT LH- Left | Left |
$52.00
|
EA |
|
| 3, 12, 13, 15, 18 | 164543 | FORK STEM & PIN KIT RH- Right | Right |
$52.00
|
EA |
|
| 19 | 66009203 | TORQUE WRENCH WELDING- Required for fork adjustment | Required for fork adjustment |
$53.00
|
EA |
|
| 20 | 66009205 | SPANNER WRENCH AF18- Required for fork adjustment | Required for fork adjustment |
$21.00
|
EA |
|
| 21 | 66001011 | ROUND NUT | N/A | EA | Please Call | |
| 22 | 112697 | "SHCS, M5X0.8X20, FULL, PL" |
$8.00
|
EA |
|
