Manual Elr Ext Tube » Double D Footrest Extension Tube "old Style"

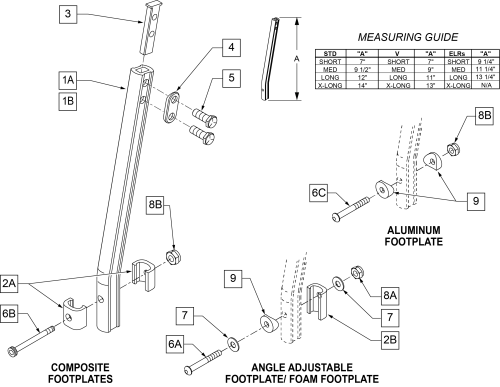

Double D Footrest Extension Tube
(Click on image to enlarge)

NOTE: DISCONTINUED - PARTS ONLY ON GP SWNG-AWAY BEGINNING 4/4/15 & S/N GP-95902, KIDS Q2 SE BEGINNING 4/16/15 & S/N QKE-003425, LX BEGINNING 10/24/2008 & S/N LX-034330, LXI BEGINNING 4/25/15 & S/N LXI-060868, QTS BEGINNING 5/15/15 & S/N QT-044951, QTS SE BEGINNING 5/15/15 & S/N QTE-002092NOTE: IF REPLACING AN EXTENSION TUBE ON AN MANUAL ALR PLEASE REFER TO THE ROUND EXT TUBE PARTS MANUAL PAGE.NOTE: WHEN ORDERING REPLACEMENT EXTENSION TUBES PLEASE VERIFY IF YOU HAVE THE OLD STYLE DOUBLE D EXTENSION TUBE OR THE NEW STYLE DOUBLE D EXTENSION TUBE. THIS CAN BE DONE BY REVIEWING THE HANGER THE EXTENSION TUBE IS USED ON. IF THE HANGER UTILIZES A SINGLE SET SCREW AT THE BOTTOM OF THE HANGER TUBE TO ATTACH THE EXTENSION TUBE TO THE HANGER, THEN THIS UTILIZES THE NEW STYLE DOUBLE D EXT TUBE. ALL OTHER HANGERS REQUIRING A DOUBLE D EXTENSION TUBE UTILIZE THE OLD STYLE.
Pos.Part #DescriptionRemarksPriceBuy
1A550819EXT TBE S/A ONLY SHTShort Ext-Swing Away Hanger
$13.24
1A550820EXT TBE S/A ONLY MEDMed Ext-Swing Away Hanger
$13.24
1A550821EXT TBE S/A ONLY LONGLong Ext-Swing Away Hanger
$13.24
1A550822EXT TUBE S/A ONLY X-LONGX-Long Ext-Swing Away Hanger
$13.24
1B550834EXT TBE INVIN ONLY D2 SHT RRight Short Ext-Swing Away Hanger
$15.00
1B550835EXT TBE INVIN ONLY D2 SHT LLeft Short Ext-Swing Away Hanger
$15.00
1B550836EXT TBE INVIN ONLY D2 MED RRight Med Ext-Swing Away Hanger
$15.00
1B550837EXT TBE INVIN ONLY D2 MED LLeft Med Ext-Swing Away Hanger
$15.00
1B550838EXT TBE INVIN ONLY D2 LNG RRight Long Ext-Swing Away Hanger
$15.00
1B550839EXT TBE INVIN ONLY D2 LNG LLeft Long Ext-Swing Away Hanger
$15.00
1B550840EXT TUBE V IN ONLY D2 X-LONG RRight X-Long Ext-Swing Away Hanger
$30.00
1B550841EXT TUBE V IN ONLY D2 X-LONG LLeft X-Long Ext-Swing Away Hanger
$30.00
2A483718HANGER EXTENSION SADDLEUSE W/ COMPOSITE FTPLT
$12.00
2B483720HANGER EXTENSION SADDLE LONGUSE W/ ANGLE ADJ FTPLT
$12.00
3500078INSERT D2 EXT TUBE
$4.50
4483717HANGER SADDLE
$4.50
52211021/4-28 x 3/4 HEX HEAD C/S BLK W/PTCH
$4.50
6A106962BHCS 1/4-28 X 1-3/4 ROHSUSE W/ ANGLE ADJ FTPLT
$6.50
6B2261651/4 - 28 x 2 1/2 SOC C/SUSE W/ COMPOSITE FTPLT
$4.50
6C2261471/4 -28 x 1/85 BH C/S BLK ZN
$4.50
71069451/4 SAE WASHER
$4.50
8A106941NUT AUTOMATION 1/4 -28 ROHSUSE W/ ANGLE ADJ FTPLT
$6.50
8B106935NUT NYLOCK THIN 1/4-28 ROHSUSE W/ COMPOSITE FTPLT
$6.50
95610553/4" SADDLE 1" ODUSE W/ ANGLE ADJ FTPLT
$4.50
1A, 2A - 5921759EXT TUBE S/A SHT ASSM PCKTUSE W/ COMPOSITE FTPLT
$23.46
1A, 2A - 5921760EXT TUBE S/A MED ASSM PCKTUSE W/ COMPOSITE FTPLT
$23.46
1A, 2A - 5921761EXT TUBE S/A LONG ASSM PCKTUSE W/ COMPOSITE FTPLT
$25.00
1A, 2A - 5921762EXT TUBE S/A X-LONG ASSM PCKTUSE W/ COMPOSITE FTPLT
$27.00
1B, 2A - 5921751EXT TUBE "V" D2 SHT R ASSM PCKTRIGHT - USE W/ COMPOSITE FTPLT V HANGER
$23.46
1B, 2A - 5921752EXT TUBE "V" D2 SHT L ASSM PCKTLEFT - USE W/ COMPOSITE FTPLT V HANGER
$23.46
1B, 2A - 5921753EXT TUBE "V" D2 MED R ASSM PCKTRIGHT - USE W/ COMPOSITE FTPLT V HANGER
$25.00
1B, 2A - 5921754EXT TUBE "V" D2 MED L ASSM PCKTLEFT - USE W/ COMPOSITE FTPLT V HANGER
$23.46
1B, 2A - 5921755EXT TUBE "V" D2 LONG R ASSM PCKTRIGHT - USE W/ COMPOSITE FTPLT V HANGER
$26.00
1B, 2A - 5921756EXT TUBE "V" D2 LONG L ASSM PCKTLEFT - USE W/ COMPOSITE FTPLT V HANGER
$25.00
1B, 2A - 5921757EXT TUBE "V" D2 X-LONG R ASSM PCKTRIGHT - USE W/ COMPOSITE FTPLT V HANGER
$29.00
1B, 2A - 5921758EXT TUBE "V" D2 X-LONG L ASSM PCKTLEFT - USE W/ COMPOSITE FTPLT V HANGER
$31.00
1A, 2A - 7, 9921772EXT TUBE S/A SHT ANG ADJ PCKTUSE W/ ANGLE ADJ FTPLT
$23.46
1A, 2A - 7, 9921773EXT TUBE S/A MED ANG ADJ PCKTUSE W/ ANGLE ADJ FTPLT
$26.46
1A, 2A - 7, 9921774EXT TUBE S/A LONG ANG ADJ PCKTUSE W/ ANGLE ADJ FTPLT
$23.46
1A, 2A - 7, 9921775EXT TUBE S/A X-LONG ANG ADJ PCKTUSE W/ ANGLE ADJ FTPLT
$23.46
1B, 2A - 7, 9921764EXT TUBE "V" D2 SHT R ANG ADJ PCKTRIGHT - USE W/ ANGLE ADJ FTPLT V HANGER
$23.46
1B, 2A - 7, 9921765EXT TUBE "V" D2 SHT L ANG ADJ PCKTLEFT - USE W/ ANGLE ADJ FTPLT V HANGER
$23.46
1B, 2A - 7, 9921766EXT TUBE "V" D2 MED R ANG ADJ PCKTRIGHT - USE W/ ANGLE ADJ FTPLT V HANGER
$23.46
1B, 2A - 7, 9921767EXT TUBE "V" D2 MED L ANG ADJ PCKTLEFT - USE W/ ANGLE ADJ FTPLT V HANGER
$23.46
1B, 2A - 7, 9921768EXT TUBE "V" D2 LONG R ANG ADJ PCKTRIGHT - USE W/ ANGLE ADJ FTPLT V HANGER
$23.46
1B, 2A - 7, 9921769EXT TUBE "V" D2 LONG L ANG ADJ PCKTLEFT - USE W/ ANGLE ADJ FTPLT V HANGER
$23.46
1B, 2A - 7, 9921770EXT TUBE "V" D2 X-LONG R ANG AD PCKTRIGHT - USE W/ ANGLE ADJ FTPLT V HANGER
$24.00
1B, 2A - 7, 9921771EXT TUBE "V" D2 X-LONG L ANG AD PCKTLEFT - USE W/ ANGLE ADJ FTPLT V HANGER
$32.00
