Custom Seating
Name: Custom Seating: Linx Headrest
Manufacturer: Sunrise Medical
(Click on image to enlarge)
Manufacturer: Sunrise Medical

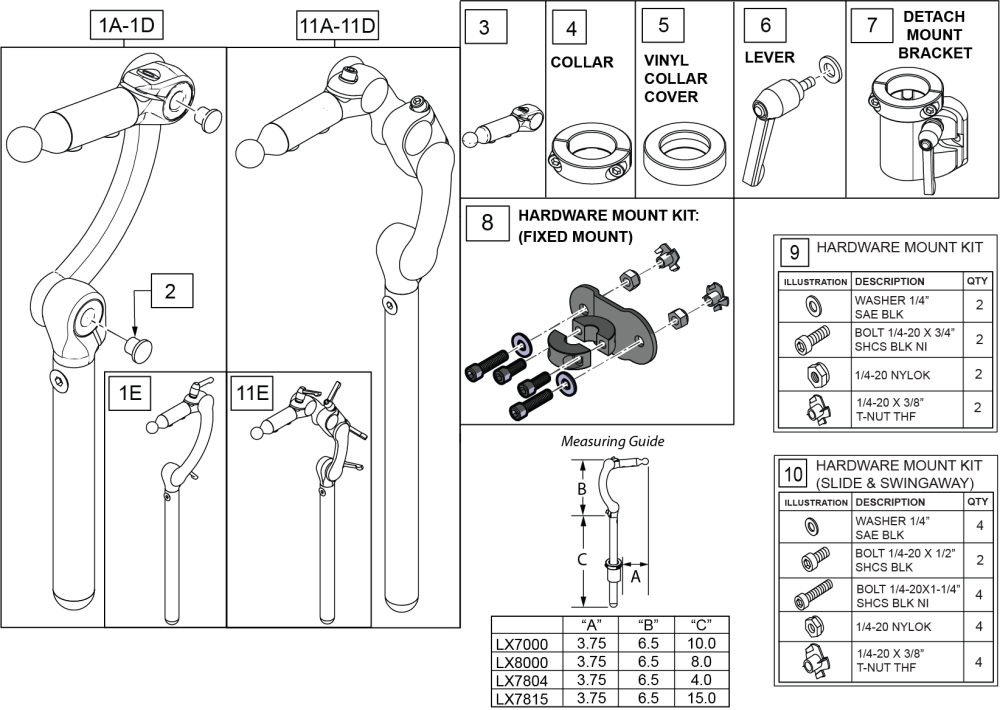

Part Picture
(Click on image to enlarge)
Note: if using the Headrest Post on a Quickie Power Chair, please refer to the HEADREST CLAMPS page located in the appropriate power chair parts manual.
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1A | LX7804 | LINX CORE STDHRZ/4" VRT MOUNT- 4" vertical post | 4" vertical post | $165.00 | EA | |
| 1B | LX8000 | LINX CORE MNTG HDW 8"- 8" vertical post | 8" vertical post | $201.00 | EA | |
| 1C | LX7000 | LINX CORE MOUNT HDW- 10" vertical post | 10" vertical post | $108.00 | EA | |
| 1D | LX7815 | LINX CORE STDHRZ/15" VRT MOUNT- 15" vertical post | 15" vertical post | $108.00 | EA | |
| 1E | LX7000Q | LINX CORE MOUNT HDW QUICK ADJ | $125.00 | EA | ||
| 2 | MW000680 | CAP RATCHET FASTENER BLACK | $4.00 | EA | ||
| 3 | MW070400 | LYNX SYS ASSM 2" | $88.00 | EA | ||
| 4 | MW006030 | .875 SHAFT COLLAR W/ PIN | $92.00 | EA | ||
| 5 | MC100-WB | COVER 3/4" COLLAR/VINYL BLACK | $6.00 | EA | ||
| 6 | M0030 | KNOB PLAS ADJ LVR 1/4-20 X20mm | $17.00 | EA | ||
| 7 | M2300 | LINX DETACH MOUNT BRKT | $186.00 | EA | ||
| 8 | M2375 | MOUNT FIXED LINX 7/8" SURFACE | $49.00 | EA | ||
| 9 | M0055 | FASTENER PACK DETACH | $11.00 | EA | ||
| 10 | M0075 | FASTENER PACK SWINGAWAY MOUNT | $10.00 | EA | ||
| 11A | LX27804 | LINX2 CORE MOUNT HDW 4IN | $276.00 | EA | ||
| 11B | LX28000 | LINX2 CORE MOUNT HDW 8IN | $284.00 | EA | ||
| 11C | LX27000 | LINX2 CORE MOUNT HDW 10IN | $294.00 | EA | ||
| 11D | LX27815 | LINX2 CORE MOUNT HDW 15IN | $227.00 | EA | ||
| 11E | LX27000Q | LINX2 CORE MNT HDW 10 QCK ADJ | $243.00 | EA |
