Custom Seating

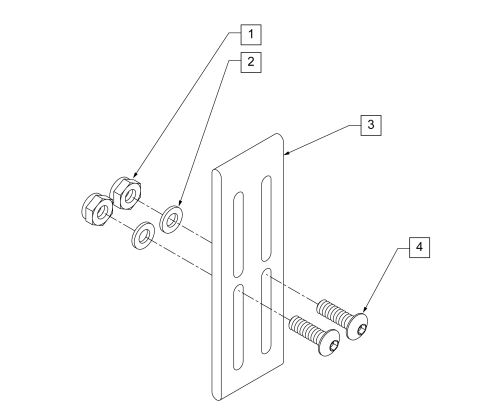

Name: Custom Seating: Bracket Ext Hardware
Manufacturer: Sunrise Medical
(Click on image to enlarge)
Manufacturer: Sunrise Medical
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 | 106935 | NUT NYLOCK THIN 1/4-28 ROHS | $8.00 | EA | ||
| 2 | 455031-QU | #10 AN WASHER .032 SS | $3.00 | EA | ||
| 3 | 450052-QU | BRACKET EXTENDER | $16.00 | EA | ||
| 4 | 226020-QU | 10-32 x 5/8 BH C/S BLK | $3.00 | EA |
