Little Wave Arc

Name: Little Wave Arc: Arc Aluminum Anodized Handrim
Manufacturer: Ki Mobility

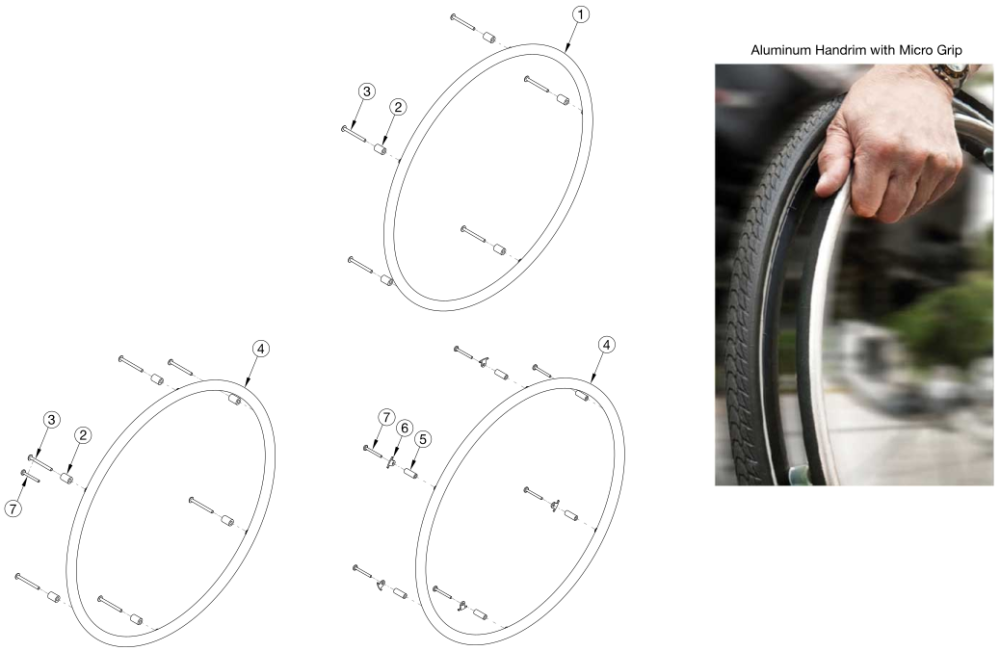

Arc Aluminum Anodized Handrim parts diagram

(Click on image to enlarge)

Handrim Hardware ChartFor more information see Handrim Hardware Chart. If replacing handrims use Aluminum Anodized Handrim Reference to match style. Quantity in Handrim Hardware Kits are for one wheel.

Attachments:

Arc Aluminum Anodized Handrim

Pos.	Part #	Description	Remarks	Price	UOM	Buy
5a, 6, 7a	502168	Handrim Hardware Kit, 6 Rivet Nut, EACH- Used with Ki Spoke and MAXX Spoke wheels with standard handrim mount option	Used with Ki Spoke and MAXX Spoke wheels with standard handrim mount option	$41.98	EA
5b, 6, 7b	113069	Handrim Hardware Kit, Close Mount, 6 Rivet Nut, EACH- Used with Ki Spoke and MAXX Spoke wheels with close mount handrim mount option	Used with Ki Spoke and MAXX Spoke wheels with close mount handrim mount option	$58.84	EA
2a, 3c	117377	Handrim Hardware Kit, Standard Mount, MAXX Mag, EACH- Used with MAXX Mag wheels with standard handrim mount option	Used with MAXX Mag wheels with standard handrim mount option	$35.50	EA
2b, 7a	117378	Handrim Hardware Kit, Close Mount, MAXX Mag, EACH- Used with MAXX Mag wheels with close mount handrim mount option	Used with MAXX Mag wheels with close mount handrim mount option	$41.18	EA
2a, 3a	502171	Handrim Hardware Kit, 5 Rivet Nut, EACH- Used with X Core Mag wheels with standard handrim mount option	Used with X Core Mag wheels with standard handrim mount option	$35.99	EA
2b, 3b	113070	Handrim Hardware Kit, Close Mount, 5 Rivet Nut, EACH- Used with X Core Mag wheels with close mount handrim mount option	Used with X Core Mag wheels with close mount handrim mount option	$29.40	EA
1a	101897	Handrim Aluminum Anodized 5 Rivet Nut 20"- Used with 20" 5-Spoke X Core Mag	Used with 20" 5-Spoke X Core Mag	$75.33	EA
1b	502242	Handrim Aluminum Anodized 5 Rivet Nut 20" w/ Micro Grip- Used with 20" 5-Spoke X Core Mag	Used with 20" 5-Spoke X Core Mag	N/A	EA	Please Call
2a	100629	Handrim Spacer Alum Ano Riv- Used with X Core Mag (Qty 5 needed) and MAXX Mag (Qty 6 needed) with standard handrim mount option	Used with X Core Mag (Qty 5 needed) and MAXX Mag (Qty 6 needed) with standard handrim mount option	$1.25	EA
3a	100724	M5 x 55 PH TRS HD M/S ZC- Used with X Core Mag with standard handrim mount option	Used with X Core Mag with standard handrim mount option	$1.19
3c	122064	PHMS, M5x0.8x50, CLS4.8, PHL, BLZ, NYL, DIN7985, Custom- Used with MAXX Mag with standard handrim mount option	Used with MAXX Mag with standard handrim mount option	$1.81
4a	200536	Handrim Aluminum Anodized 6 Rivet Nut 20"- Used with 20" Ki Spoke, 20" MAXX Spoke, and 20" MAXX Mag	Used with 20" Ki Spoke, 20" MAXX Spoke, and 20" MAXX Mag	$92.37	EA
4b	502246	Handrim Aluminum Anodized 6 Rivet Nut 20" w/ Micro Grip- Used with 20" Ki Spoke and 20" MAXX Spoke	Used with 20" Ki Spoke and 20" MAXX Spoke	$144.74	EA
5a	100653	Handrim Spacer Spoke- Used with Ki Spoke and MAXX Spoke with standard handrim mount option	Used with Ki Spoke and MAXX Spoke with standard handrim mount option	$1.19
6	100698	Handrim Tab- Used with Ki Spoke and MAXX Spoke	Used with Ki Spoke and MAXX Spoke	$4.54
7a	122063	PHMS, M5x0.8x40, CLS4.8, PHL, BLZ, NYL, DIN7985, Custom- Used with Ki Spoke and MAXX Spoke with standard handrim mount option	Used with Ki Spoke and MAXX Spoke with standard handrim mount option	$1.81
