Little Wave Flip
Name: Little Wave Flip: Flip Height Adjustable Low T-arm
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

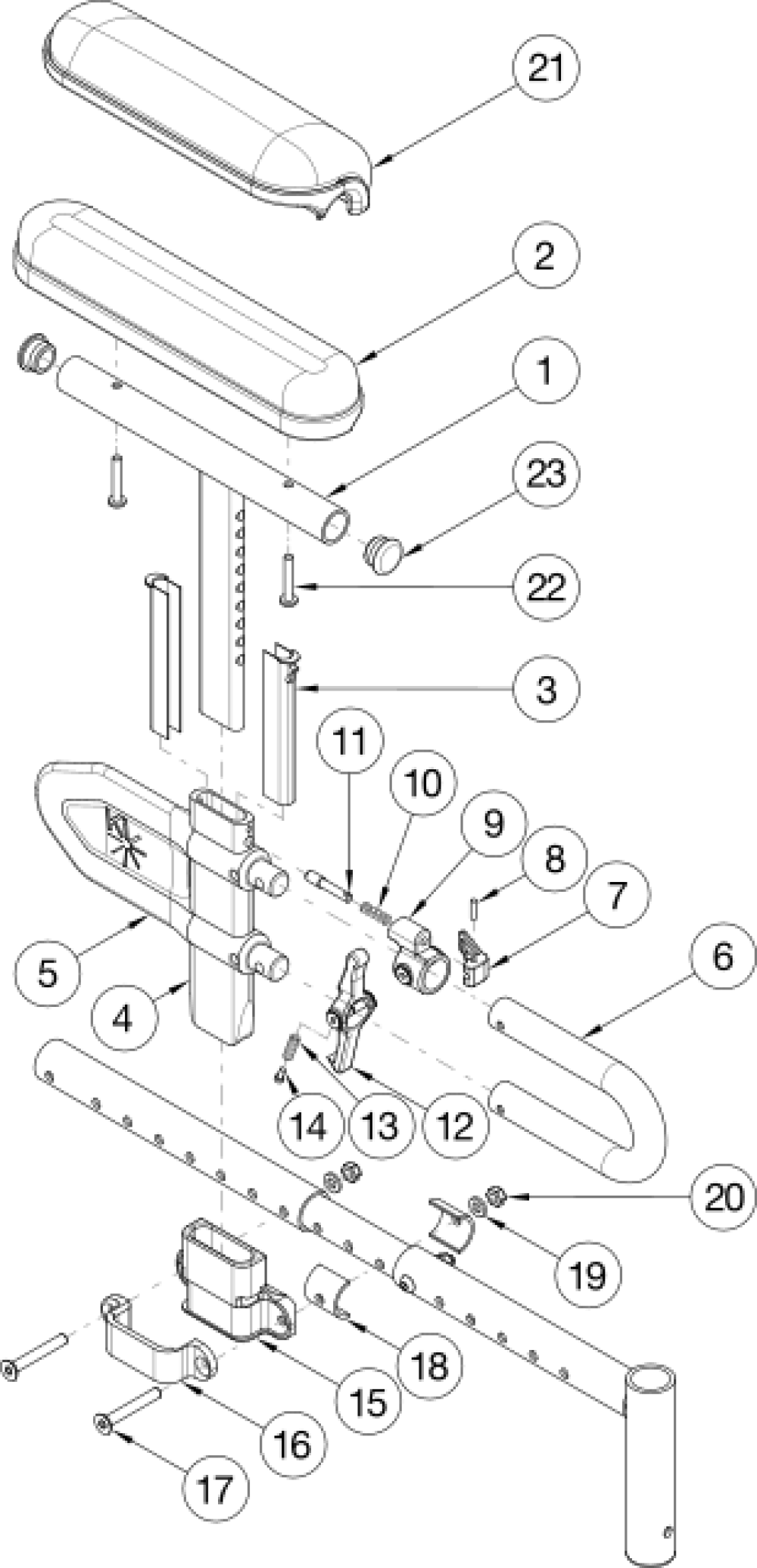

Part Picture
(Click on image to enlarge)
If retrofitting, Receivers are needed.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 2b, 3 - 20, 22a, 23 | 121239 | Height Adjustable T-Arm Assm Low Desk w/ Receiver PAIR FLIP |
$611.36
|
EA |
|
|
| 1a, 2b, 3 - 20, 22a, 23 | 121242 | Height Adj T-Arm Assm Low Desk w/ Receiver |
$305.68
|
EA |
|
|
| 1a, 2b, 3 - 14, 22a, 23 | 121241 | Height Adjustable T-Arm Assembly Low, Desk w/ Std Pad |
$183.61
|
EA |
|
|
| 1b, 2a, 3 - 20, 22a, 23 | 502894 | Height Adjustable T-Arm Assm Low Full Pad w/ Receiver PAIR FLIP |
$616.57
|
EA |
|
|
| 1b, 2a, 3 - 20, 22a, 23 | 503182 | Height Adj T-Arm Assm Low Full w/ Receiver |
$308.28
|
EA |
|
|
| 1b, 2a, 3 - 14, 22a, 23 | 503169 | Height Adjustable T-Arm Assembly Low Full w/ Std Pad |
$183.61
|
EA |
|
|
| 1a, 3 - 20, 21b, 22b, 23 | 121245 | Height Adj T-Arm Assm Low Waterfall Desk w/ Receiver PAIR |
$633.37
|
EA |
|
|
| 1a, 3 - 20, 21b, 22b, 23 | 121244 | Height Adj T-Arm Assm Low Waterfall Desk w/ Receiver |
$316.69
|
EA |
|
|
| 1a, 3 - 14, 21b, 22b, 23 | 121243 | Height Adjustable T-Arm Assembly Low, Desk w/ Waterfall Pad |
$194.06
|
EA |
|
|
| 1b, 3 - 20, 21a, 22b, 23 | 503204 | Height Adj T-Arm Assm Low Waterfall Full w/ Receiver PAIR |
$638.59
|
EA |
|
|
| 1b, 3 - 20, 21a, 22b, 23 | 503198 | Height Adj T-Arm Assm Low Waterfall Full w/ Receiver |
$319.29
|
EA |
|
|
| 1b, 3 - 14, 21a, 22b, 23 | 503185 | Height Adjustable T-Arm Assembly Low Full w/ Waterfall Pad |
$194.06
|
EA |
|
|
| 15 - 19 | 503166 | Armrest T-Arm Receiver Assembly Flip |
$63.69
|
EA |
|
|
| 1a, 3 - 14, 23 | 114488 | Height Adjustable T-Arm, Desk, Low- Replaced 002681 / 002682 | Replaced 002681 / 002682 |
$153.00
|
EA |
|
| 1b, 3 - 14, 23 | 002683 | Arm T Height Adjustable Low, Full Right Assembly | N/A | EA | Please Call | |
| 1b, 3 - 14, 23 | 114489 | Height Adjustable T-Arm, Full, Low- Replaced 002683 / 002684 | Replaced 002683 / 002684 |
$153.00
|
EA |
|
| 1a, 23 | 002648 | Post Weldment, T-Arm, Low, Desk |
$76.58
|
EA |
|
|
| 1b, 23 | 002649 | Post Weldment, T-Arm, Low, Full |
$79.18
|
EA |
|
|
| 2a | 100500 | Arm Pad Full |
$26.98
|
EA |
|
|
| 2b | 100501 | Arm Pad Desk |
$26.98
|
EA |
|
|
| 3 | 000090 | Height Adjustable T Armrest Shim |
$2.92
|
|
||
| 4 | 002105 | Tube, Outer, T-Arm, Low |
$33.81
|
EA |
|
|
| 5 | 002107 | Sideguard, T-Arm, Low | N/A | EA | Please Call | |
| 6 | 002104 | Transfer Tube, T-Arm, Low |
$19.20
|
EA |
|
|
| 7 | 000098 | Height Adjustable Armrest Lever | N/A | EA | Please Call | |
| 8 | 200257 | Dowel Pin 1/8 x 1/2 |
$3.00
|
EA |
|
|
| 9 | 000096 | Height Adjustable T Armrest Pin Lock Housing |
$16.80
|
EA |
|
|
| 10 | 000134 | Height Adjustable Armrest Lever Spring |
$1.28
|
EA |
|
|
| 11 | 000099 | Height Adjustable Armrest Lever Pin |
$21.84
|
EA |
|
|
| 12 | 002106 | Lever, T-Arm, Low |
$3.96
|
EA |
|
|
| 13 | 000135 | Height Adjustable T Armrest Release Lever Spring |
$1.23
|
EA |
|
|
| 14 | 000152 | Height Adjustable T Armrest Release Spring Button |
$1.23
|
EA |
|
|
| 15 | 002036 | Receiver, T-Arm, High |
$14.56
|
EA |
|
|
| 16 | 000088 | Height Adjustable T Armrest Bracket |
$31.30
|
EA |
|
|
| 17 | 101592 | M6 x 45 CLS10.9 DIN7991 FHCS BLKZC |
$3.00
|
EA |
|
|
| 19 | 100746 | M6 Flat Washer Blk Zn |
$1.81
|
EA |
|
|
| 20 | 100658 | M6 Nylock Nut Blk Zn |
$1.19
|
EA |
|
|
| 21a | 102452 | Waterfall Arm Pad Full |
$37.44
|
EA |
|
|
| 21b | 102521 | Waterfall Arm Pad Desk |
$37.44
|
EA |
|
|
| 22a | 100696 | M5 x 30mm PPH Capscrew- Used with Standard Arm Pads | Used with Standard Arm Pads |
$1.81
|
EA |
|
| 22b | 100654 | M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with Waterfall Arm Pads | Used with Waterfall Arm Pads |
$1.81
|
|
|
| 23 | 100803 | Tube End Plug 7/8" |
$1.81
|
EA |
|
