Name: Spark: Tubular Flip Up Armrest
Manufacturer: Ki Mobility

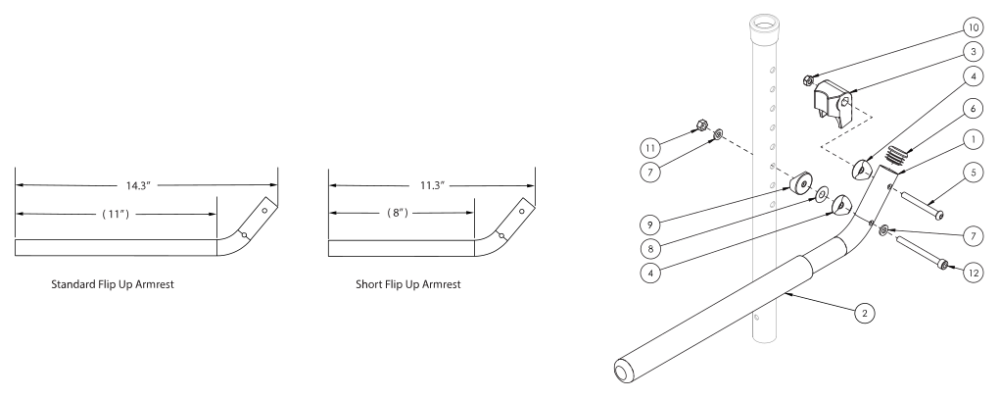

Tubular Flip Up Armrest parts diagram
(Click on image to enlarge)

Pos.Part #DescriptionPriceBuy
1a, 2, 6501250Tubular Flip Up Armrest Tube Assembly
$15.19
1b, 2, 6501251Tubular Flip Up Armrest Tube Assembly Short- Used if chair depth is 10"-14" and Therafin Tray is not present
$15.19
1a, 2 - 12501252Tubular Flip Up Armrest Assembly
$51.14
1a, 2 - 12501254Tubular Flip Up Armrest Assembly (Pair)
$102.28
1b, 2 - 12501253Tubular Flip Up Armrest Assembly Short- Used if chair depth is 10"-14" and Therafin Tray is not present
$51.14
1b, 2 - 12501255Tubular Flip Up Armrest Assembly Short (Pair)- Used if chair depth is 10"-14" and Therafin Tray is not present
$102.28
3501391Tubular Flip Up Armrest Stop Block
$22.30
4000054Saddle 7/8" ()
$1.58
5101125M6 x 55 BTN SHCS BLKZC
$2.10
6100803Tube End Plug 7/8"
$1.58
7100746M6 Flat Washer Blk Zn ()
$1.58
8000428Wear Washer
$2.63
9000055Saddle 1"
$1.58
10100658M6 Nylock Nut Blk Zn
$1.05
11101456M6 Ovl Top L/N ZC
$1.58
12101849M6 x 65 SHCS Blk Zn
$2.10
