Quickie Q700 M Series

Name: Quickie Q700 M SEries: 2 Point Armrest Ergo
Manufacturer: Sunrise Medical

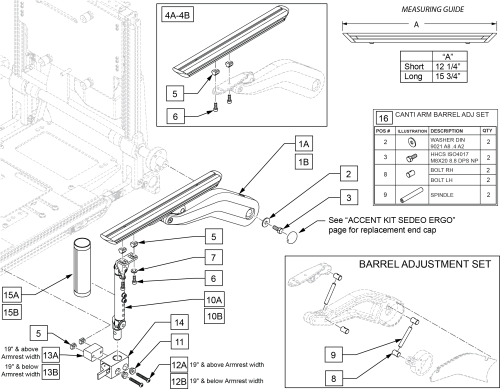

2 Point Armrest Ergo parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1A - 3 159771 CANTILEVER ARM RT SDO- Right; for Reclining Std, 2" Comfort & Gel Trough Long
$399.00
EA
1A - 3 159770 CANTILEVER ARM LFT SDO- Left; for Reclining Std, 2" Comfort & Gel Trough Long
$399.00
EA
1B - 3 250821 CANTILEVER ARM RH SDO SHRT- Right; for 4" Comfort, 2" Gel & 4" Gel Short
$553.00
EA
1B - 3 250820 CANTILEVER ARM LH SDO SHRT- Left; for 4" Comfort, 2" Gel & 4" Gel Short
$553.00
EA
4A 159769 STD ARMREST SDO- Right or Left; for Reclining Std, 2" Comfort & Gel Trough Long
$173.00
EA
4B 21804062 FIXING RAIL SPARES- Comfort Armrest P-Shaped; for 4" Comfort, 2" Gel & 4" Gel Short
$173.00
EA
5 132688 M6 T-NUT ISO299
$17.00
EA
6 104522 SHCS, M6 X 1 X 16, FULL PL
$7.00
EA
7 250104 WASHER FLAT M6
$7.00
EA
10A 246917 2 PT ASSY SDO
$314.00
EA
10B 247043 SINGLE POST ASSY SDO TALL
$345.00
EA
11 247355 BUSHING SHLDR CNTR BORE
$14.00
EA
12A 104399 SHCS M6X1X45 12 MM PART THD- 19" & above Armrest width
$9.00
EA
12B 102263-003 SHCS, M6 X 1 X 25, FULL, PL- 19" & below Armrest width
$7.00
EA
13A 247946 SPACER 2PT ARMREST SEDEO- 19" & above Armrest width
$20.00
EA
13B 132961 EZ ACC REM BRKT SPACER- 19" & below Armrest width
$8.00
EA
14 506367 UNIV ARMRST RCVR ASSM LH
$100.00
EA
14 506366 UNIV ARMRST RCVR ASSM RH
$100.00
EA
5 - 7, 10A, 11, 12A, 13A, 14, 15A 163184 ERGO 2 PT ARM SZ A RETRO PR
$1,130.00
EA
5 - 7, 10B, 11, 12A, 13A, 14, 15A 163185 ERGO 2 PT ARM SZ B RETRO PR
$1,104.00
EA
5, 11, 12A, 13A, 14 163186 ERGO 2 PT ARM RECEIVERS PR
$314.00
EA
5 - 7, 10A 163187 ERGO 2 PT ARM FRNT POST SZ A- Use Seat Frame A
$454.00
EA
5 - 7, 10B 163188 ERGO 2 PT ARM FRNT POST SZ B- Use Seat Frame B
$443.00
EA
15A 247853 COVER SHORT 2 POINT ARMREST- 6"
$61.00
EA
15B 247854 COVER TALL 2 POINT ARMREST- 8"
$77.00
EA
16 159973 CANTI ARM BARREL ADJ SET
$87.00
EA
