Quickie Q700 M Series

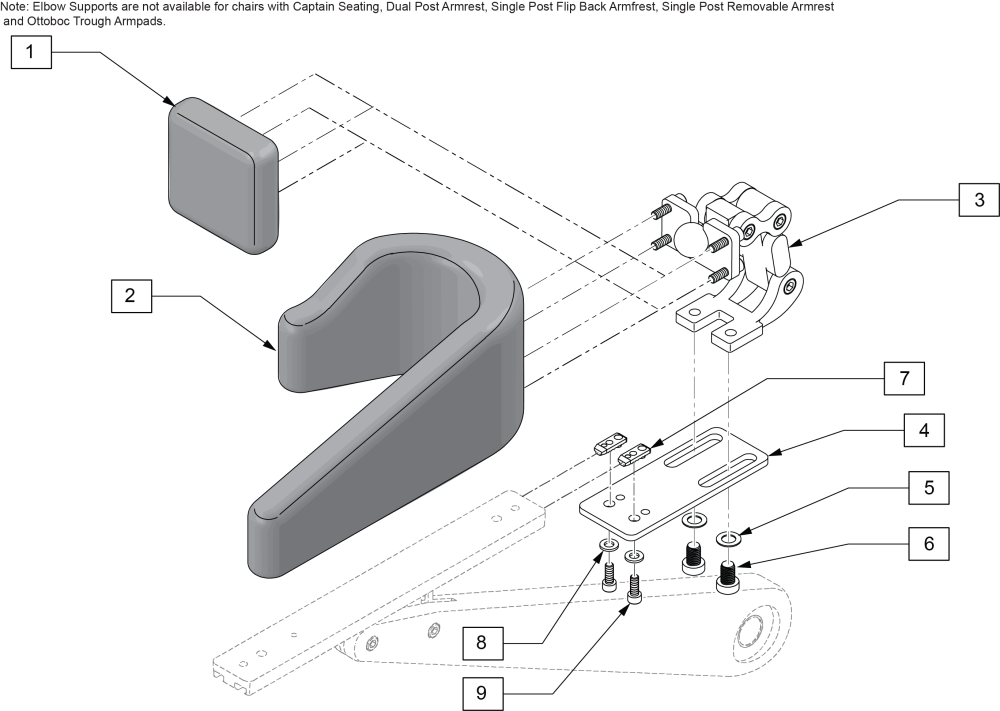

Name: Quickie Q700 M SEries: Elbow Supports
Manufacturer: Sunrise Medical
(Click on image to enlarge)
Manufacturer: Sunrise Medical
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 | 259773 | 3 X 3 ELBOW PAD |
$169.00
|
EA |
|
|
| 2 | 258822 | UNILINK 3X10 ELBOW PAD LEFT |
$199.00
|
EA |
|
|
| 2 | 258859 | UNILINK 3X10 ELBOW PAD RIGHT |
$199.00
|
EA |
|
|
| 3 | 258812 | SWING AWAY ELBOW BLOCK LEFT- Elbow pad mounting hardware included. | Elbow pad mounting hardware included. |
$425.00
|
EA |
|
| 3 | 258814 | SWING AWAY ELBOW BLOCK RIGHT- Elbow pad mounting hardware included. | Elbow pad mounting hardware included. |
$425.00
|
EA |
|
| 4 | 259593 | ADAPTER PLATE UNILINK |
$25.00
|
EA |
|
|
| 5 - 9 | 170367 | ELBOW SUPPORT HARDWARE KIT | N/A | EA | Please Call |
