Little Wave Clik

Name: Little Wave Clik: (discontinued) Clik Caster Forks And Stems
Manufacturer: Ki Mobility

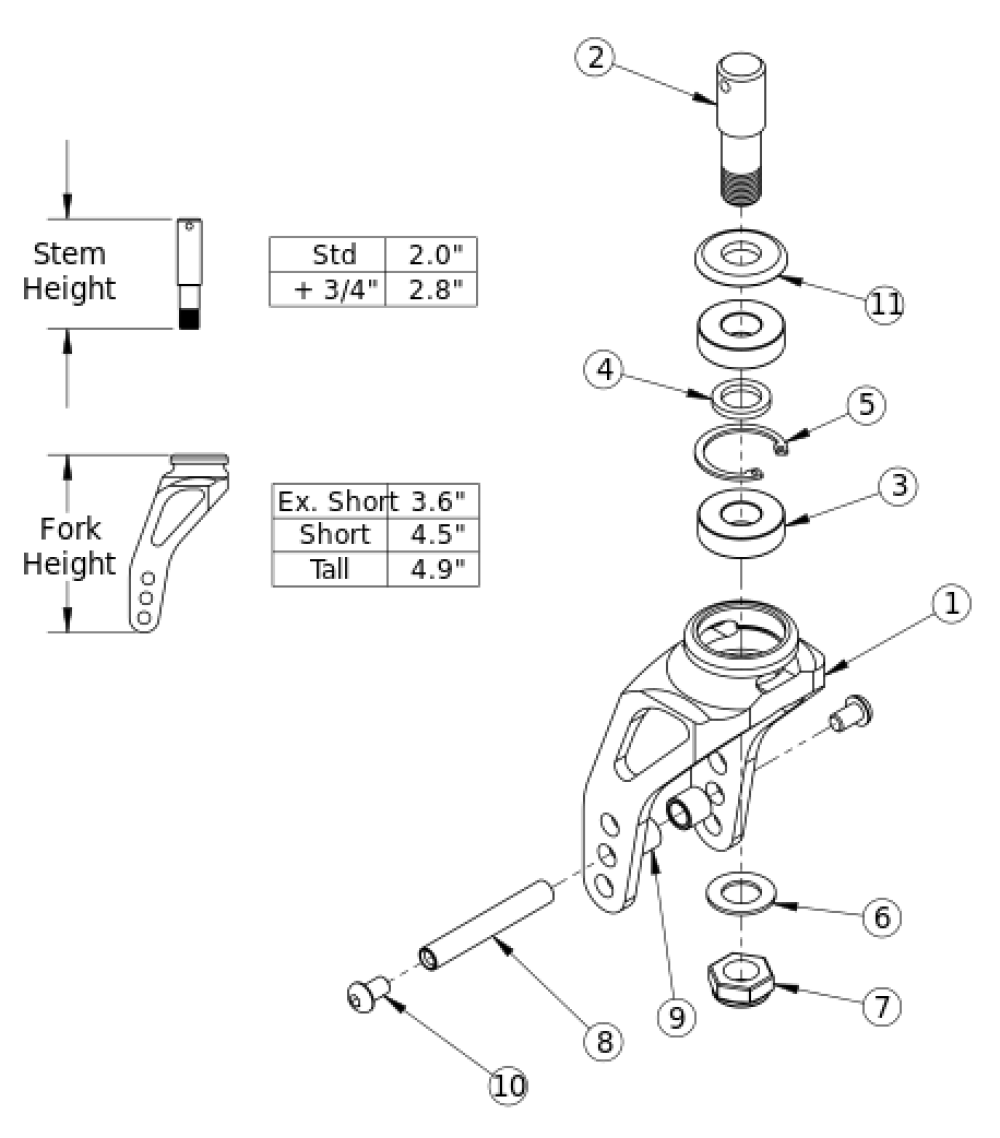

(discontinued) Clik Caster Forks And Stems parts diagram
(Click on image to enlarge)

Color Anodizing Reference
Pos. Part # Description Price UOM Buy
1a, 2a, 3 - 7 502645 Fork and Stem Assembly Extra Short Std, Black Anodized N/A EA Please Call
1b, 2a, 3 - 7 502645_ _ _ Color Anodized Fork and Stem Assembly Extra Short Std N/A EA Please Call
1a, 2b, 3 - 7, 11 502646 Fork and Stem Assembly Extra Short 3/4, Black Anodized N/A EA Please Call
1b, 2b, 3 - 7, 11 502646_ _ _ Color Anodized Fork and Stem Assembly Extra Short 3/4 N/A EA Please Call
1c, 2a, 3 - 7 500782 Fork and Stem Assembly Short Std, Black Anodized N/A EA Please Call
1d, 2a, 3 - 7 500782_ _ _ Color Anodized Fork and Stem Assembly Short Std N/A EA Please Call
1c, 2b, 3 - 7, 11 500783 Fork and Stem Assembly Short 3/4, Black Anodized N/A EA Please Call
1d, 2b, 3 - 7, 11 500783_ _ _ Color Anodized Fork and Stem Assembly Short 3/4 N/A EA Please Call
1e, 2a, 3 - 7 500784 Fork and Stem Assembly Tall Std, Black Anodized N/A EA Please Call
1f, 2a, 3 - 7 500784_ _ _ Color Anodized Fork and Stem Assembly Tall Std N/A EA Please Call
1e, 2b, 3 - 7, 11 500785 Fork and Stem Assembly Tall 3/4, Black Anodized N/A EA Please Call
1f, 2b, 3 - 7, 11 500785_ _ _ Color Anodized Fork and Stem Assembly Tall 3/4 N/A EA Please Call
1b, 3 - 5 001812_ _ _ Color Anodized Extra Short Caster Fork w/ Bearing Housing LW- Replaced with 004361_ _ _ N/A EA Please Call
1c, 3 - 5 000927INST Caster Fork Short w/ Bearing Housing Black Anodized- Replaced with 004354 N/A EA Please Call
1e, 3 - 5 000928INST Caster Fork Tall w/ Bearing Housing Black Anodized- Replaced with 004362 N/A EA Please Call
1f, 3 - 5 000928_ _ _ Color Anodized Caster Fork Tall w/ Bearing Housing RG- Replaced with 004362_ _ _ N/A EA Please Call
2a 000929INST Caster Stem In Line Std Rogue/Clik- Replaced with 004111INST N/A EA Please Call
2b 000930INST Caster Stem In Line +3/4 Rogue/Clik- Replaced with 004371INST
$14.35
EA
3 100902 Bearing 1 1/8" x 1/2" R8RS
$7.06
EA
6 100682 Washer 1/2" .518 x .875 x .047 F/W Black Zinc
$1.17
EA
7 101459 1/2-20 NTE JAM NYL INS L/N BLK ZC
$1.77
EA
8 000422 M6 x 56 Threaded Barrel
$11.91
EA
9 100792 Caster Spacer D8 x D12 x 10mm / Close Mount Handrim Spacer
$2.40
10 100667 M6 x 12 BTN SHCS BLKZC w/Patch
$1.77
EA
11a 001355 Caster Bearing Cap Black Anodized- Used with 3/4" stem only
$4.13
EA
11b 001355_ _ _ Color Anodized Caster Bearing Cap N/A EA Please Call
