loadingLoading... Little Wave XP

Little Wave Xp

Name: Little Wave XP: Rigid Height Adjustable Low T-arm
Manufacturer: Ki Mobility

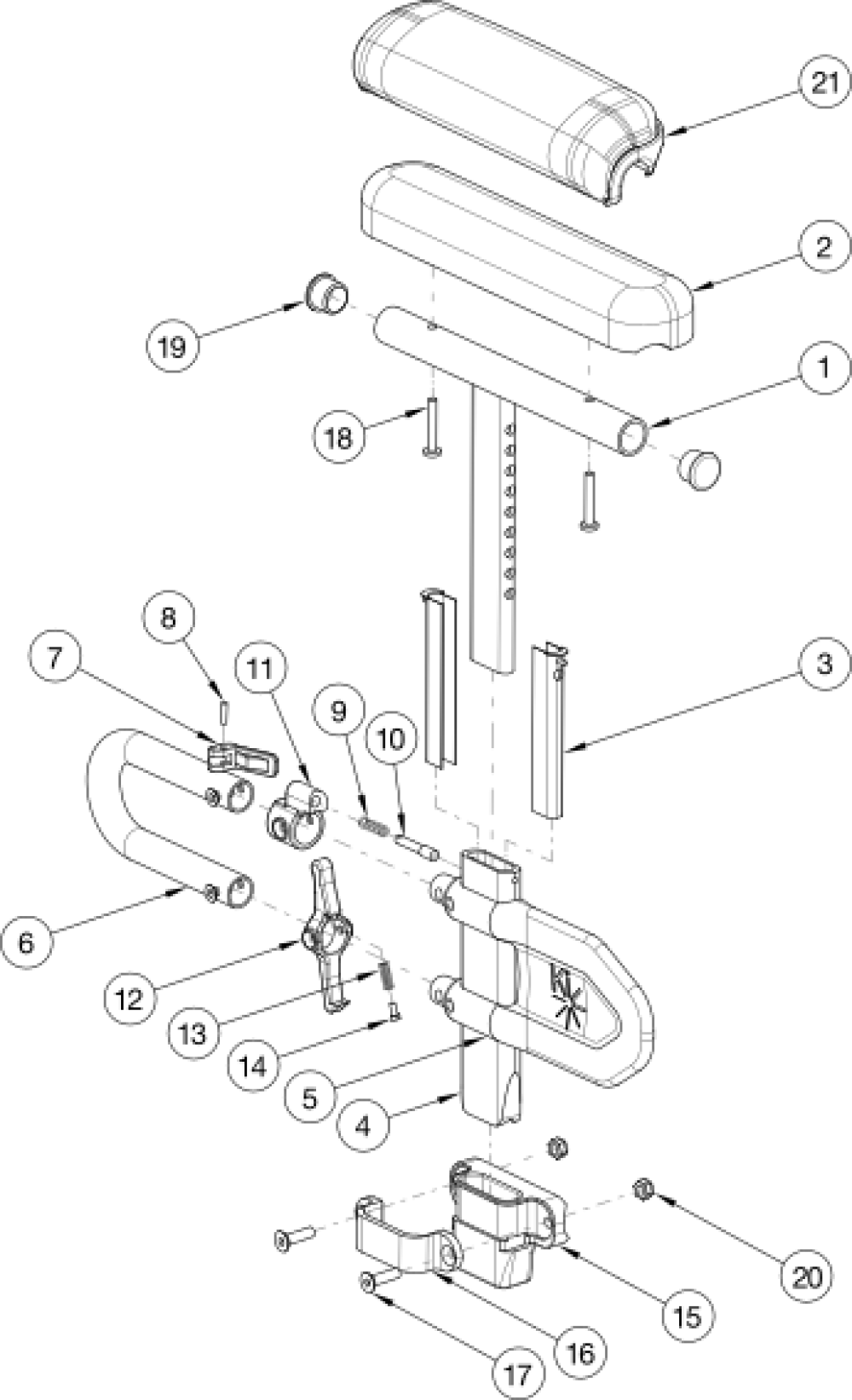

Rigid Height Adjustable Low T-arm parts diagram
(Click on image to enlarge)

Height Adjustable Low T-Arms cannot be retrofitted
Pos. Part # Description Price UOM Buy
1a, 2b, 3 - 18, 19a, 20 - 21 113460 Height Adj T-Arm Assm Low, Desk w/ Std Pad and RG/RG ALX/LW XP Receiver PAIR
$469.64
EA
1a, 2b, 3 - 18, 19a, 20 - 21 113444 Height Adj T-Arm Assm Low, Desk w/ Std Pad and RG/RG ALX/LW XP Receiver Right
$234.82
EA
1a, 2b, 3 - 18, 19a, 20 - 21 113445 Height Adj T-Arm Assm Low, Desk w/ Std Pad and RG/RG ALX/LW XP Receiver Left
$234.82
EA
1a, 2b, 3 - 15, 19a, 20 503167 Height Adjustable T-Arm Assembly Low, Desk w/ Std Pad Right
$180.01
EA
1a, 2b, 3 - 15, 19a, 20 503168 Height Adjustable T-Arm Assembly Low, Desk w/ Std Pad Left
$180.01
EA
1b, 2a, 3 - 18, 19a, 20 - 21 113461 Height Adj T-Arm Assm Low, Full w/ Std Pad and RG/RG ALX/LW XP Receiver PAIR
$469.64
EA
1b, 2a, 3 - 18, 19a, 20 - 21 113446 Height Adj T-Arm Assm Low, Full w/ Std Pad and RG/RG ALX/LW XP Receiver Right
$234.82
EA
1b, 2a, 3 - 18, 19a, 20 - 21 113447 Height Adj T-Arm Assm Low, Full w/ Std Pad and RG/RG ALX/LW XP Receiver Left
$234.82
EA
1b, 2a, 3 - 15, 19a, 20 503169 Height Adjustable T-Arm Assembly Low, Full w/ Std Pad Right
$180.01
EA
1b, 2a, 3 - 15, 19a, 20 503170 Height Adjustable T-Arm Assembly Low, Full w/ Std Pad Left
$180.01
EA
1a, 3 - 18, 19b, 20 - 21, 22b 113462 Height Adj T-Arm Assm Low, Desk w/ Waterfall Pad and RG/RG ALX/LW XP Receiver PAIR
$490.13
EA
1a, 3 - 18, 19b, 20 - 21, 22b 113448 Height Adj T-Arm Assm Low, Desk w/ Waterfall Pad and RG/RG ALX/LW XP Receiver Right
$245.08
EA
1a, 3 - 18, 19b, 20 - 21, 22b 113451 Height Adj T-Arm Assm Low, Desk w/ Waterfall Pad and RG/RG ALX/LW XP Receiver Left
$245.08
EA
1a, 3 - 15, 19b, 20, 23b 503183 Height Adjustable T-Arm Assembly Low, Desk w/ Waterfall Pad Right
$190.25
EA
1a, 3 - 15, 19b, 20, 23b 503184 Height Adjustable T-Arm Assembly Low, Desk w/ Waterfall Pad Left
$190.25
EA
1b, 3 - 18, 19b, 20 - 21, 22a 113463 Height Adj T-Arm Assm Low, Full w/ Waterfall Pad and RG/RG ALX/LW XP Receiver PAIR
$490.13
EA
1b, 3 - 18, 19b, 20 - 21, 22a 113449 Height Adj T-Arm Assm Low, Full w/ Waterfall Pad and RG/RG ALX/LW XP Receiver Right
$245.08
EA
1b, 3 - 18, 19b, 20 - 21, 22a 113450 Height Adj T-Arm Assm Low, Full w/ Waterfall Pad and RG/RG ALX/LW XP Receiver Left
$245.08
EA
1b, 3 - 15, 19b, 20, 23a 503185 Height Adjustable T-Arm Assembly Low, Full w/ Waterfall Pad Right
$190.25
EA
1b, 3 - 15, 19b, 20, 23a 503186 Height Adjustable T-Arm Assembly Low, Full w/ Waterfall Pad Left
$190.25
EA
1a, 3 - 15, 20 002681 Arm T Height Adjustable Low, Desk Right Assembly
$150.00
EA
1a, 3 - 15, 20 002682 Arm T Height Adjustable Low, Desk Left Assembly
$150.00
EA
1b, 3 - 15, 20 002683 Arm T Height Adjustable Low, Full Right Assembly
$150.00
EA
1b, 3 - 15, 20 114489 Height Adjustable T-Arm, Full, Low- Replaced 002683 / 002684
$150.00
EA
1a, 20 002648 Post Weldment, T-Arm, Low, Desk
$75.08
EA
1b, 20 002649 Post Weldment, T-Arm, Low, Full
$77.62
EA
2a 100500 Arm Pad Full
$26.45
EA
2b 100501 Arm Pad Desk
$26.45
EA
3 000090 Height Adjustable T Armrest Shim
$2.86
4 002105 Tube, Outer, T-Arm, Low
$33.15
EA
5 000092 Height Adjustable T Armrest Clamp N/A Please Call
6 002107 Sideguard, T-Arm, Low N/A EA Please Call
7 002104 Transfer Tube, T-Arm, Low
$18.82
EA
8 000098 Height Adjustable Armrest Lever N/A EA Please Call
9 200257 Dowel Pin 1/8 x 1/2
$2.94
EA
10 000134 Height Adjustable Armrest Lever Spring
$1.25
EA
11 000099 Height Adjustable Armrest Lever Pin
$21.41
EA
12 000096 Height Adjustable T Armrest Pin Lock Housing
$16.47
EA
8 - 12 500541 Arm Height Adjustable T Upper Lever Assembly
$45.41
EA
13 002106 Lever, T-Arm, Low
$3.88
EA
14 000135 Height Adjustable T Armrest Release Lever Spring
$1.21
EA
15 000152 Height Adjustable T Armrest Release Spring Button
$1.21
EA
16 004578 Height Adjustable T-Arm Receiver 1.375"
$17.07
EA
17 000088 Height Adjustable T Armrest Bracket
$30.69
EA
18 101130 M6 x 55 FSHCS P/THD BLKZC
$2.36
EA
16 - 18, 21 501731 Height Adj T-Arm Receiver Assembly 1-3/8", RG ALX/LW XP
$53.99
EA
19a 100696 M5 x 30mm PPH Capscrew- Used with Standard Arm Pads
$1.77
EA
19b 100654 M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with Waterfall Arm Pads
$1.77
20 100803 Tube End Plug 7/8"
$1.77
EA
21 100658 M6 Nylock Nut Blk Zn
$1.17
EA
22a 102452 Waterfall Arm Pad Full
$36.71
EA
22b 102521 Waterfall Arm Pad Desk
$36.71
EA
