Little Wave Xp

Name: Little Wave XP: Rigid Push Handle
Manufacturer: Ki Mobility

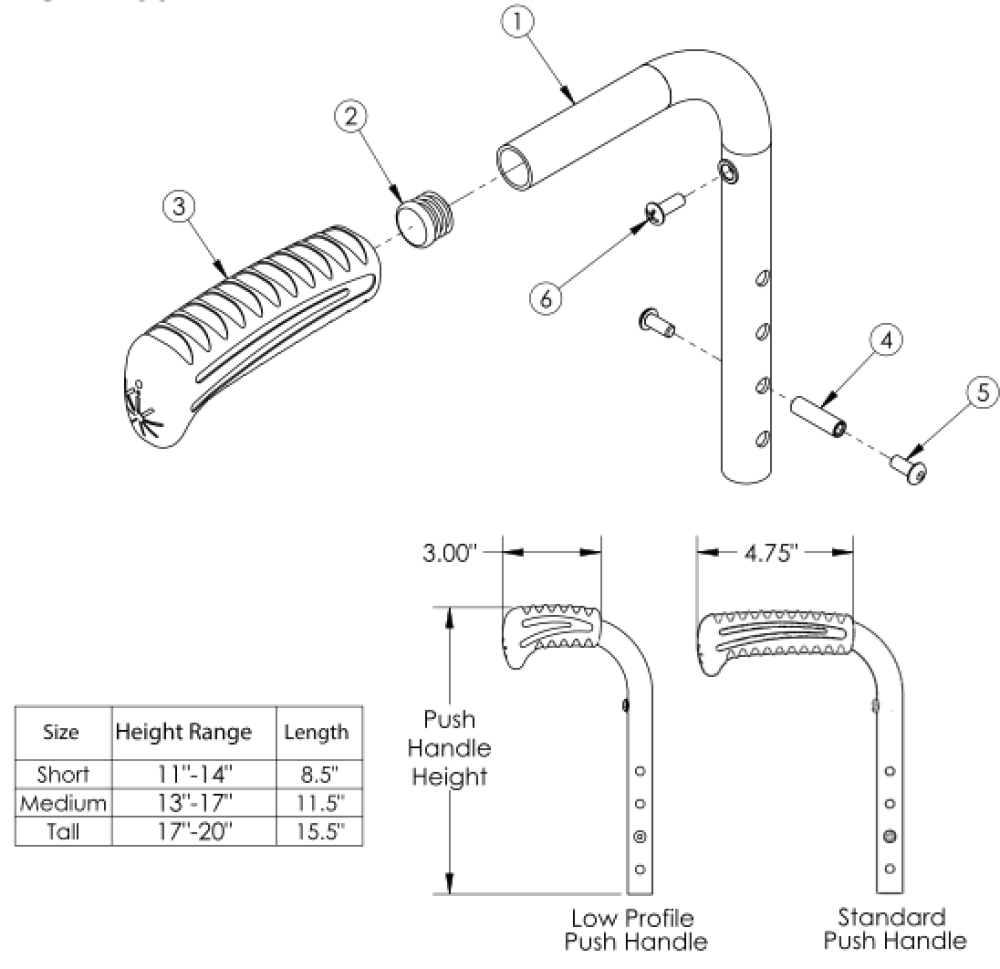

Rigid Push Handle parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1a, 2, 3a, 4 - 6 500779 Standard Push Handle w/Hardware Assembly Short Rigid- Used with all fixed height backrests w/standard push handle or height adjustable backrests w/standard push handle with a short back height range and drum brake is not present
$83.29
EA
1b, 2, 3a, 4 - 6 506730 Standard Push Handle w/Hardware Assembly Medium Rigid- Used with height adjustable backrests w/standard push handle with a medium back height range and drum brake is not present
$80.87
EA
1c, 2, 3a, 4 - 6 506731 Standard Push Handle w/Hardware Assembly Tall Rigid- Used with height adjustable backrests w/standard push handle with a tall back height range and drum brake is not present
$80.87
EA
1a, 2, 3b 002758 Back Post Assembly Short with Low Profile Push Handle Rigid- Used with all fixed height backrests w/low profile push handle or height adjustable backrests w/low profile push handle with a short back height range
$73.77
EA
1b, 2, 3b 506732 Back Post Assembly Medium with Low Profile Push Handle Rigid- Used with height adjustable backrests w/low profile push handle with a medium back height range
$71.62
EA
1c, 2, 3b 506733 Back Post Assembly Tall with Low Profile Push Handle Rigid- Used with height adjustable backrests w/low profile push handle with a tall back height range
$71.62
EA
1d, 2, 3a 113221 Backtube w/ Push Handle Short with Backcane Extension, Drum Brake, Rigid- Used with all fixed height backrests w/standard push handle or height adjustable backrests w/standard push handle with short back height range and drum brake is present
$58.53
EA
1e, 2, 3a 113222 Backtube w/ Push Handle Medium with Backcane Extension, Drum Brake, Rigid- Used with height adjustable backrests w/standard push handle with a medium back height range and drum brake is present
$58.53
EA
1f, 2, 3a 113223 Backtube w/ Push Handle Tall with Backcane Extension, Drum Brake, Rigid- Used with height adjustable backrests w/standard push handle with a tall back height range and drum brake is present
$58.53
EA
2 100638 Tube End Plug 3/4"
$2.36
EA
3a 109432 Ergo Push Handle Grip 3/4" Standard with Instruction
$7.76
EA
3b 109430 Ergo Push Handle Grip 3/4" Low Profile with Instruction N/A EA Please Call
4 000073 M5 x 24 Threaded Barrel
$4.23
EA
5 100669 M5 x 10 BTN SHCS BLKZC w/Patch
$1.77
EA
6 100734 M5 x 16 PHMS ZC- Used to mount back upholstery
$1.77
EA
