Loading...Rogue

Rogue

Name: Rogue: Rogue Rigid Frame
Manufacturer: Ki Mobility

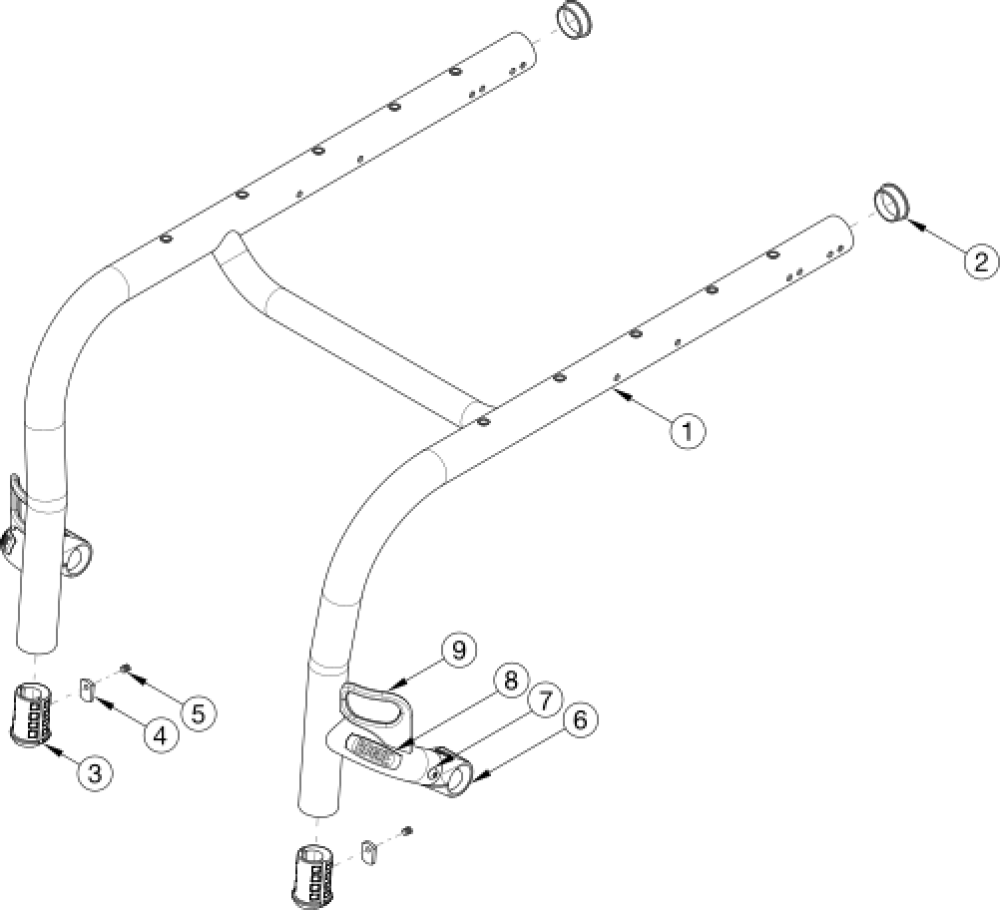

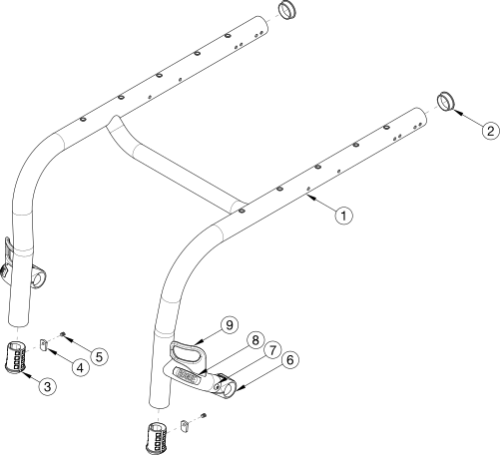

Rogue Rigid Frame parts diagram

Color Anodizing ReferenceReplacement rigid frames may be quoted, but must be ordered through Customer Service. This design effective starting with serial number RG008800. Replacement Rogue transit frames will include front transit brackets. To quote rear transit brackets, please see Rogue Transit page.
Attachments:
Pos.Part #DescriptionPriceBuy
1a, 2 - 4a, 5, 6a, 7, 8RFRGReplacement Rogue Frame
$888.08
1b, 2 - 4a, 5, 6a, 7, 8, 9RFRGTRANSReplacement Rogue Transit Frame
$1,129.73
1c, 2 - 4a, 5, 6a, 7, 8RFRGGITReplacement Rogue Frame w/ Graphic Image Transfer
$1,494.75
1d, 2 - 4a, 5, 6b, 7, 8RFRGCOLReplacement Rogue Frame w/ Color Anodized Package
$916.12
1e, 2 - 4a, 5, 6b, 7, 8, 9RFRGTRANSCOLReplacement Rogue Transit Frame w/ Color Anodized Package
$1,157.76
1f, 2 - 4a, 5, 6b, 7, 8RFRGGITCOLReplacement Rogue Frame w/ Graphic Image Transfer and Color Anodized Package
$1,522.78
2101113Tube End Plug 1 3/8"- Use quantity 4 with high-mounted footrests. Extra plugs are inserted into front of frame.
$3.15
3001346Footrest Sleeve 3/4" to 1 3/8" ()- Used only with frame-inserted footrests. Use item 2 for high-mounted footrests.
$6.01
4a001141Weld Nut NDM 06028 Zinc- Used only with frame-inserted footrests. Use item 2 for high-mounted footrests.
$2.63
4b102092M6 Weld Nut Offset ()- Used only as needed with frame-inserted footrests. Use item 2 for high-mounted footrests.
$3.15
5102090M6 Set Screw Flat Point ()- Used only with frame-inserted footrests. Use item 2 for high-mounted footrests.
$2.63
8002473Aluminum Wing Badge Rogue ()
$2.68
