Catalyst E And 4e
Name: Catalyst E and 4E: Catalyst E Armrests - Height Adjustable Flip Back T-arm
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

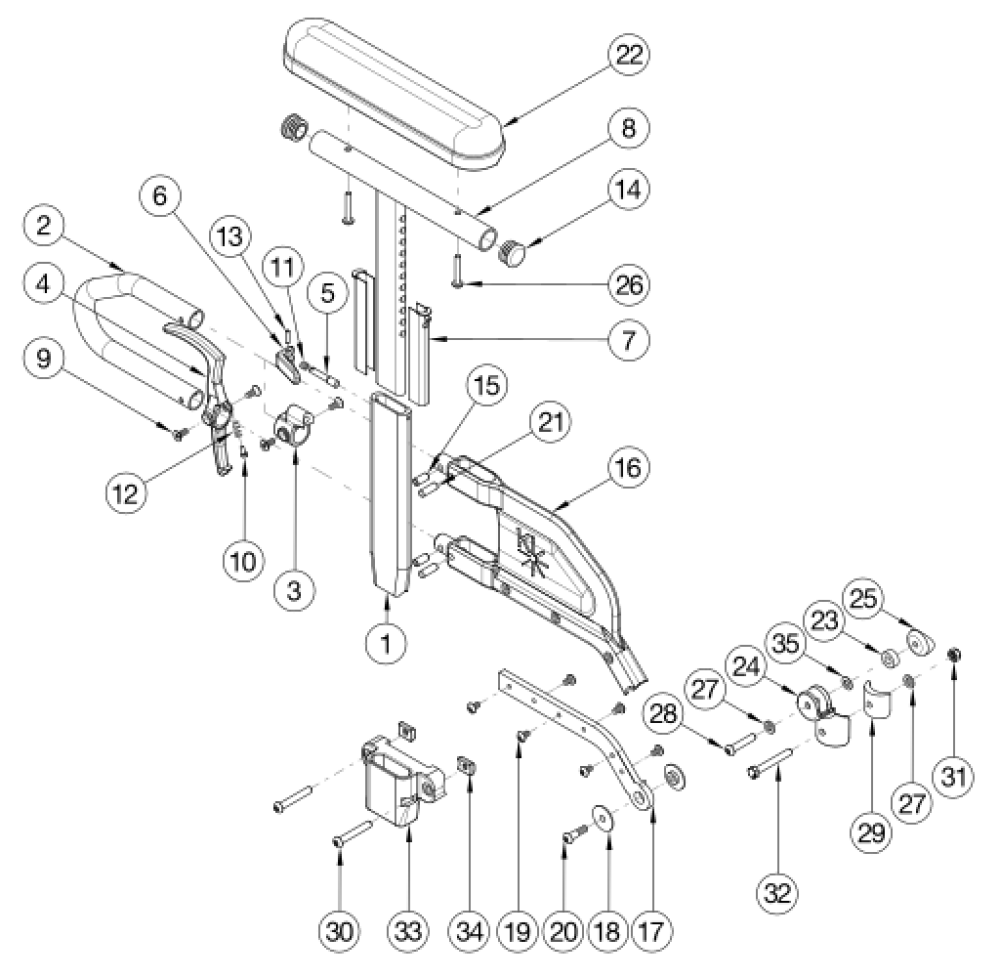

Part Picture
(Click on image to enlarge)
Short assemblies used with 14" - 17" Seat Depths. Long assemblies used with 18" - 20" Seat Depths. .
If retrofitting, Receivers are needed.
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 7, 9 - 13, 15, 16a, 17a, 19, 21 | 004158 | Height Adjustable Flip Back T-Arm Lower Assembly Short- Does not include t-arm upper, arm pad or arm pad screws | Does not include t-arm upper, arm pad or arm pad screws | $154.24 | EA | |
| 1 - 7, 9 - 13, 15, 16b, 17b, 19, 21 | 004159 | Height Adjustable Flip Back T-Arm Lower Assembly Long- Does not include t-arm upper, arm pad or arm pad screws | Does not include t-arm upper, arm pad or arm pad screws | $154.24 | EA | |
| 1 - 7, 8a, 9 - 15, 16a, 17a, 19, 21 | 003459 | Height Adjustable Flip Back T-Arm Short Desk- Does not include arm pad or arm pad screws | Does not include arm pad or arm pad screws | $304.54 | EA | |
| 1 - 7, 8b, 9 - 15, 16a, 17a, 19, 21 | 003460 | Height Adjustable Flip Back T-Arm Short Full- Does not include arm pad or arm pad screws | Does not include arm pad or arm pad screws | $304.54 | EA | |
| 1 - 7, 8a, 9 - 15, 16b, 17b, 19, 21 | 003461 | Height Adjustable Flip Back T-Arm Long Desk- Does not include arm pad or arm pad screws | Does not include arm pad or arm pad screws | $304.54 | EA | |
| 1 - 7, 8b, 9 - 15, 16b, 17b, 19, 21 | 003462 | Height Adjustable Flip Back T-Arm Long Full- Does not include arm pad or arm pad screws | Does not include arm pad or arm pad screws | $304.54 | EA | |
| 1 - 7, 9 - 13, 15, 16a, 17a, 18 - 21, 24, 25, 31, 32 | 504567 | Height Adjustable Flip Back T-Arm Short Retrofit Assembly, Catalyst 5- This kit is used to retrofit from a Height Adjustable T-Arm to a Height Adjustable Flip Back T-Arm. This kit is to retrofit one side. | This kit is used to retrofit from a Height Adjustable T-Arm to a Height Adjustable Flip Back T-Arm. This kit is to retrofit one side. | $215.88 | EA | |
| 1 - 7, 9 - 13, 15, 16b, 17b, 18 - 21, 24, 25, 31, 32 | 504568 | Height Adjustable Flip Back T-Arm Long Retrofit Assembly, Catalyst 5- This kit is used to retro fit from a Height Adjustable T-Arm to a Height Adjustable Flip Back T-Arm. This kit is to retrofit one side. | This kit is used to retro fit from a Height Adjustable T-Arm to a Height Adjustable Flip Back T-Arm. This kit is to retrofit one side. | $215.88 | EA | |
| 1 - 7, 8a, 9 - 15, 16a, 17a, 18 - 21, 22b, 24 - 26, 31, 32 | 504569 | Height Adjustable Flip Back T-Arm Short Desk with Standard Pad Assembly, Catalyst 5 | $370.54 | EA | ||
| 1 - 7, 8b, 9 - 15, 16a, 17a, 18 - 21, 22a, 24 - 26, 31, 32 | 504570 | Height Adjustable Flip Back T-Arm Short Full with Standard Pad Assembly, Catalyst 5 | $370.54 | EA | ||
| 1 - 7, 8a, 9 - 15, 16b, 17b, 18 - 21, 22b, 24 - 26, 31, 32 | 504571 | Height Adjustable Flip Back T-Arm Long Desk with Standard Pad Assembly, Catalyst 5 | $370.54 | EA | ||
| 1 - 7, 8b, 9 - 15, 16b, 17b, 18 - 21, 22a, 24 - 26, 31, 32 | 504572 | Height Adjustable Flip Back T-Arm Long Full with Standard Pad Assembly, Catalyst 5 | $370.54 | EA | ||
| 18, 20, 24, 25 | 112958 | Armrest Flip Back Height Adj T-Arm Hinge Assembly, PAIR, Catalyst 5- This kit is for a pair of hinge assemblies. A pair is required as a replacement as of May 19th, 2021 | This kit is for a pair of hinge assemblies. A pair is required as a replacement as of May 19th, 2021 | $44.56 | EA | |
| 30, 33 - 34 | 116058 | Height Adjustable Flip Back Receiver Assm Cat E | $18.54 | EA | ||
| 31, 32 | 504577 | Height Adjustable Flip Back T-Arm Mounting Hardware Assembly- This kit contains various mounting hardware for multiple configurations | This kit contains various mounting hardware for multiple configurations | $14.77 | EA | |
| 3, 5, 6, 9, 11, 13 | 504560 | Height Adjustable Flip Back T-Arm Latch Assembly | $49.15 | EA | ||
| 4, 9, 10, 12 | 504561 | Height Adjustable Flip Back T-Arm Release Lever Assembly | $12.59 | EA | ||
| 1 | 003420 | T-Arm Post | $27.15 | EA | ||
| 2 | 000095 | Height Adjustable T Armrest Transfer Tube | $30.35 | EA | ||
| 7 | 000090 | Height Adjustable T Armrest Shim | $2.76 | |||
| 8a, 14 | 112906 | Height Adjustable T Armrest Upper Desk w/ Tube End Plug | $82.92 | EA | ||
| 8b, 14 | 112907 | Height Adjustable T Armrest Upper Full w/ Tube End Plug | $82.92 | EA | ||
| 14 | 100803 | Tube End Plug 7/8" | $1.71 | EA | ||
| 15, 16a, 21 | 504562 | Height Adjustable Flip Back T-Arm Side Shield Short | $31.82 | EA | ||
| 15, 16b, 21 | 504563 | Height Adjustable Flip Back T-Arm Side Shield Long | $31.82 | EA | ||
| 17a, 19 | 504564 | Height Adjustable Flip Back T-Arm Metal Insert Short | $36.36 | EA | ||
| 17b, 19 | 504565 | Height Adjustable Flip Back T-Arm Metal Insert Long | $38.64 | EA | ||
| 22a | 100500 | Arm Pad Full | $25.56 | EA | ||
| 22b | 100501 | Arm Pad Desk | $25.56 | EA | ||
| 23 | 003260 | Spacer, .62ODx.316IDx.090L | $0.42 | EA | ||
| 26 | 100696 | M5 x 30mm PPH Capscrew | $1.71 | EA | ||
| 27 | 100746 | M6 Flat Washer Blk Zn | $1.71 | EA | ||
| 28 | 102625 | M6 X 30 BHCS BLK ZC | $1.71 | EA | ||
| 29 | 111976 | Flip Back T-Arm Spacer | $6.85 | EA | ||
| 30 | 100797 | M6 x 40 BHCS BLK ZC | $1.13 | EA | ||
| 33 | 112010 | T-Arm Receiver | $3.30 | EA | ||
| 34 | 111954 | Threaded Half Nut Plate | $6.49 | EA | ||
| 35 | 100831 | 1/2" Washer OD .040" Thick | $1.71 | EA |
