Catalyst E And 4e
Name: Catalyst E and 4E: Ergonomic Handrim
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

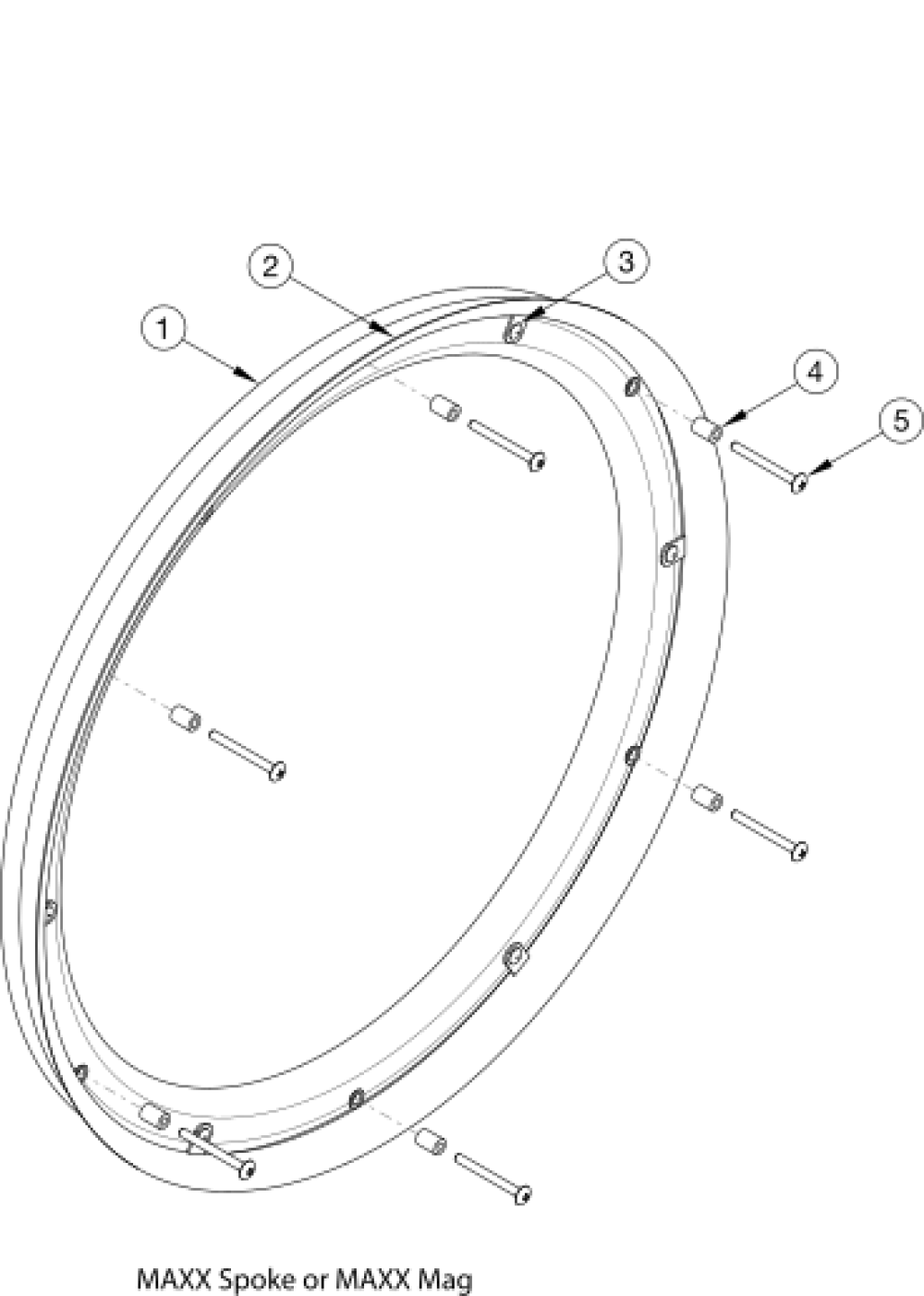

Part Picture
(Click on image to enlarge)
Hardware Handrim ChartFor more information, see Handrim Hardware Chart. Quantity in Handrim Hardware Kits are for one wheel.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 2a, 3 | 119022 | Ergonomic Handrim Standard Regular Thumb Grip 6 Rivet NUT 22"- Used on 22" Ki Spoke, 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 22" Ki Spoke, 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. |
$257.08
|
EA |
|
| 1a, 2a, 3, 9 | 120070 | Ergonomic Handrim Standard Regular Thumb Grip 6 Rivet NUT 22" w/ Micro Grip- Used on 22" Ki Spoke, 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag. Micro Grip is not show in diagram. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 22" Ki Spoke, 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag. Micro Grip is not show in diagram. If retrofitting from omit handrim, Handrim Tabs are required. |
$286.71
|
EA |
|
| 1a, 2b, 3 | 119023 | Ergonomic Handrim Standard Extra Thumb Grip 6 Rivet NUT 22"- Used on 22" Ki Spoke, 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 22" Ki Spoke, 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. |
$257.08
|
EA |
|
| 1a, 2b, 3, 9 | 122979 | Ergonomic Handrim Standard Extra Thumb Grip 6 Rivet 22" w/ Micro Grip- Used on 22" Ki Spoke, 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 22" Ki Spoke, 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. |
$286.71
|
EA |
|
| 1b, 2a, 3 | 119024 | Ergonomic Handrim Lite Regular Thumb Grip 6 Rivet NUT 22"- Used on 22" Ki Spoke, 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 22" Ki Spoke, 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. |
$279.27
|
EA |
|
| 1b, 2a, 3, 9 | 120071 | Ergonomic Handrim Lite Regular Thumb Grip 6 Rivet NUT 22" w/ Micro Grip- Used on 22" Ki Spoke, 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag. Micro Grip is not show in diagram. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 22" Ki Spoke, 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag. Micro Grip is not show in diagram. If retrofitting from omit handrim, Handrim Tabs are required. |
$308.89
|
EA |
|
| 1b, 2b, 3 | 119025 | Ergonomic Handrim Lite Extra Thumb Grip 6 Rivet NUT 22"- Used on 22" Ki Spoke, 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 22" Ki Spoke, 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. |
$279.27
|
EA |
|
| 1c, 2c, 3 | 119026 | Ergonomic Handrim Standard Regular Thumb Grip 6 Rivet NUT 24"- Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. |
$273.04
|
EA |
|
| 1c, 2c, 3, 9 | 120072 | Ergonomic Handrim Standard Regular Thumb Grip 6 Rivet NUT 24" w/ Micro Grip- Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag. Micro Grip is not show in diagram. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag. Micro Grip is not show in diagram. If retrofitting from omit handrim, Handrim Tabs are required. |
$305.10
|
EA |
|
| 1c, 2d, 3 | 119027 | Ergonomic Handrim Standard Extra Thumb Grip 6 Rivet NUT 24"- Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. |
$273.04
|
EA |
|
| 1c, 2d, 3, 9 | 120073 | Ergonomic Handrim Standard Extra Thumb Grip 6 Rivet NUT 24" w/ Micro Grip- Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag. Micro Grip is not show in diagram. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag. Micro Grip is not show in diagram. If retrofitting from omit handrim, Handrim Tabs are required. |
$305.10
|
EA |
|
| 1d, 2c, 3 | 119028 | Ergonomic Handrim Lite Regular Thumb Grip 6 Rivet NUT 24"- Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. |
$283.42
|
EA |
|
| 1d, 2c, 3, 9 | 120074 | Ergonomic Handrim Lite Regular Thumb Grip 6 Rivet NUT 24" w/ Micro Grip- Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag. Micro Grip is not show in diagram. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag. Micro Grip is not show in diagram. If retrofitting from omit handrim, Handrim Tabs are required. |
$315.47
|
EA |
|
| 1d, 2d, 3 | 119029 | Ergonomic Handrim Lite Extra Thumb Grip 6 Rivet NUT 24"- Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. |
$283.42
|
EA |
|
| 1d, 2d, 3, 9 | 120075 | Ergonomic Handrim Lite Extra Thumb Grip 6 Rivet NUT 24" w/ Micro Grip- Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag. Micro Grip is not show in diagram. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag. Micro Grip is not show in diagram. If retrofitting from omit handrim, Handrim Tabs are required. |
$315.47
|
EA |
|
| 1e, 2e, 3 | 119030 | Ergonomic Handrim Standard Regular Thumb Grip 6 Rivet NUT 25"- Used on 25" Ki Spoke and 25" MAXX Spoke. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 25" Ki Spoke and 25" MAXX Spoke. If retrofitting from omit handrim, Handrim Tabs are required. |
$237.85
|
EA |
|
| 1e, 2f, 3 | 119031 | Ergonomic Handrim Standard Extra Thumb Grip 6 Rivet NUT 25"- Used on 25" Ki Spoke and 25" MAXX Spoke. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 25" Ki Spoke and 25" MAXX Spoke. If retrofitting from omit handrim, Handrim Tabs are required. |
$237.85
|
EA |
|
| 1f, 2e, 3 | 119032 | Ergonomic Handrim Lite Regular Thumb Grip 6 Rivet NUT 25"- Used on 25" Ki Spoke and 25" MAXX Spoke. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 25" Ki Spoke and 25" MAXX Spoke. If retrofitting from omit handrim, Handrim Tabs are required. |
$297.59
|
EA |
|
| 1f, 2e, 3, 9 | 120076 | Ergonomic Handrim Lite Regular Thumb Grip 6 Rivet NUT 25" w/ Micro Grip- Used on 25" Ki Spoke and 25" MAXX Spoke. Micro Grip is not show in diagram. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 25" Ki Spoke and 25" MAXX Spoke. Micro Grip is not show in diagram. If retrofitting from omit handrim, Handrim Tabs are required. |
$330.60
|
EA |
|
| 1f, 2f, 3 | 119033 | Ergonomic Handrim Lite Extra Thumb Grip 6 Rivet NUT 25"- Used on 25" Ki Spoke and 25" MAXX Spoke. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 25" Ki Spoke and 25" MAXX Spoke. If retrofitting from omit handrim, Handrim Tabs are required. |
$297.59
|
EA |
|
| 1f, 2f, 3, 9 | 120077 | Ergonomic Handrim Lite Extra Thumb Grip 6 Rivet NUT 25" w/ Micro Grip- Used on 25" Ki Spoke and 25" MAXX Spoke. Micro Grip is not show in diagram. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 25" Ki Spoke and 25" MAXX Spoke. Micro Grip is not show in diagram. If retrofitting from omit handrim, Handrim Tabs are required. |
$330.60
|
EA |
|
| 2c, 3, 6a | 119034 | Ergonomic Handrim Standard Regular Thumb Grip 6 Tab 24"- Used on 24" Spinergy/Superlight/Topolino | Used on 24" Spinergy/Superlight/Topolino |
$260.04
|
EA |
|
| 2c, 3, 6a, 9 | 120080 | Ergonomic Handrim Standard Regular Thumb Grip Tab 24" w/ Micro Grip- Used on 24" Spinergy/Superlight/Topolino | Used on 24" Spinergy/Superlight/Topolino |
$292.09
|
EA |
|
| 2d, 3, 6a | 119035 | Ergonomic Handrim Standard Extra Thumb Grip 6 Tab 24"- Used on 24" Spinergy/Superlight/Topolino | Used on 24" Spinergy/Superlight/Topolino |
$260.04
|
EA |
|
| 2d, 3, 6a, 9 | 120081 | Ergonomic Handrim Standard Extra Thumb Grip Tab 24" w/ Micro Grip- Used on 24" Spinergy/Superlight/Topolino | Used on 24" Spinergy/Superlight/Topolino |
$292.09
|
EA |
|
| 2c, 3, 6b | 119036 | Ergonomic Handrim Lite Regular Thumb Grip 6 Tab 24"- Used on 24" Spinergy/Superlight/Topolino | Used on 24" Spinergy/Superlight/Topolino |
$297.59
|
EA |
|
| 2c, 3, 6b, 9 | 120314 | Ergonomic Handrim Lite Regular Thumb Grip 6 Tab 24" w/ Micro Grip- Used on 24" Spinergy/Superlight/Topolino | Used on 24" Spinergy/Superlight/Topolino |
$329.63
|
EA |
|
| 2d, 3, 6b | 119037 | Ergonomic Handrim Lite Extra Thumb Grip 6 Tab 24"- Used on 24" Spinergy/Superlight/Topolino | Used on 24" Spinergy/Superlight/Topolino |
$297.59
|
EA |
|
| 2d, 3, 6b, 9 | 120315 | Ergonomic Handrim Lite Extra Thumb Grip 6 Tab 24" w/Micro Grip- Used on 24" Spinergy/Superlight/Topolino | Used on 24" Spinergy/Superlight/Topolino |
$329.63
|
EA |
|
| 4a, 5a, 11 | 119039 | Spoke Ergonomic Handrim Hardware Kit 6 Rivet Nut w/ Handrim Tabs- Tabs are not shown in diagram | Tabs are not shown in diagram |
$41.98
|
EA |
|
| 4a, 5a | 119042 | Spoke Ergonomic Handrim Hardware Kit 6 Rivet Nut |
$37.44
|
EA |
|
|
| 4b, 5b | 119040 | Maxx Mag Ergonomic Handrim Hardware Kit 6 Rivet Nut |
$36.33
|
EA |
|
|
| 7, 8 | 120611 | 6 Tab Ergonomic Handrim Hardware Kit- Used with Spinergy and Topolino Wheel | Used with Spinergy and Topolino Wheel |
$14.50
|
EA |
|
| 10 | 120610 | Superlight Ergonomic Handrim Hardware Kit- Hardware is not shown in diagram | Hardware is not shown in diagram |
$14.44
|
EA |
|
| 1a | 113082 | Ergonomic Standard Handrim 6 Rivet Nut 22"- Used on 22" Ki Spoke, 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 22" Ki Spoke, 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. |
$232.05
|
EA |
|
| 1b | 113085 | Ergonomic Lite Handrim 6 Rivet Nut 22"- Used on 22" Ki Spoke, 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 22" Ki Spoke, 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. |
$255.37
|
EA |
|
| 1c | 113083 | Ergonomic Standard Handrim 6 Rivet Nut 24"- Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. |
$232.05
|
EA |
|
| 1d | 113086 | Ergonomic Lite Handrim 6 Rivet Nut 24"- Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 24" Ki Spoke, 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag. If retrofitting from omit handrim, Handrim Tabs are required. |
$250.34
|
EA |
|
| 1e | 113084 | Ergonomic Standard Handrim 6 Rivet Nut 25"- Used on 25" Ki Spoke and 25" MAXX Spoke. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 25" Ki Spoke and 25" MAXX Spoke. If retrofitting from omit handrim, Handrim Tabs are required. |
$224.21
|
EA |
|
| 1f | 113087 | Ergonomic Lite Handrim 6 Rivet Nut 25"- Used on 25" Ki Spoke and 25" MAXX Spoke. If retrofitting from omit handrim, Handrim Tabs are required. | Used on 25" Ki Spoke and 25" MAXX Spoke. If retrofitting from omit handrim, Handrim Tabs are required. |
$255.35
|
EA |
|
| 4a | 100653 | Handrim Spacer Spoke- Used with Ki Spoke and Maxx Spoke | Used with Ki Spoke and Maxx Spoke |
$1.19
|
|
|
| 4b | 101756 | Handrim Spacer Plastic Coated Rivet- Used with Maxx Magg | Used with Maxx Magg |
$0.61
|
|
|
| 5a | 122063 | PHMS, M5x0.8x40, CLS4.8, PHL, BLZ, NYL, DIN7985, Custom- Used with Ki Spoke and Maxx Spoke | Used with Ki Spoke and Maxx Spoke |
$1.81
|
|
|
| 5b | 122064 | PHMS, M5x0.8x50, CLS4.8, PHL, BLZ, NYL, DIN7985, Custom- Used with Maxx Magg | Used with Maxx Magg |
$1.81
|
|
|
| 6a | 113080 | Ergonomic Standard Handrim 6 Tab 24"- Used on 24" Spinergy/Superlight/Topolino | Used on 24" Spinergy/Superlight/Topolino |
$225.30
|
EA |
|
| 6b | 113081 | Ergonomic Lite Handrim 6 Tab 24"- Used on 24" Spinergy/Superlight/Topolino | Used on 24" Spinergy/Superlight/Topolino |
$247.91
|
EA |
|
| 7 | 100669 | M5 x 10 BTN SHCS BLKZC w/Patch- Used on Spinergy/Topolino | Used on Spinergy/Topolino |
$1.81
|
EA |
|
| 8 | 100657 | M5 Nylock Nut Blk Zn- Used on Spinergy/Topolino | Used on Spinergy/Topolino |
$0.61
|
EA |
|
| 10 | 100536 | M5 x 12 BTN SHCS ZC- Used on Superlight | Used on Superlight |
$2.41
|
|
|
| 11 | 100698 | Handrim Tab- Used with Ki Spoke and Maxx Spoke. Tabs are not shown in diagram. | Used with Ki Spoke and Maxx Spoke. Tabs are not shown in diagram. |
$4.54
|
|
