Catalyst E And 4e
Name: Catalyst E and 4E: Catalyst E Back Upholstery - Tension Adjustable
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

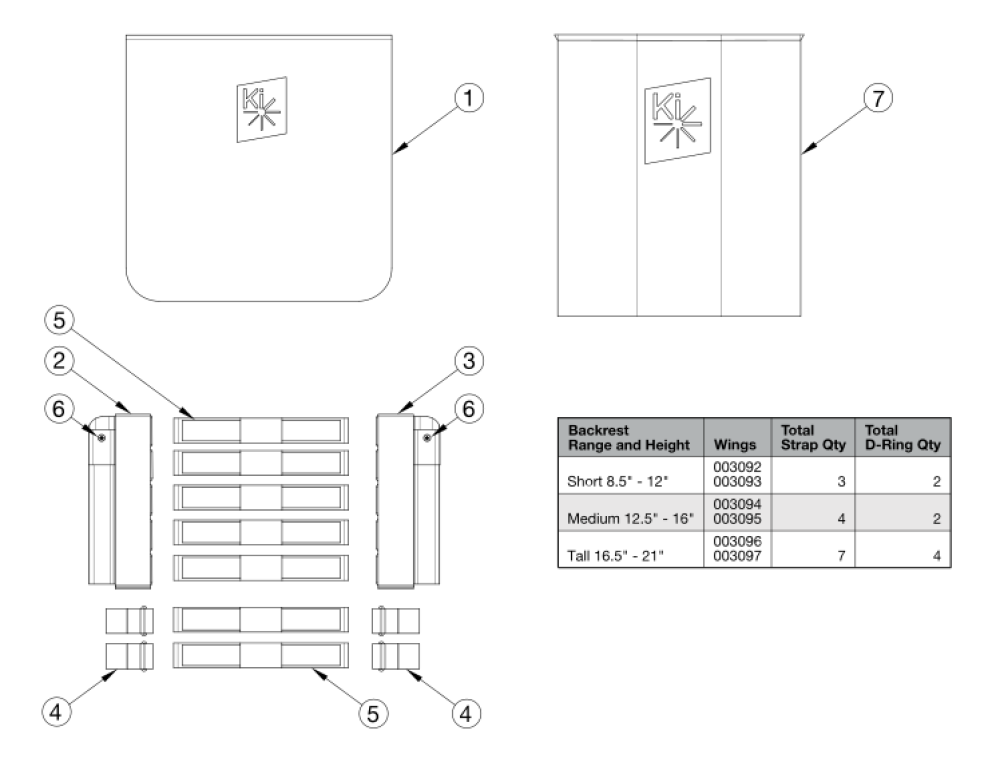

Part Picture
(Click on image to enlarge)
Assemblies contain the cover, amount of straps and d-rings used for the tallest height listed in the assembly.
Attaching hardware is not included with the back upholstery assemblies.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 2a, 3a, 4, 5a | 116000 | Back Upholstery Assembly Tension Adjustable with Standard Cover 14W, 8.5" - 12" |
$431.24
|
EA |
|
|
| 1b, 2b, 3b, 4, 5a | 116001 | Back Upholstery Assembly Tension Adjustable with Standard Cover 14W, 12.5"-16" |
$563.12
|
EA |
|
|
| 1c, 2c, 3c, 4, 5a | 116002 | Back Upholstery Assembly Tension Adjustable with Standard Cover 14W, 16.5" - 21" |
$589.55
|
EA |
|
|
| 1d, 2a, 3a, 4, 5b | 117476 | Back Upholstery Assembly Tension Adjustable with Standard Cover 15W, 8.5" - 12" |
$431.24
|
EA |
|
|
| 1e, 2b, 3b, 4, 5b | 117477 | Back Upholstery Assembly Tension Adjustable with Standard Cover 15W, 12.5"-16" |
$431.24
|
EA |
|
|
| 1g, 2a, 3a, 4, 5c | 116003 | Back Upholstery Assembly Tension Adjustable with Standard Cover 16W, 8.5" - 12" |
$431.24
|
EA |
|
|
| 1h, 2b, 3b, 4, 5c | 116004 | Back Upholstery Assembly Tension Adjustable with Standard Cover 16W, 12.5" - 16" |
$563.12
|
EA |
|
|
| 1i, 2c, 3c, 4, 5c | 116005 | Back Upholstery Assembly Tension Adjustable with Standard Cover 16W, 16.5" - 21" |
$589.55
|
EA |
|
|
| 1j, 2a, 3a, 4, 5d | 117479 | Back Upholstery Assembly Tension Adjustable with Standard Cover 17W, 8.5" - 12" |
$431.24
|
EA |
|
|
| 1k, 2b, 3b, 4, 5d | 117480 | Back Upholstery Assembly Tension Adjustable with Standard Cover 17W, 12.5" - 16" |
$431.24
|
EA |
|
|
| 1l, 2c, 3c, 4, 5d | 117481 | Back Upholstery Assembly Tension Adjustable with Standard Cover 17W, 16.5" - 21" |
$589.55
|
EA |
|
|
| 1m, 2a, 3a, 4, 5e | 116006 | Back Upholstery Assembly Tension Adjustable with Standard Cover 18W, 8.5" - 12" |
$431.24
|
EA |
|
|
| 1n, 2b, 3b, 4, 5e | 116007 | Back Upholstery Assembly Tension Adjustable with Standard Cover 18W, 12.5" - 16" |
$563.12
|
EA |
|
|
| 1o, 2c, 3c, 4, 5e | 116008 | Back Upholstery Assembly Tension Adjustable with Standard Cover 18W, 16.5" - 21" |
$589.55
|
EA |
|
|
| 1p, 2a, 3a, 4, 5f | 117482 | Back Upholstery Assembly Tension Adjustable with Standard Cover 19W, 8.5" - 12" |
$431.24
|
EA |
|
|
| 1s, 2a, 3a, 4, 5g | 116009 | Back Upholstery Assembly Tension Adjustable with Standard Cover 20W, 8.5" - 12" |
$431.24
|
EA |
|
|
| 1t, 2b, 3b, 4, 5g | 116010 | Back Upholstery Assembly Tension Adjustable with Standard Cover 20W, 12.5" - 16" |
$563.12
|
EA |
|
|
| 1u, 2c, 3c, 4, 5g | 116011 | Back Upholstery Assembly Tension Adjustable with Standard Cover 20W, 16.5" - 21" |
$589.55
|
EA |
|
|
| 1v, 2a, 3a, 4, 5h | 117519 | Back Upholstery Assembly Tension Adjustable with Standard Cover 21W, 8.5" - 12" |
$563.12
|
EA |
|
|
| 1w, 2b, 3b, 4, 5h | 117486 | Back Upholstery Assembly Tension Adjustable with Standard Cover 21W, 12.5" - 16" |
$563.12
|
EA |
|
|
| 1x, 2c, 3c, 4, 5h | 117487 | Back Upholstery Assembly Tension Adjustable with Standard Cover 21W, 16.5" - 21" |
$589.55
|
EA |
|
|
| 1y, 2b, 3b, 4, 5i | 116012 | Back Upholstery Assembly Tension Adjustable with Standard Cover 22W, 12.5" - 16" |
$563.12
|
EA |
|
|
| 1z, 2c, 3c, 4, 5i | 116013 | Back Upholstery Assembly Tension Adjustable with Standard Cover 22W, 16.5" - 21" |
$589.55
|
EA |
|
|
| 2a, 3a, 4, 5a, 7a | 116014 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 14W, 8.5" - 12" |
$369.06
|
EA |
|
|
| 2b, 3b, 4, 5a, 7b | 116015 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 14W, 12.5" - 16" |
$391.78
|
EA |
|
|
| 2c, 3c, 4, 5a, 7c | 116016 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 14W, 16.5" - 21" |
$589.55
|
EA |
|
|
| 2a, 3a, 4, 5b, 7d | 117488 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 15W, 8.5" - 12" |
$369.06
|
EA |
|
|
| 2b, 3b, 4, 5b, 7e | 117489 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 15W, 12.5" - 16" |
$369.06
|
EA |
|
|
| 2c, 3c, 4, 5b, 7f | 117490 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 15W, 16.5" - 21" |
$589.55
|
EA |
|
|
| 2a, 3a, 4, 5b, 7g | 116017 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 16W, 8.5" - 12" |
$380.43
|
EA |
|
|
| 2b, 3b, 4, 5b, 7h | 116018 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 16W, 12.5" - 16" |
$403.15
|
EA |
|
|
| 2c, 3c, 4, 5b, 7i | 116019 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 16W, 16.5" - 21" |
$414.51
|
EA |
|
|
| 2a, 3a, 4, 5c, 7j | 117491 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 17W, 8.5" - 12" |
$369.06
|
EA |
|
|
| 2b, 3b, 4, 5c, 7k | 117492 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 17W, 16.5" - 21" |
$589.55
|
EA |
|
|
| 2c, 3c, 4, 5c, 7l | 117493 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 17W, 12.5" - 16" |
$369.06
|
EA |
|
|
| 2a, 3a, 4, 5d, 7m | 116020 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 18W, 8.5" - 12" |
$391.78
|
EA |
|
|
| 2b, 3b, 4, 5d, 7n | 116021 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 18W, 12.5" - 16" |
$414.51
|
EA |
|
|
| 2c, 3c, 4, 5d, 70 | 116022 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 18W, 16.5" - 21" |
$414.51
|
EA |
|
|
| 2a, 3a, 4, 5e, 7p | 117494 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 19W, 8.5" - 12" |
$369.06
|
EA |
|
|
| 2b, 3b, 4, 5e, 7q | 117495 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 19W, 12.5" - 16" |
$369.06
|
EA |
|
|
| 2c, 3c, 4, 5e, 7r | 117496 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 19W, 16.5" - 21" |
$589.55
|
EA |
|
|
| 2a, 3a, 4, 5f, 7s | 116023 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 20W, 8.5" - 12" |
$406.56
|
EA |
|
|
| 2b, 3b, 4, 5f, 7t | 116024 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 20W, 12.5" - 16" |
$429.28
|
EA |
|
|
| 2c, 3c, 4, 5f, 7u | 116025 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 20W, 16.5" - 21" |
$429.28
|
EA |
|
|
| 2a, 3a, 4, 5g, 7v | 117497 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 21W, 8.5" - 12" |
$429.28
|
EA |
|
|
| 2b, 3b, 4, 5g, 7w | 117498 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 21W, 12.5" - 16" |
$446.32
|
EA |
|
|
| 2c, 3c, 4, 5g, 7x | 117499 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 21W, 16.5" - 21" |
$446.32
|
EA |
|
|
| 2b, 3b, 4, 5h, 7y | 116026 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 22W, 12.5" - 16" |
$446.32
|
EA |
|
|
| 2c, 3c, 4, 5g, 7z | 116027 | Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 22W, 16.5" - 21" |
$446.32
|
EA |
|
|
| 1a | 002497 | Backrest Cover 13" Rigid / 14" Cat x 9-12" |
$230.44
|
EA |
|
|
| 1b | 002499 | Backrest Cover 13" Rigid / 14" Cat x 13-16" |
$230.44
|
EA |
|
|
| 1c | 003043 | Backrest Cover 13" Rigid - 14" CAT/Liberty x 17-20" |
$253.16
|
EA |
|
|
| 1d | 002501 | Backrest Cover 14" Rigid / 15" Cat x 9-12" |
$241.80
|
EA |
|
|
| 1e | 002503 | Backrest Cover 14" Rigid / 15" Cat x 13-16" |
$241.80
|
EA |
|
|
| 1f | 003044 | Backrest Cover 14" Rigid - 15" CAT/Liberty x 17-20" |
$253.16
|
EA |
|
|
| 1g | 002505 | Backrest Cover 15" Rigid / 16" Cat x 9-12" |
$241.80
|
EA |
|
|
| 1h | 002507 | Backrest Cover 15" Rigid / 16" Cat x 13-16" |
$241.80
|
EA |
|
|
| 1i | 003045 | Backrest Cover 15" Rigid - 16" CAT/Liberty x 17-20" |
$253.16
|
EA |
|
|
| 1j | 002509 | Backrest Cover 16" Rigid / 17" Cat x 9-12" |
$241.80
|
EA |
|
|
| 1k | 002511 | Backrest Cover 16" Rigid / 17" Cat x 13-16" |
$241.80
|
EA |
|
|
| 1l | 003046 | Backrest Cover 16" Rigid - 17" CAT/Liberty x 17-20" |
$253.16
|
EA |
|
|
| 1m | 003048 | Backrest Cover 17" Rigid / 18" Cat x 9-12" |
$253.16
|
EA |
|
|
| 1n | 003050 | Backrest Cover 17" Rigid / 18" Cat x 13-16" |
$253.16
|
EA |
|
|
| 1o | 003052 | Backrest Cover 17" Rigid - 18" CAT/Liberty x 17-20" |
$253.16
|
EA |
|
|
| 1p | 003054 | Backrest Cover 18" Rigid / 19" Cat x 9-12" |
$253.16
|
EA |
|
|
| 1q | 003056 | Backrest Cover 18" Rigid / 19" Cat x 13-16" |
$253.16
|
EA |
|
|
| 1r | 003058 | Backrest Cover 18" Rigid - 19" CAT/Liberty x 17-20" |
$253.16
|
EA |
|
|
| 1s | 003060 | Backrest Cover 19" Rigid / 20" Cat x 9-12" |
$264.53
|
EA |
|
|
| 1t | 003062 | Backrest Cover 19" Rigid / 20" Cat x 13-16" |
$264.53
|
EA |
|
|
| 1u | 003064 | Backrest Cover 19" Rigid - 20" CAT/Liberty x 17-20" |
$264.53
|
EA |
|
|
| 1v | 003066 | Backrest Cover 20" Rigid / 21" Cat x 9-12" |
$264.53
|
EA |
|
|
| 1w | 003068 | Backrest Cover 20" Rigid / 21" Cat x 13-16" |
$264.53
|
EA |
|
|
| 1x | 003070 | Backrest Cover 20" Rigid - 21" CAT/Liberty x 17-20" |
$264.53
|
EA |
|
|
| 1y | 003072 | Backrest Cover 21" Rigid / 22" Cat x 13-16" |
$281.58
|
EA |
|
|
| 1z | 003074 | Backrest Cover 21" Rigid - 22" CAT/Liberty x 17-20" |
$281.58
|
EA |
|
|
| 2a | 003093 | Tension Adjustable Upholstery Wing 3.5" Height Left |
$56.81
|
EA |
|
|
| 2b | 003095 | Tension Adjustable Upholstery Wing 5.5" Height Left |
$56.81
|
EA |
|
|
| 2c | 003097 | Tension Adjustable Upholstery Wing 9.5" Height Left |
$68.18
|
EA |
|
|
| 3a | 003092 | Tension Adjustable Upholstery Wing 3.5" Height Right |
$56.81
|
EA |
|
|
| 3b | 003094 | Tension Adjustable Upholstery Wing 5.5" Height Right |
$56.81
|
EA |
|
|
| 3c | 003096 | Tension Adjustable Upholstery Wing 9.5" Height Right |
$68.18
|
EA |
|
|
| 4 | 100973 | Back Upholstery D-Ring |
$11.37
|
|
||
| 5a | 003487 | Back Upholstery Strap 15.3"- Used on 14" chair widths | Used on 14" chair widths |
$13.64
|
EA |
|
| 5b | 002532 | Back Upholstery Strap 17.3"- Used on 15" chair widths | Used on 15" chair widths |
$13.64
|
EA |
|
| 5c | 002533 | Back Upholstery Strap 19.3"- Used on 16" chair widths | Used on 16" chair widths |
$13.64
|
EA |
|
| 5d | 002534 | Back Upholstery Strap 21.3"- Used on 17" chair widths | Used on 17" chair widths |
$13.64
|
EA |
|
| 5e | 002535 | Back Upholstery Strap 23.3"- Used on 18" chair widths | Used on 18" chair widths |
$13.64
|
EA |
|
| 5f | 002536 | Back Upholstery Strap 25.3"- Used on 19'' chair widths | Used on 19'' chair widths |
$17.05
|
EA |
|
| 5g | 002537 | Back Upholstery Strap 27.3"- Used on 20" chair widths | Used on 20" chair widths |
$17.05
|
EA |
|
| 5h | 002538 | Back Upholstery Strap 29.3"- Used on 21'' chair widths | Used on 21'' chair widths |
$17.05
|
EA |
|
| 5i | 002539 | Back Upholstery Strap 31.3"- Used on 22" chair widths | Used on 22" chair widths |
$17.05
|
EA |
|
| 6 | 100734 | M5 x 16 PHMS ZC |
$1.71
|
EA |
|
|
| 7a | 003896 | Air Mesh Backrest Cover 14C 13R Width x 9-12" Height |
$313.18
|
EA |
|
|
| 7b | 003898 | Air Mesh Backrest Cover 14C 13R Width x 13-16" Height |
$313.18
|
EA |
|
|
| 7c | 003913 | Air Mesh Backrest Cover 14C 13R Width x 17-20" Height |
$335.90
|
EA |
|
|
| 7d | 003900 | Air Mesh Backrest Cover 15C 14R Width x 9-12" Height |
$324.53
|
EA |
|
|
| 7e | 003902 | Air Mesh Backrest Cover 15C 14R Width x 13-16" Height |
$324.53
|
EA |
|
|
| 7f | 003914 | Air Mesh Backrest Cover 15C 14R Width x 17- 20" Height |
$335.90
|
EA |
|
|
| 7g | 003904 | Air Mesh Backrest Cover 16C 15R Width x 9-12" Height |
$324.53
|
EA |
|
|
| 7h | 003906 | Air Mesh Backrest Cover 16C 15R Width x 13-16" Height |
$324.53
|
EA |
|
|
| 7i | 003915 | Air Mesh Backrest Cover 16C 15R Width x 17-20" Height |
$335.90
|
EA |
|
|
| 7j | 003909 | Air Mesh Backrest Cover 17C 16R Width x 9-12" Height |
$324.53
|
EA |
|
|
| 7k | 003911 | Air Mesh Backrest Cover 17C 16R Width x 13-16" Height |
$324.53
|
EA |
|
|
| 7l | 003916 | Air Mesh Backrest Cover 17C 16R Width x 17-20" Height |
$335.90
|
EA |
|
|
| 7m | 003918 | Air Mesh Backrest Cover 18C 17R Width x 9-12" Height |
$335.90
|
EA |
|
|
| 7n | 003920 | Air Mesh Backrest Cover 18C 17R Width x 13-16" Height |
$335.90
|
EA |
|
|
| 7o | 003922 | Air Mesh Backrest Cover 18C 17R Width x 17-20" Height |
$335.90
|
EA |
|
|
| 7p | 003924 | Air Mesh Backrest Cover 19C 18R Width x 9-12" Height |
$335.90
|
EA |
|
|
| 7q | 003926 | Air Mesh Backrest Cover 19C 18R Width x 13-16" Height |
$335.90
|
EA |
|
|
| 7r | 003928 | Air Mesh Backrest Cover 19C 18R Width x 17-20" Height |
$335.90
|
EA |
|
|
| 7s | 003930 | Air Mesh Backrest Cover 20C 19R Wide x 9-12" Height |
$347.27
|
EA |
|
|
| 7t | 003932 | Air Mesh Backrest Cover 20C 19R Width x 13-16" Height |
$347.27
|
EA |
|
|
| 7u | 003934 | Air Mesh Backrest Cover 20C 19R Width x 17-20" Height |
$347.27
|
EA |
|
|
| 7v | 003936 | Air Mesh Backrest Cover 21C 20R Width x 9-12" Height |
$347.27
|
EA |
|
|
| 7w | 003938 | Air Mesh Backrest Cover 21C 20R Width x 13-16" Height |
$347.27
|
EA |
|
|
| 7x | 003940 | Air Mesh Backrest Cover 21C 20R Width x 17-20" Height |
$347.27
|
EA |
|
|
| 7y | 003942 | Air Mesh Backrest Cover 22C 21R Width x 13-16" Height |
$364.31
|
EA |
|
|
| 7z | 003944 | Air Mesh Backrest Cover 22C 21R Width x 17-20" Height |
$364.31
|
EA |
|
