Little Wave Clik

Name: Little Wave Clik: Clik Offset Side Frame
Manufacturer: Ki Mobility

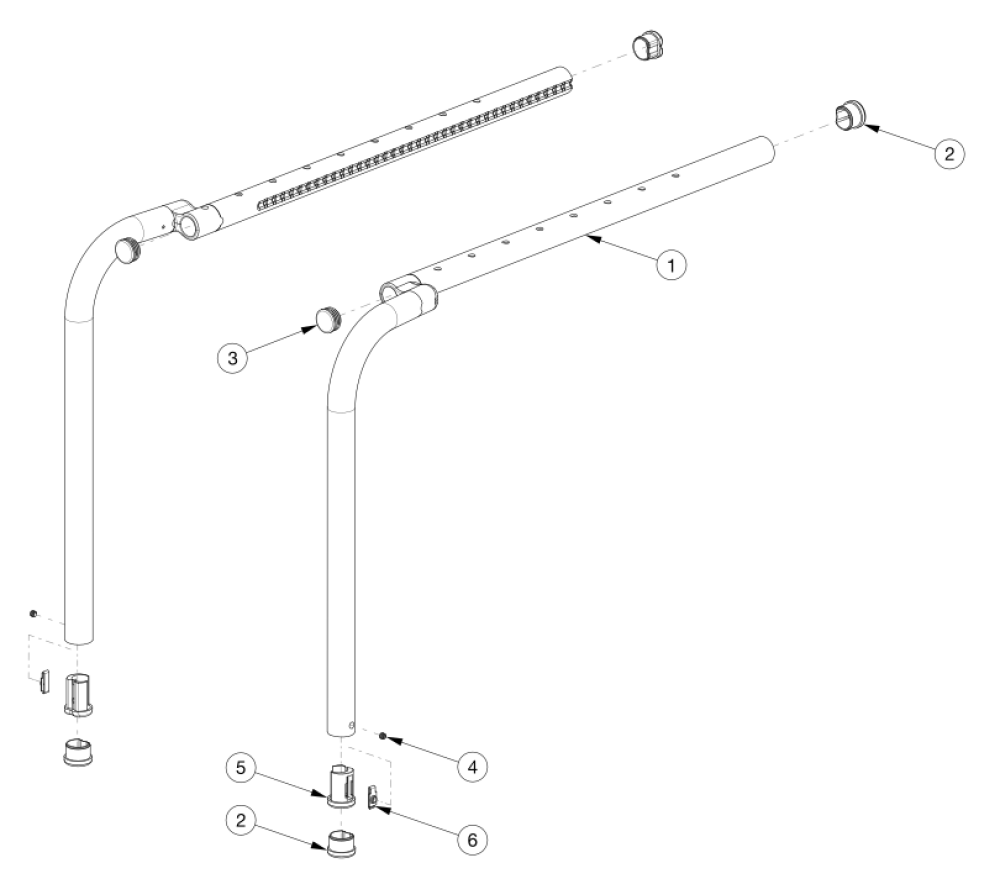

Clik Offset Side Frame parts diagram
(Click on image to enlarge)

This design effective starting with serial number CLK005270. Drilled Clik Offset Side Frames effective April 13, 2018. A Sling Position of 1'' or 2'' is Required for an Offset Side Frame Replacement side frames may be quoted, but must be ordered through Customer Service. Serial number required upon order. If changing to an Offset Frame and have Push or Pull to Lock, Push to Lock Flush or Grade Aid wheel locks, the bent wheel lock bar and long wheel lock clamp are required. Item numbers 4-6 are only needed when footrest is not high mounted. Changing to offset that if frame mounted footrest new tubes/plate may be needed.
Attachments:
Pos. Part # Description Price UOM Buy
1a, 2, 3 RFCLLS Replacement Little Wave Clik Side Frame Left
$313.99
EA
1b, 2, 3 RFCLRS Replacement Little Wave Clik Side Frame Right
$313.99
EA
1a, 1b, 2, 3 RFCLPR Replacement Little Wave Clik Side Frame PAIR
$627.95
EA
1c, 2, 3 RFCLGITLS Replacement Little Wave Clik Side Frame w/ Graphic Image Transfer Left
$653.64
EA
1d, 2, 3 RFCLGITRS Replacement Little Wave Clik Side Frame w/ Graphic Image Transfer Right
$653.64
EA
4 - 6 506824 Frame Inserted Footrest Hardware Kit, Pair, Clik
$17.38
EA
2 002791 Seat Tube End Cap- Use quantity 4 with high-mounted footrests.
$1.77
3 100804 Tube End Plug 1"
$1.77
EA
4 102090 M6 Set Screw Flat Point
$2.94
EA
5a 002797 Footrest Insert Right
$10.59
EA
5b 002799 Footrest Insert Left
$10.59
EA
6 002798 Footrest Screw Plate
$9.40
