Loading...Rogue Xp
Name: Rogue XP: Rogue / Rogue Xp Height Adjustable Low T-arm
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

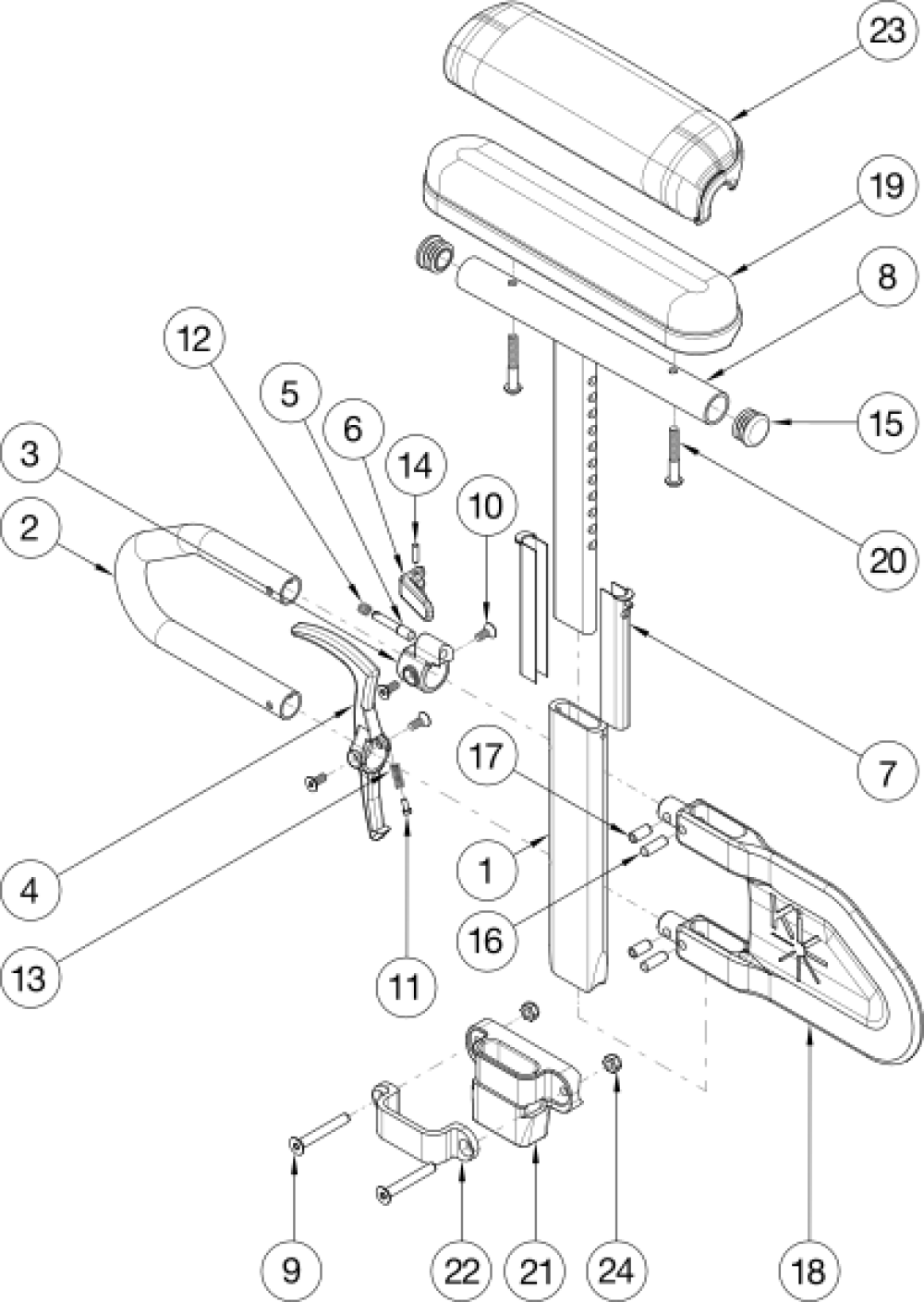

Part Picture
(Click on image to enlarge)
Low T-Arm Availability ChartHeight Adjustable Low T-Arms cannot be retrofitted
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 8a, 9, 11 - 15, 18, 19b - 20a, 21 - 22, 24 | 121221 | Height Adj T-Arm Assm Low, Desk w/ Std Pad and RG/RG ALX/LW XP Receiver PAIR |
$479.03
|
EA |
|
|
| 1 - 8a, 9, 11 - 15, 18, 19b - 20a, 21 - 22, 24 | 113444 | Height Adj T-Arm Assm Low, Desk w/ Std Pad and RG/RG ALX/LW XP Receiver |
$239.52
|
EA |
|
|
| 1 - 8b, 9, 11 - 15, 18, 19a, 20a, 21 - 22, 24 | 113461 | Height Adj T-Arm Assm Low, Full w/ Std Pad and RG/RG ALX/LW XP Receiver PAIR |
$479.03
|
EA |
|
|
| 1 - 8b, 9, 11 - 15, 18, 19a, 20a, 21 - 22, 24 | 113446 | Height Adj T-Arm Assm Low Full w/ Std Pad and RG/RG ALX/LW XP Receiver |
$239.52
|
EA |
|
|
| 1 - 8a, 9, 11 - 15, 18, 20b, 21 - 22, 23b, 24 | 121223 | Height Adj T-Arm Assm Low, Desk w/ Waterfall Pad and RG/RG ALX/LW XP Receiver PAIR |
$499.93
|
EA |
|
|
| 1 - 8a, 9, 11 - 15, 18, 20b, 21 - 22, 23b, 24 | 121212 | Height Adj T-Arm Assm Low, Desk w/ Waterfall Pad and RG/RG ALX/LW XP Receiver |
$249.98
|
EA |
|
|
| 1 - 8b, 9, 11 - 15, 18, 20b, 21 - 22, 23b, 24 | 113463 | Height Adj T-Arm Assm Low, Full w/ Waterfall Pad and RG/RG ALX/LW XP Receiver PAIR |
$499.93
|
EA |
|
|
| 1 - 8b, 9, 11 - 15, 18, 20b, 21 - 22, 23b, 24 | 113449 | Height Adj T-Arm Assm Low Full w/ Waterfall Pad and RG/RG ALX/LW XP Receiver |
$249.98
|
EA |
|
|
| 1 - 8a, 11 - 15, 18 | 114488 | Height Adjustable T-Arm, Desk, Low |
$153.00
|
EA |
|
|
| 1 - 8b, 11 - 15, 18 | 002683 | Arm T Height Adjustable Low, Full Right Assembly | N/A | EA | Please Call | |
| 1 - 8b, 11 - 15, 18 | 114489 | Height Adjustable T-Arm, Full, Low- Replaced 002683 / 002684 | Replaced 002683 / 002684 |
$153.00
|
EA |
|
| 3, 5, 6, 12, 14 | 500541 | Arm Height Adjustable T Upper Lever Assembly |
$46.32
|
EA |
|
|
| 9, 21, 22, 24 | 501731 | Height Adj T-Arm Receiver Assembly 1-3/8", RG ALX/LW XP |
$55.07
|
EA |
|
|
| 8a, 15 | 002648 | Post Weldment, T-Arm, Low, Desk |
$76.58
|
EA |
|
|
| 8b, 15 | 002649 | Post Weldment, T-Arm, Low, Full |
$79.18
|
EA |
|
|
| 1 | 002105 | Tube, Outer, T-Arm, Low |
$33.81
|
EA |
|
|
| 2 | 002104 | Transfer Tube, T-Arm, Low |
$19.20
|
EA |
|
|
| 3 | 000096 | Height Adjustable T Armrest Pin Lock Housing |
$16.80
|
EA |
|
|
| 4 | 002106 | Lever, T-Arm, Low |
$3.96
|
EA |
|
|
| 5 | 000099 | Height Adjustable Armrest Lever Pin |
$21.84
|
EA |
|
|
| 6 | 000098 | Height Adjustable Armrest Lever | N/A | EA | Please Call | |
| 7 | 000090 | Height Adjustable T Armrest Shim |
$2.92
|
|
||
| 9 | 101130 | M6 x 55 FSHCS P/THD BLKZC |
$2.41
|
EA |
|
|
| 11 | 000152 | Height Adjustable T Armrest Release Spring Button |
$1.23
|
EA |
|
|
| 12 | 000134 | Height Adjustable Armrest Lever Spring |
$1.28
|
EA |
|
|
| 13 | 000135 | Height Adjustable T Armrest Release Lever Spring |
$1.23
|
EA |
|
|
| 14 | 200257 | Dowel Pin 1/8 x 1/2 |
$3.00
|
EA |
|
|
| 15 | 100803 | Tube End Plug 7/8" |
$1.81
|
EA |
|
|
| 18 | 002107 | Sideguard, T-Arm, Low | N/A | EA | Please Call | |
| 21 | 004578 | Height Adjustable T-Arm Receiver 1.375" |
$17.41
|
EA |
|
|
| 22 | 000088 | Height Adjustable T Armrest Bracket |
$31.30
|
EA |
|
|
| 24 | 100658 | M6 Nylock Nut Blk Zn |
$1.19
|
EA |
|
|
| 19a | 100500 | Arm Pad Full |
$26.98
|
EA |
|
|
| 19b | 100501 | Arm Pad Desk |
$26.98
|
EA |
|
|
| 20a | 100696 | M5 x 30mm PPH Capscrew- Used with Standard Arm Pads | Used with Standard Arm Pads |
$1.81
|
EA |
|
| 20b | 100654 | M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with Waterfall Arm Pads | Used with Waterfall Arm Pads |
$1.81
|
|
|
| 23a | 102452 | Waterfall Arm Pad Full |
$37.44
|
EA |
|
|
| 23b | 102521 | Waterfall Arm Pad Desk |
$37.44
|
EA |
|
