Loading...Rogue XP

Rogue Xp

Name: Rogue XP: Clik / Rogue Xp Height Adjustable Back Post
Manufacturer: Ki Mobility

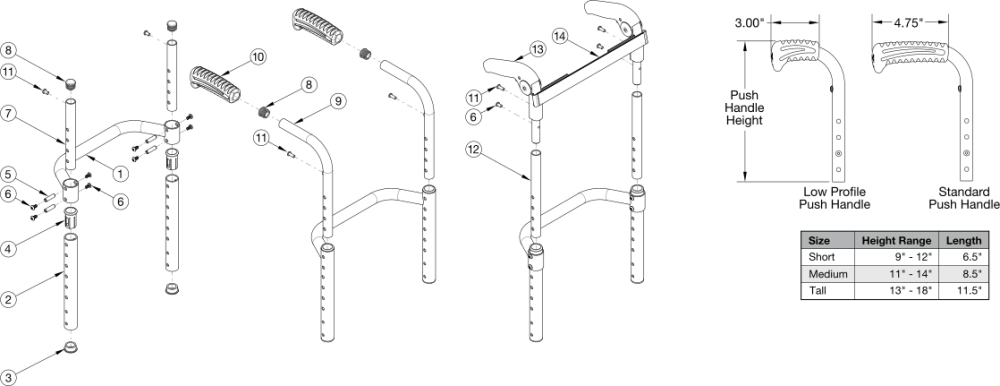

Clik / Rogue Xp Height Adjustable Back Post parts diagram
(Click on image to enlarge)

Pos.Part #DescriptionPriceBuy
6, 12a, 11, 13502609Fold Down Push Handle Assembly for Height Adj Back Short, Clik/Rogue XP- Used with Short back height range
$112.57
6, 12b, 11, 13502610Fold Down Push Handle Assembly for Height Adj Back Medium/Tall, Clik/Rogue XP- Used with Medium and Tall back height ranges
$113.62
8, 9a, 10a502602Standard Push Handle Assembly, Short- Used with Extra Short and Short back height ranges
$34.24
8, 9b, 10a110582Standard Push Handle Assembly, Medium/Tall- Used with Medium and Tall back height ranges
$34.24
8, 9c, 10b107205Low Profile Push Handle Assembly, Short- Used with Extra Short and Short back height ranges
$35.51
8, 9d, 10b110583Low Profile Push Handle Assembly, Medium/Tall- Used with Medium and Tall back height ranges
$35.51
2a, 3, 4502604Height Adjustable Back Post 6.5" with Tube End Plug and Sleeve- Used with Extra Short back height range with omit push handles, standard push handles and low profile push handles or used with Short back height range with fold down push handles
$21.61
2b, 3, 4110581Height Adjustable Back Post 7.5" with Tube End Plug and Sleeve- Used with Mediuam back height range with fold down push handles
$21.61
2c, 3, 4502605Height Adjustable Back Post 8.5" with Tube End Plug and Sleeve- Used with Short back height range with omit push handles, standard push handles and low profile push handles or used with tall back height range with fold down push handles
$21.61
2d, 3, 4502606Height Adjustable Back Post 10.5" with Tube End Plug and Sleeve- Used with Medium and Tall back height ranges with omit push handles, standard push handles and low profile push handles
$21.61
3100804Tube End Plug 1" ()
$1.55
4000034Sleeve 3/4" x 1 1/2" ()
$3.59
5000073M5 x 24 Threaded Barrel ()
$3.71
6103524M5 x 10 BTN SHCS BLK ZN ()
$0.52
7a, 8502608Straight Upper Back Tube 6.25" with Tube End Plug- Used with Extra Short and Short back height ranges
$16.40
7b, 8107209Straight Upper Back Tube 9.5" with Tube End Plug- Used with Medium and Tall back height ranges
$15.92
8100638Tube End Plug 3/4" ()
$2.06
10a109432Ergo Push Handle Grip 3/4" Standard with InstructionN/APlease Call
10b109430Ergo Push Handle Grip 3/4" Low Profile with InstructionN/APlease Call
11100734M5 x 16 PHMS ZC ()- Used to mount back upholstery and/or Fold Down Push Handle
$1.55
13001735Folding Handle Assembly Rigid- This is to replace an existing Fold Down Push Handle. If wanting to retrofit to the Fold Down Push Handle, order one of the following complete assemblies based on back height range: 502609 or 502610
$46.35
14a001748Tension Strap Folding Handle 10-11 Wide
$17.96
14b001749Tension Strap Folding Handle 12-13 Wide
$19.14
14c001750Tension Strap Folding Handle 14-15 Wide
$20.40
14d001751Tension Strap Folding Handle 16-17 Wide
$21.55
14e001752Tension Strap Folding Handle 18-19 Wide
$22.82
15100669M5 x 10 BTN SHCS BLKZC w/Patch ()
$1.55
