Zippie Ts / Zippie Ts Se (chairs W/ S/n Prefix Z1a & Z1se)

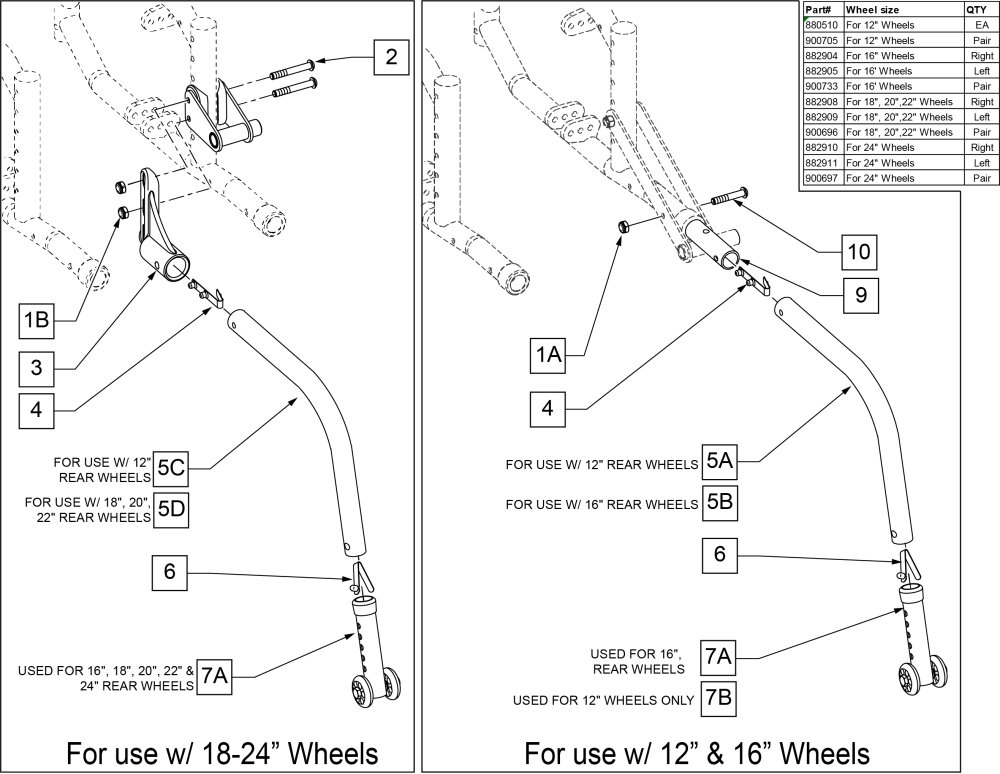

Name: Zippie TS / Zippie TS SE (Chairs w/ S/N Prefix Z1A & Z1SE): Anti Tips
Manufacturer: Sunrise Medical
(Click on image to enlarge)
Manufacturer: Sunrise Medical
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | Buy |
|---|---|---|---|---|---|
| 1A | 106935 | NUT NYLOCK THIN 1/4 -28 ROHS | $6.75 | ||
| 1B | 106934 | NUT NYLOCK 1/4 -28 ROHS | $4.75 | ||
| 2 | 106966 | BHCS 1/4 -28 x 2 1/4 ROHS | $6.75 | ||
| 3 | 920407 | ANTI-TIP RECEIVERS- PAIR | PAIR | $31.00 | |
| 4 | 301109 | SNAP BUTTON DUAL ONE SIDE | $4.75 | ||
| 4, 5A, 6 | 880985 | ANTI TIP TUBE TS W/ SNAP BUTTON- FOR USE W/ 12" REAR WHEELS | FOR USE W/ 12" REAR WHEELS | $14.00 | |
| 4, 5B, 6 | 882898 | ANTI TIP TUBE KDZ R BL W/ SNAP BUTTON- RIGHT -FOR USE W/ 16" REAR WHEELS | RIGHT -FOR USE W/ 16" REAR WHEELS | $36.00 | |
| 4, 5B, 6 | 882899 | ANTI TIP TUBE KDZ L BL W/ SNAP BUTTON- LEFT -FOR USE W/ 16" REAR WHEELS | LEFT -FOR USE W/ 16" REAR WHEELS | $36.00 | |
| 4, 5C, 6 | 882966 | ANTI TIP TUBE X/S R W/ SNAP BUTTON- RIGHT -FOR USE W/ 18", 20", 22" REAR WHEELS | RIGHT -FOR USE W/ 18", 20", 22" REAR WHEELS | $36.00 | |
| 4, 5C, 6 | 882967 | ANTI TIP TUBE X/S L W/ SNAP BUTTON- LEFT -FOR USE W/ 18", 20", 22" REAR WHEELS | LEFT -FOR USE W/ 18", 20", 22" REAR WHEELS | $36.00 | |
| 4, 5D, 6 | 882974 | ANTI TIP TUBE EXTND REG R W/ SNAP- RIGHT -FOR USE W/ 24" REAR WHEELS | RIGHT -FOR USE W/ 24" REAR WHEELS | $36.00 | |
| 4, 5D, 6 | 882975 | ANTI TIP TUBE EXTND REG L W/ SNAP- LEFT -FOR USE W/ 24" REAR WHEELS | LEFT -FOR USE W/ 24" REAR WHEELS | $36.00 | |
| 6 | 301100 | SNAP BUTTON 1/4" SINGLE | $4.75 | ||
| 7A | 881512 | ANTI-TIP SLEEVE W/WHEELS BLK (4H)- USED FOR 16", 18", 20", 22" & 24" REAR WHEELS | USED FOR 16", 18", 20", 22" & 24" REAR WHEELS | $47.00 | |
| 7B | 880486 | ANTI TIP SLEEVE W/ WHLS BZ/ZP- USED FOR 12" WHEELS ONLY | USED FOR 12" WHEELS ONLY | $58.00 | |
| 8 | 561004 | 1" SADDLE 1/4" HOLE | $4.75 | ||
| 9 | 109734 | TUBE EXTENSION FRAME | $22.50 | ||
| 10 | 112390 | BHCS 1/4 -28 x 1 3/4 FULL ROHS | $4.75 | ||
| 4, 5A, 6, 7B | 880510 | ANTI TIP TUBE TS 12" WHEEL- For 12" WHEELS | For 12" WHEELS | $41.00 | |
| 4, 5A, 6, 7B | 900705 | ANTI TIP ASSM TS 12" WHEEL- PAIR | PAIR | $81.00 | |
| 4, 5B, 6, 7A | 882904 | ANTI TIP ASSM KIDZ R BLACK- For 16" WHEELS -RIGHT | For 16" WHEELS -RIGHT | $41.00 | |
| 4, 5B, 6, 7A | 882905 | ANTI TIP ASSM KIDZ L BLACK- For 16' WHEELS -LEFT | For 16' WHEELS -LEFT | $41.00 | |
| 4, 5B, 6, 7A | 900733 | ANTI TIP ASSM KIDZ BLK- PAIR | PAIR | $81.00 | |
| 4, 5C, 6, 7A | 882908 | ANTI TIP ASSM SMALL EXT R BLK- For 18", 20",22" WHEELS - RIGHT | For 18", 20",22" WHEELS - RIGHT | $46.00 | |
| 4, 5C, 6, 7A | 882909 | ANTI TIP ASSM SMALL EXT L BLK- For 18", 20",22" WHEELS - LEFT | For 18", 20",22" WHEELS - LEFT | $46.00 | |
| 4, 5C, 6, 7A | 900696 | ANTI TIP ASSM SMALL EXTEND- PAIR | PAIR | $92.00 | |
| 4, 5D, 6, 7A | 882910 | ANTI TIP ASSM REG EXTEND R BLK- For 24" WHEELS -RIGHT | For 24" WHEELS -RIGHT | $46.00 | |
| 4, 5D, 6, 7A | 882911 | ANTI TIP ASSM REG EXTEND L BLK- For 24" WHEELS -LEFT | For 24" WHEELS -LEFT | $46.00 | |
| 4, 5D, 6, 7A | 900697 | ANTI-TIP ASSM REGULAR EXTEND- PAIR | PAIR | $92.00 | |
| 1B, 2, 3 | 115730 | A/T REC W/ HDW KIT R- RIGHT | RIGHT | $48.00 | |
| 1B, 2, 3 | 115731 | A/T REC W/ HDW KIT L- LEFT | LEFT | $48.00 |
