Catalyst E And 4e

Name: Catalyst E and 4E: Catalyst E Caster Housing - Standard
Manufacturer: Ki Mobility

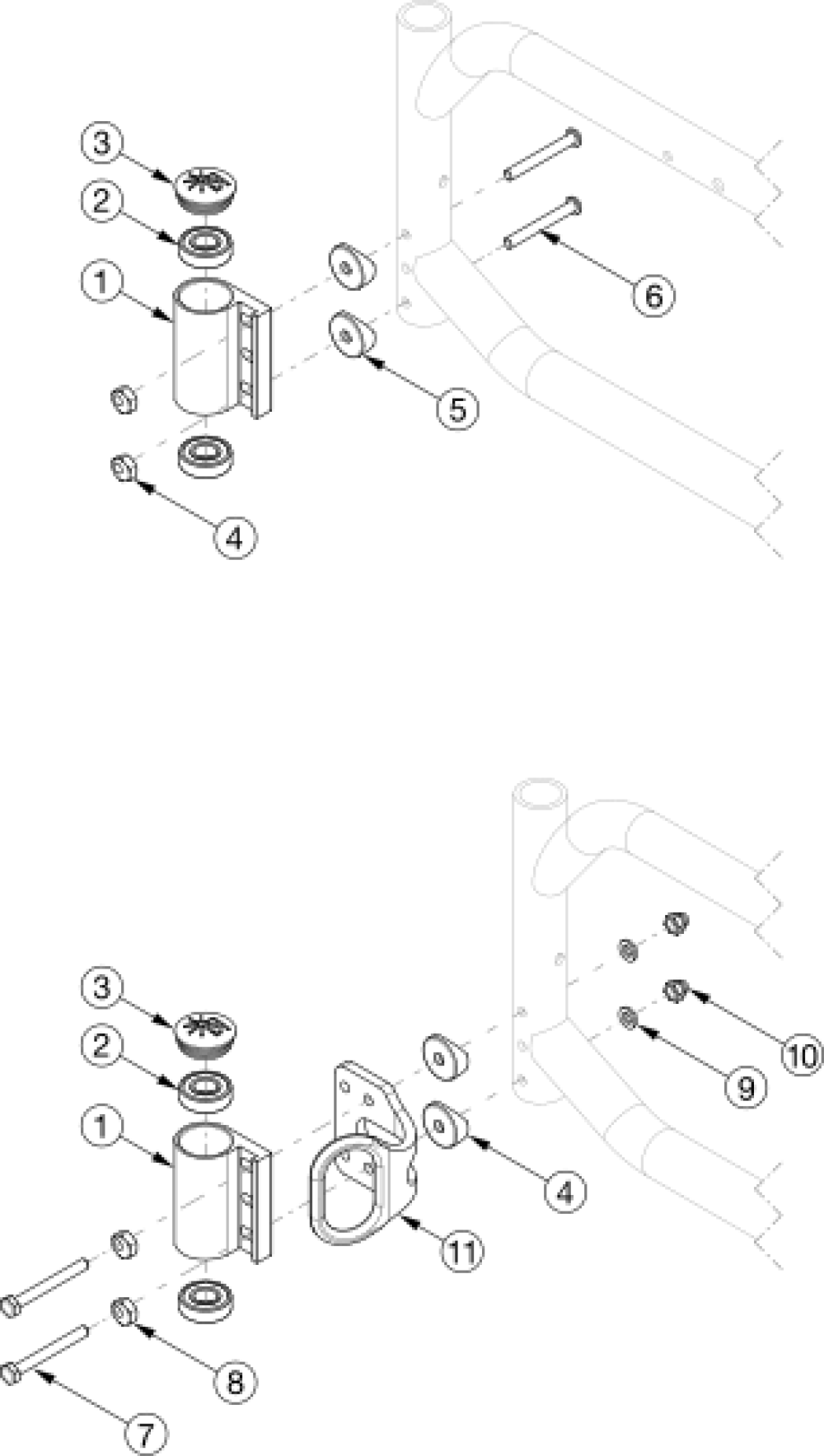

Catalyst E Caster Housing - Standard parts diagram
(Click on image to enlarge)

Reference order form for detailed front seat height matrix. Please Note: The shown orientation of the caster housing above is in the "Forward" position.
Pos. Part # Description Price UOM Buy
1a, 2 - 6 501172 Standard Caster Housing Assembly, Black, Left, No Transit, Standard Weight Capacity, Catalyst
$51.92
EA
1b, 2 - 6 501173 Standard Caster Housing Assembly, Black, Right, No Transit, Standard Weight Capacity, Catalyst
$51.92
EA
1a, 1b, 2 - 6 501174 Standard Caster Housing Assembly, Black, PAIR, No Transit, Standard Weight Capacity, Catalyst
$103.85
EA
1a, 2, 3, 5, 7 - 10 501175 Standard Caster Housing Assembly, Black, Left, Transit, Standard Weight Capacity, Catalyst- Transit Bracket not included in assembly
$56.94
EA
1b, 2, 3, 5, 7 - 10 501176 Standard Caster Housing Assembly, Black, Right, Transit, Standard Weight Capacity, Catalyst- Transit Bracket not included in assembly
$56.94
EA
1a, 1b, 2, 3, 5, 7 - 10 501177 Standard Caster Housing Assembly, Black, PAIR, Transit, Standard Weight Capacity, Catalyst- Transit Bracket not included in assembly
$113.90
EA
1a, 2 100526 Caster Housing Left, Black, CAT/Liberty
$42.16
EA
1b, 2 100527 Caster Housing Right, Black, CAT/Liberty
$42.16
EA
3 102005 Ki Caster Housing Cap
$1.31
EA
4, 6 112171 Standard Caster Housing Attaching Hardware for Swing Away Frame, No Transit, Standard Weight Capacity, PAIR
$14.48
EA
5 000056 Saddle 1 1/8"
$1.77
7 - 10 112956 Standard Caster Housing Attaching Hardware for Swing Away Frame, Transit, Standard Weight Capacity, PAIR
$25.74
EA
7 100677 M6 x 60 CLS10.9 DIN931 HHCS ZC
$1.77
EA
8 100510 Eccentric Washer
$1.84
9 100746 M6 Flat Washer Blk Zn
$1.77
EA
10 100558 M6 NYL INS Domed Cap L/N ZC
$1.17
EA
