loadingLoading... Catalyst E and 4E

Catalyst E And 4e

Name: Catalyst E and 4E: Catalyst E Transit
Manufacturer: Ki Mobility

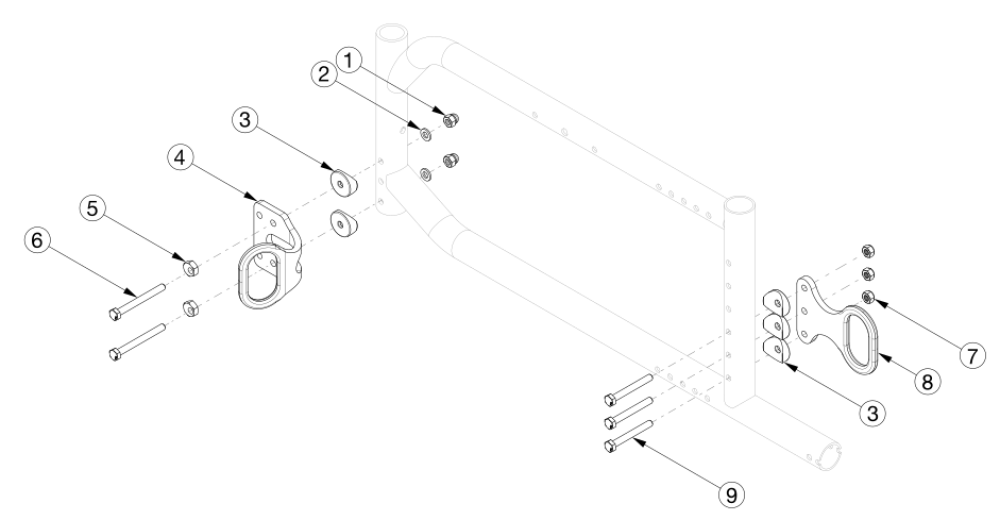

Catalyst E Transit parts diagram
(Click on image to enlarge)

Notice: Chair configuration review required prior to parts being quoted or ordered. Not available with Heavy Duty Option
Attachments:
Pos. Part # Description Price UOM Buy
1 - 9 115998 Transit Bracket Retrofit Kit Catalyst E- Not available with Heavy Duty Option. This kit is a complete retrofit, containing a pair of front and rear transit brackets and hardware.
$301.43
EA
1 100558 M6 NYL INS Domed Cap L/N ZC
$1.17
EA
2 100746 M6 Flat Washer Blk Zn
$1.77
EA
3 000056 Saddle 1 1/8"
$1.77
5 100510 Eccentric Washer
$1.84
6 100677 M6 x 60 CLS10.9 DIN931 HHCS ZC
$1.77
EA
7 100658 M6 Nylock Nut Blk Zn
$1.17
EA
9 101826 M6 x 50 HHCS Blk Zn
$2.36
EA
