Name: Catalyst E and 4E: Catalyst E Wheel Locks - Push And Pull To Lock
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

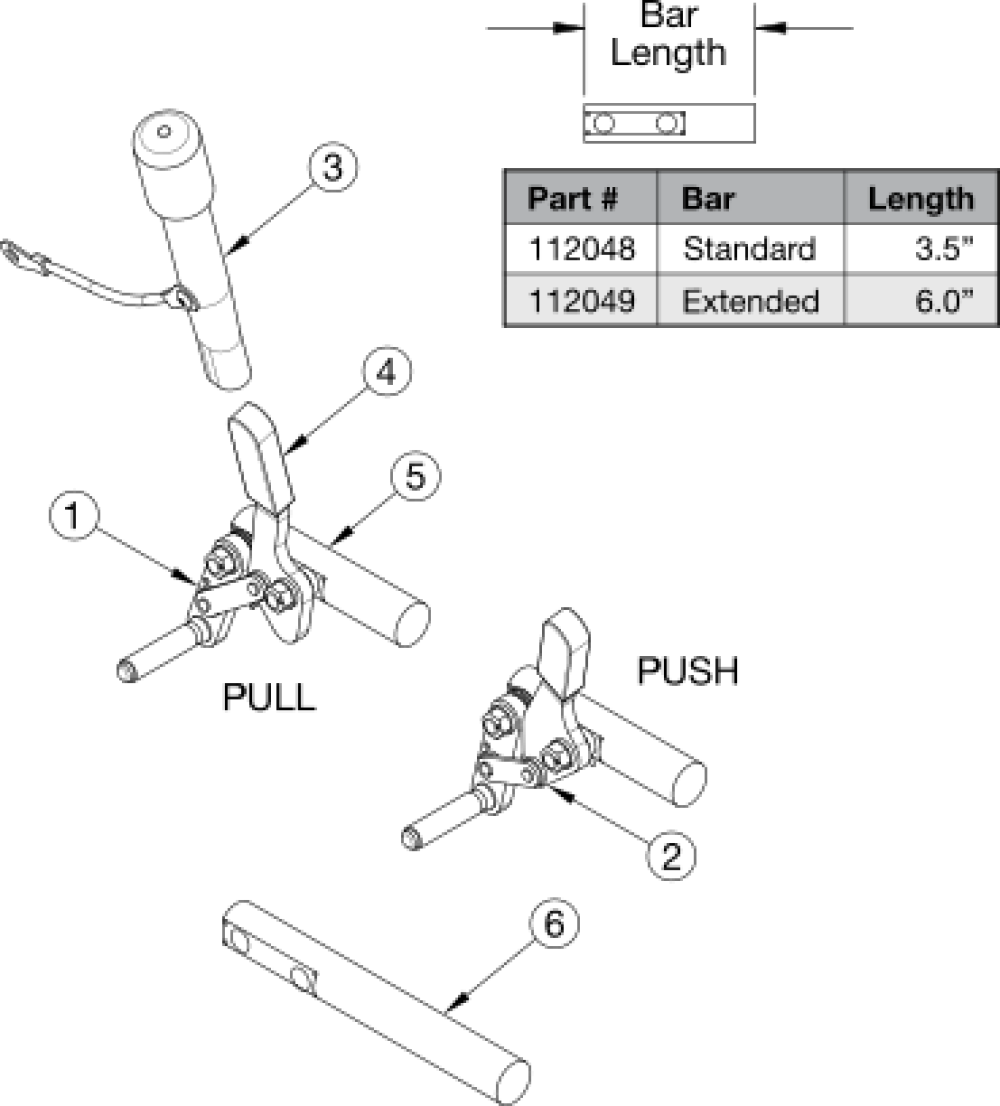

Part Picture
(Click on image to enlarge)
Catalyst Wheel Lock Orientation
Implemented August 2022
Notice: Chair configuration review required prior to parts being quoted or ordered
Please see the "Catalyst Wheel Lock Orientation" reference to determine if you need standard or reversed wheel locks.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 2, 5 | 124094 | Thru Post Wheel Lock Push Right Standard- If invoiced prior to 7/2025 pair of wheel lock will be needed | If invoiced prior to 7/2025 pair of wheel lock will be needed |
$42.44
|
EA |
|
| 2, 5 | 124095 | Thru Post Wheel Lock Push Left Standard- If invoiced prior to 7/2025 pair of wheel lock will be needed | If invoiced prior to 7/2025 pair of wheel lock will be needed |
$42.44
|
EA |
|
| 2, 5 | 124896 | Thru Post Wheel Lock, Push PAIR- If invoiced prior to 7/2025 pair of wheel lock will be needed | If invoiced prior to 7/2025 pair of wheel lock will be needed |
$84.88
|
EA |
|
| 2, 5 | 115614 | Wheel Lock, Push, Right, Reversed |
$44.56
|
EA |
|
|
| 2, 5 | 115615 | Wheel Lock, Push, Left, Reversed |
$44.56
|
EA |
|
|
| 2, 5 | 124897 | Wheel Lock, Push, Reversed PAIR |
$89.12
|
EA |
|
|
| 1, 5 | 124098 | Thru Post Wheel Lock Pull Right Standard- If invoiced prior to 7/2025 pair of wheel lock will be needed | If invoiced prior to 7/2025 pair of wheel lock will be needed |
$42.44
|
EA |
|
| 1, 5 | 124099 | Thru Post Wheel Lock Pull Left Standard- If invoiced prior to 7/2025 pair of wheel lock will be needed | If invoiced prior to 7/2025 pair of wheel lock will be needed |
$42.44
|
EA |
|
| 1, 5 | 124899 | Thru Post Wheel Lock, Pull PAIR- If invoiced prior to 7/2025 pair of wheel lock will be needed | If invoiced prior to 7/2025 pair of wheel lock will be needed |
$84.88
|
EA |
|
| 1, 5 | 115618 | Wheel Lock, Pull, Right, Reversed |
$44.56
|
EA |
|
|
| 1, 5 | 115619 | Wheel Lock, Pull, Left, Reversed |
$44.56
|
EA |
|
|
| 1, 5 | 124900 | Wheel Lock, Pull, Reversed PAIR |
$89.12
|
EA |
|
|
| 2, 3, 5 | 124096 | Thru Post Wheel Lock Push Right with Extension Handle- If invoiced prior to 7/2025 pair of wheel lock will be needed | If invoiced prior to 7/2025 pair of wheel lock will be needed |
$55.74
|
EA |
|
| 2, 3, 5 | 124097 | Thru Post Wheel Lock Push Left with Extension Handle- If invoiced prior to 7/2025 pair of wheel lock will be needed | If invoiced prior to 7/2025 pair of wheel lock will be needed |
$55.74
|
EA |
|
| 2, 3, 5 | 124901 | Thru Post Wheel Lock, Push w/ Extension PAIR- If invoiced prior to 7/2025 pair of wheel lock will be needed | If invoiced prior to 7/2025 pair of wheel lock will be needed |
$111.48
|
EA |
|
| 2, 3, 5 | 115616 | Wheel Lock, Push w/ Extension, Right, Reversed |
$58.52
|
EA |
|
|
| 2, 3, 5 | 115617 | Wheel Lock, Push w/ Extension, Left, Reversed |
$58.52
|
EA |
|
|
| 2, 3, 5 | 124902 | Wheel Lock, Push w/ Extension, Reversed PAIR |
$117.04
|
EA |
|
|
| 1, 3, 5 | 124100 | Thru Post Wheel Lock Pull Right with Extension Handle- If invoiced prior to 7/2025 pair of wheel lock will be needed | If invoiced prior to 7/2025 pair of wheel lock will be needed |
$55.74
|
EA |
|
| 1, 3, 6 | 124101 | Thru Post Wheel Lock Pull Left with Extension Handle- If invoiced prior to 7/2025 pair of wheel lock will be needed | If invoiced prior to 7/2025 pair of wheel lock will be needed |
$55.74
|
EA |
|
| 1, 3, 5 | 124903 | Thru Post Wheel Lock, Pull w/ Extension PAIR- If invoiced prior to 7/2025 pair of wheel lock will be needed | If invoiced prior to 7/2025 pair of wheel lock will be needed |
$111.48
|
EA |
|
| 1, 3, 5 | 115620 | Wheel Lock, Pull w/ Extension, Right, Reversed |
$58.52
|
EA |
|
|
| 1, 3, 5 | 115621 | Wheel Lock, Pull w/ Extension, Left, Reversed |
$58.52
|
EA |
|
|
| 1, 3, 5 | 124904 | Wheel Lock, Pull w/ Extension, Reversed PAIR |
$117.04
|
EA |
|
|
| 3 | 200369 | Wheel Lock Extension |
$40.78
|
EA |
|
|
| 4 | 111247 | Wheel Lock Cover Plastic |
$2.38
|
EA |
|
|
| 6 | 112049 | Wheel Lock Mount Bar Extended- Used as needed | Used as needed |
$10.88
|
EA |
|
