Cr45
Name: CR45: Cr45 Footplates - Angle Adjustable Extension Mount
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

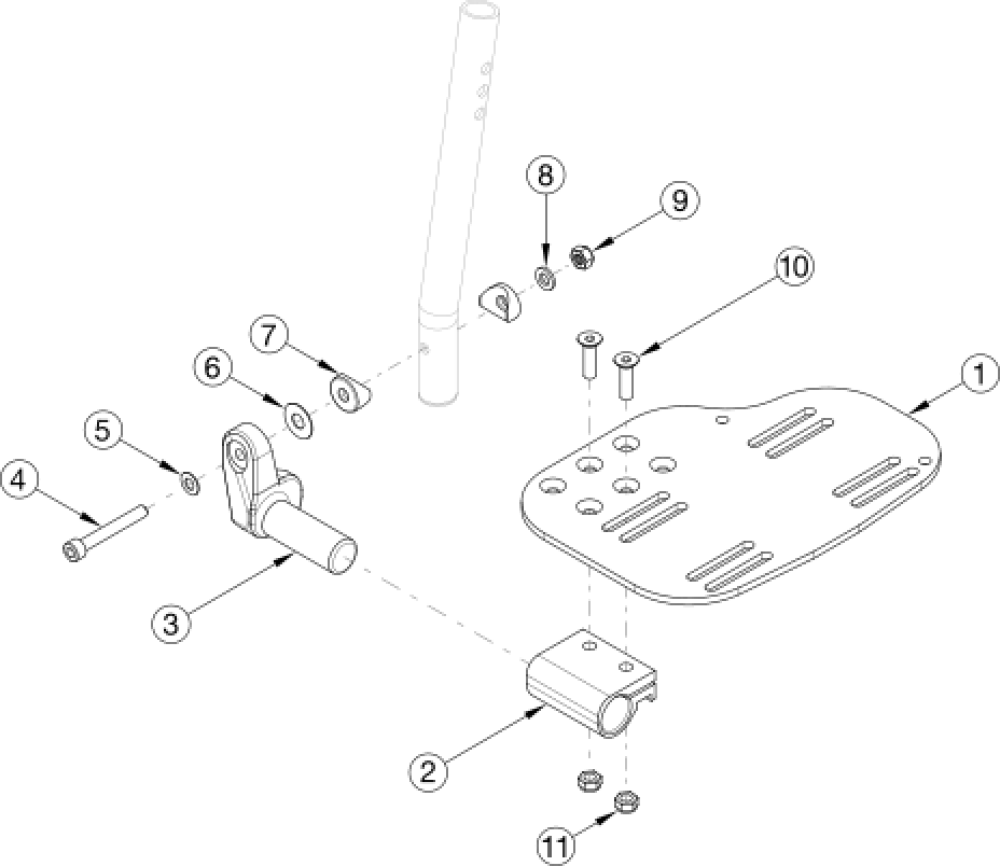

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 2, 3b, 4 - 11 | 502202 | Footplate Hardware Assembly Angle Adjustable Extension Mount/ELR Left |
$53.24
|
EA |
|
|
| 2, 3a, 5 - 12 | 502203 | Footplate Hardware Assembly Angle Adjustable Extension Mount/ELR Right |
$53.24
|
EA |
|
|
| 2, 3a, 3b, 4 - 11 | 502204 | Footplate Hardware Assembly Angle Adjustable Extension Mount/ELR Pair |
$106.48
|
EA |
|
|
| 1a, 2, 3b, 4 - 11 | 100252 | Footplate Angle Adjustable 14-15 Wide Extension Mount Left/ELR Right Assembly |
$132.48
|
EA |
|
|
| 1b, 2, 3a, 4 - 11 | 100253 | Footplate Angle Adjustable 14-15 Wide Extension Mount Right/ELR Left Assembly |
$132.48
|
EA |
|
|
| 1a, 1b, 2, 3a, 3b, 4 - 11 | 100254 | Footplate Angle Adjustable 14-15 Wide Extension Mount/ELR PAIR Assembly |
$264.98
|
EA |
|
|
| 1c, 2, 3b, 4 - 11 | 100255 | Footplate Angle Adjustable 16-17 Wide Extension Mount Left/ELR Right Assembly |
$132.48
|
EA |
|
|
| 1d, 2, 3a, 4 - 11 | 100256 | Footplate Angle Adjustable 16-17 Wide Extension Mount Right/ELR Left Assembly |
$132.48
|
EA |
|
|
| 1c, 1d, 2, 3a, 3b, 4 - 11 | 100257 | Footplate Angle Adjustable 16-17 Wide Extension Mount/ELR PAIR Assembly |
$264.98
|
EA |
|
|
| 1e, 2, 3b, 4 - 11 | 100258 | Footplate Angle Adjustable 18-24 Wide Extension Mount Left/ELR Right Assembly |
$132.48
|
EA |
|
|
| 1f, 2, 3a, 4 - 11 | 100259 | Footplate Angle Adjustable 18-24 Wide Extension Mount Right/ELR Left Assembly |
$132.48
|
EA |
|
|
| 1e, 1f, 2, 3a, 3b, 4 - 11 | 100260 | Footplate Angle Adjustable 18-24 Wide Extension Mount/ELR PAIR Assembly |
$264.98
|
EA |
|
|
| 1a, 2, 3b, 4 - 11 | 502184 | Footplate Kit Angle Adjustable w/ Heel Loop for Ext. Mount Hanger 14-15 Wide Left- Heel Loop with attaching hardware is included but not pictured | Heel Loop with attaching hardware is included but not pictured |
$149.33
|
EA |
|
| 1b, 2, 3a, 4 - 11 | 502185 | Footplate Kit Angle Adjustable w/ Heel Loop for Ext. Mount Hanger 14-15 Wide Right- Heel Loop with attaching hardware is included but not pictured | Heel Loop with attaching hardware is included but not pictured |
$149.33
|
EA |
|
| 1a, 1b, 2, 3a, 3b, 4 - 11 | 502186 | Footplate Kit Angle Adjustable w/ Heel Loop for Ext. Mount Hanger 14-15 Wide Pair- Heel Loop with attaching hardware is included but not pictured | Heel Loop with attaching hardware is included but not pictured |
$298.65
|
EA |
|
| 1c, 2, 3b, 4 - 11 | 502187 | Footplate Kit Angle Adjustable w/ Heel Loop for Ext. Mount Hanger 16-17 Wide Left- Heel Loop with attaching hardware is included but not pictured | Heel Loop with attaching hardware is included but not pictured |
$149.33
|
EA |
|
| 1d, 2, 3a, 4 - 11 | 502188 | Footplate Kit Angle Adjustable w/ Heel Loop for Ext. Mount Hanger 16-17 Wide Right- Heel Loop with attaching hardware is included but not pictured | Heel Loop with attaching hardware is included but not pictured |
$149.33
|
EA |
|
| 1c, 1d, 2, 3a, 3b, 4 - 11 | 502189 | Footplate Kit Angle Adjustable w/ Heel Loop for Ext. Mount Hanger 16-17 Wide Pair- Heel Loop with attaching hardware is included but not pictured | Heel Loop with attaching hardware is included but not pictured |
$298.65
|
EA |
|
| 1e, 2, 3b, 4 - 11 | 502190 | Footplate Kit Angle Adjustable w/ Heel Loop for Ext. Mount Hanger 18-24 Wide Left- Heel Loop with attaching hardware is included but not pictured | Heel Loop with attaching hardware is included but not pictured |
$149.33
|
EA |
|
| 1f, 2, 3a, 4 - 11 | 502191 | Footplate Kit Angle Adjustable w/ Heel Loop for Ext. Mount Hanger 18-24 Wide Right- Heel Loop with attaching hardware is included but not pictured | Heel Loop with attaching hardware is included but not pictured |
$149.33
|
EA |
|
| 1e, 1f, 2, 3a, 3b, 4 - 11 | 502192 | Footplate Kit Angle Adjustable w/ Heel Loop for Ext. Mount Hanger 18-24 Wide Pair- Heel Loop with attaching hardware is included but not pictured | Heel Loop with attaching hardware is included but not pictured |
$298.65
|
EA |
|
| 1a | 000105 | Footplate Angle Adjustable 14-15" Wide CAT/TILT Left (Std ELR Right) |
$70.93
|
EA |
|
|
| 1b | 000106 | Footplate Angle Adjustable 14-15" Wide CAT/TILT Right (Std ELR Left) |
$70.93
|
EA |
|
|
| 1c | 000107 | Footplate Angle Adjustable 16-17" Wide CAT/TILT Left (Std ELR Right) |
$70.93
|
EA |
|
|
| 1d | 000108 | Footplate Angle Adjustable 16-17" Wide CAT/TILT Right (Std ELR Left) |
$70.93
|
EA |
|
|
| 1e | 000109 | Footplate Angle Adjustable 18-24" Wide CAT/TILT Left (Std ELR Right) |
$70.93
|
EA |
|
|
| 1f | 000110 | Footplate Angle Adjustable 18-24" Wide CAT/TILT Right (Std ELR Left) |
$70.93
|
EA |
|
|
| 2.0 | 100502 | Angle Adj Footplate Clamp 2" |
$14.81
|
EA |
|
|
| 3a | 000047 | Footplate Angle Adjustable Casting 3/4 Right |
$22.50
|
EA |
|
|
| 3b | 000049 | Footplate Angle Adjustable Casting 3/4" Left |
$22.50
|
EA |
|
|
| 4.0 | 101472 | M6 x 45 SHCS BLK ZC |
$1.77
|
EA |
|
|
| 5 | 101455 | M6 Belleville Washer (.252 x .551 x .050) |
$1.77
|
EA |
|
|
| 6 | 000428 | Wear Washer |
$2.94
|
EA |
|
|
| 7 | 000053 | Saddle 3/4" |
$1.77
|
|
||
| 8 | 100746 | M6 Flat Washer Blk Zn |
$1.77
|
EA |
|
|
| 9 | 101456 | M6 Ovl Top L/N ZC |
$1.77
|
EA |
|
|
| 10 | 100662 | M6 x 25 FSHCS BLK ZC |
$1.77
|
|
||
| 11 | 100658 | M6 Nylock Nut Blk Zn |
$1.17
|
EA |
|
