loadingLoading... CR45

Cr45

Name: CR45: Cr45 Dual Hand Tilt With Reclining Backrest
Manufacturer: Ki Mobility

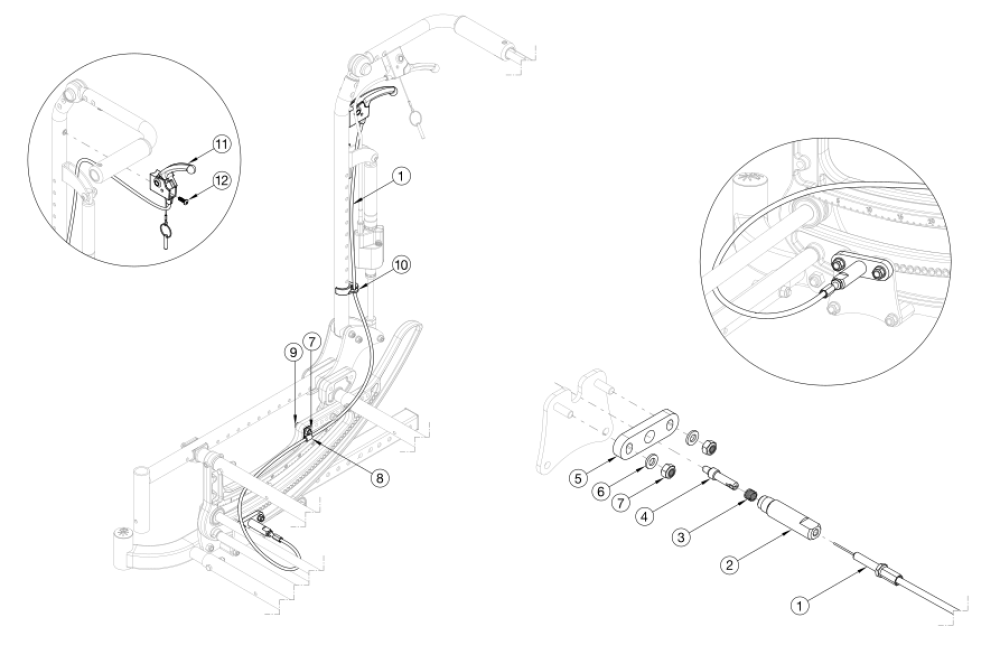

Cr45 Dual Hand Tilt With Reclining Backrest parts diagram
(Click on image to enlarge)

If retrofitting from Foot Tilt, complete Hand Tilt kits are recommended.
Pos. Part # Description Price UOM Buy
1a, 2 - 7, 10 - 12 116288 Cable Assembly Hand Tilt Short- Used with Reclining Back with Adj Handle Short 22"
$182.48
EA
1b, 2 - 7, 10 - 12 116289 Cable Assembly Hand Tilt Medium- Used with Reclining Back with Adj Handle Tall 26"
$183.96
EA
1a 112470 Hand Tilt Cable Short, CR45
$75.50
1b 112471 Hand Tilt Cable Medium, CR45
$76.99
2 112478 Plunger Housing
$11.84
3 112480 Spring, Comp, .312ODx.81LGx.032W
$1.56
4 112479 Plunger Pin
$29.91
5 112477 Tilt Lock Plunger Adapter
$32.28
6 100746 M6 Flat Washer Blk Zn
$1.77
EA
7 100658 M6 Nylock Nut Blk Zn
$1.17
EA
8 001239 P-Clip 3/16"
$7.06
EA
9 101824 M6 x 30 HHCS Blk Zn
$2.36
EA
10 001117 Cable Clip 1"
$4.28
EA
11 002800 Lever Assembly Vertical Tilt
$15.14
EA
12 100734 M5 x 16 PHMS ZC
$1.77
EA
