Cr45

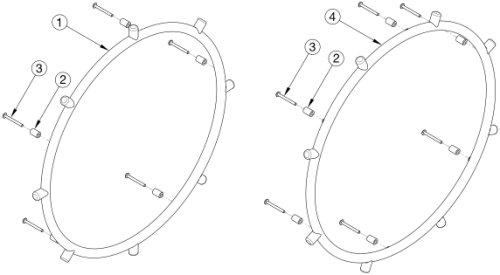

Name: CR45: Cr45 Handrims - Projection
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility
Part Picture
(Click on image to enlarge)
Handrim Hardware Chart
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 2, 3a | 502171 | Handrim Hardware Kit, 5 Rivet Nut, EACH- Used with X Core Mag wheels | Used with X Core Mag wheels | $34.09 | EA | |
| 2, 3b | 117377 | Handrim Hardware Kit, Standard Mount, MAXX Mag, EACH- Used with MAXX Mag wheels | Used with MAXX Mag wheels | $33.62 | EA | |
| 4 | 112825 | Handrim Projection, Vertical, 6 Rivet Nut 24"- Used with MAXX Mag wheels | Used with MAXX Mag wheels | $221.48 | EA | |
| 2 | 100629 | Handrim Spacer Alum Ano Riv- Used with X Core Mag wheels (Qty 5 needed) and MAXX Mag wheels (Qty 6 needed) | Used with X Core Mag wheels (Qty 5 needed) and MAXX Mag wheels (Qty 6 needed) | $1.19 | EA | |
| 3a | 100724 | M5 x 55 PH TRS HD M/S ZC- Used with X Core Mag wheels | Used with X Core Mag wheels | $1.13 | ||
| 3b | 103545 | M5 x 50 DIN7985 PH PAN HD M/S BLK ZC- Used with MAXX Mag wheels | Used with MAXX Mag wheels | $4.41 |
