Cr45
Name: CR45: Cr45 Attendant Foot Lock
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

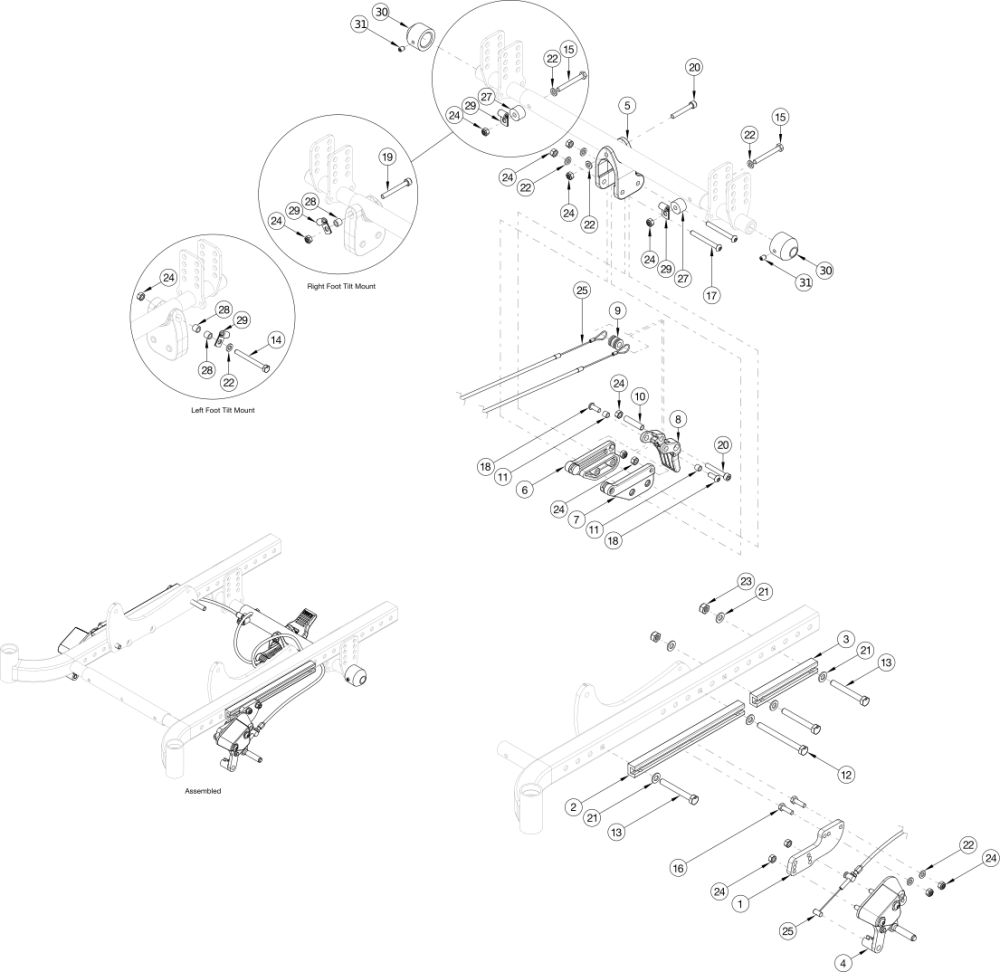

Part Picture
(Click on image to enlarge)
If retrofitting with 12" Mag, 16" Mag, or Maxx Mag present longer quick release axles are required
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 2, 4a, 4b, 5 - 11, 14 - 20, 22, 24, 25a, 26 - 31 | 116306 | Attendant Foot Lock, 12"-16" Wheels |
$588.85
|
EA |
|
|
| 1, 4a, 4b, 5 - 11, 14 - 21, 23, 30, 31 | 116302 | Attendant Foot Lock, 12"-16" Wheels w/ Reclining Backrest |
$601.80
|
EA |
|
|
| 1, 4a, 16, 22, 24, 26 | 116304 | Attendant Foot Lock, L |
$113.62
|
EA |
|
|
| 1, 4b, 16, 22, 24, 26 | 116303 | Attendant Foot Lock, R |
$113.62
|
EA |
|
|
| 5 - 11, 17 - 18, 20, 22, 24, 25a, 27 - 28 | 116305 | Foot Lock Pedal Assy, 12"-16" Wheel |
$281.09
|
EA |
|
|
| 1 | 112507 | Wheel Lock Mount |
$18.82
|
|
||
| 2 | 112505 | Wheel Lock Channel, CR45 |
$23.16
|
|
||
| 3 | 112506 | Short Wheel Lock Channel, CR45 |
$17.62
|
EA |
|
|
| 4a | 111591 | Wheel Lock Follower Assembly without Mount, Left |
$79.76
|
EA |
|
|
| 4b | 111592 | Wheel Lock Follower Assembly without Mount, Right |
$79.76
|
EA |
|
|
| 5 | 112508 | Foot Lock Mount Bracket |
$17.41
|
EA |
|
|
| 6 | 111441 | Mount, Pedal, Foot Lock, R |
$20.28
|
EA |
|
|
| 7 | 111442 | Mount, Pedal, Foot Lock, L |
$20.28
|
EA |
|
|
| 8 | 111440 | Pedal, Foot Lock |
$13.60
|
EA |
|
|
| 9 | 111443 | Spool, Foot Lock |
$1.82
|
EA |
|
|
| 11 | 111445 | Spacer, .313ODx.243IDx.270LG, SS |
$10.26
|
|
||
| 12 | 101832 | M8 x 90 HHCS Blk Zn |
$4.20
|
EA |
|
|
| 13 | 101829 | M8 x 65 HHCS Blk Zn |
$3.60
|
EA |
|
|
| 14 | 100677 | M6 x 60 CLS10.9 DIN931 HHCS ZC |
$1.81
|
EA |
|
|
| 15 | 101826 | M6 x 50 HHCS Blk Zn |
$2.41
|
EA |
|
|
| 16 | 101823 | M6 X 20 Hhcs Blk Zn |
$1.19
|
EA |
|
|
| 17 | 101125 | M6 x 55 BTN SHCS BLKZC |
$2.41
|
EA |
|
|
| 18 | 102634 | M6 X 1.0 X 16 BHCS BLK ZC |
$1.19
|
EA |
|
|
| 19 | 102473 | M6 X 50 CLS12.9 SHCS BLK ZC |
$4.79
|
EA |
|
|
| 20 | 101847 | M6 x 40 SHCS Blk Zn |
$1.09
|
EA |
|
|
| 21 | 101858 | Washer Flat M8 Blk Zn |
$0.61
|
EA |
|
|
| 22 | 100746 | M6 Flat Washer Blk Zn |
$1.81
|
EA |
|
|
| 23 | 100659 | M8 Nylock Nut Blk Zn |
$1.19
|
EA |
|
|
| 24 | 100658 | M6 Nylock Nut Blk Zn |
$1.19
|
EA |
|
|
| 25a | 111436 | Cable, Foot Lock, Short |
$75.50
|
|
||
| 25b | 111437 | Cable, Foot Lock, Long- Used for 20", 22", and 24" wheels prior to November 2023 | Used for 20", 22", and 24" wheels prior to November 2023 |
$83.06
|
|
|
| 26 | 115743 | Wheel Lock Retaining Grommet |
$1.83
|
EA |
|
|
| 27 | 102047 | Spacer, .25ID x .75OD x .50LG |
$0.85
|
EA |
|
|
| 28 | 002086 | Spacer, .38ODx.24IDx.31LG |
$2.76
|
EA |
|
|
| 29 | 001239 | P-Clip 3/16" |
$7.20
|
EA |
|
|
| 30 | 112503 | Spacer, Wheel, .47"- Required if retrofittng when 12" Mag, 16", or Maxx Mags are present | Required if retrofittng when 12" Mag, 16", or Maxx Mags are present |
$19.03
|
EA |
|
| 31 | 102090 | M6 Set Screw Flat Point- Required if retrofittng when 12" Mag, 16", or Maxx Mags are present | Required if retrofittng when 12" Mag, 16", or Maxx Mags are present |
$3.00
|
EA |
|
