Cr45
Name: CR45: Cr45 Footplates - Composite
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

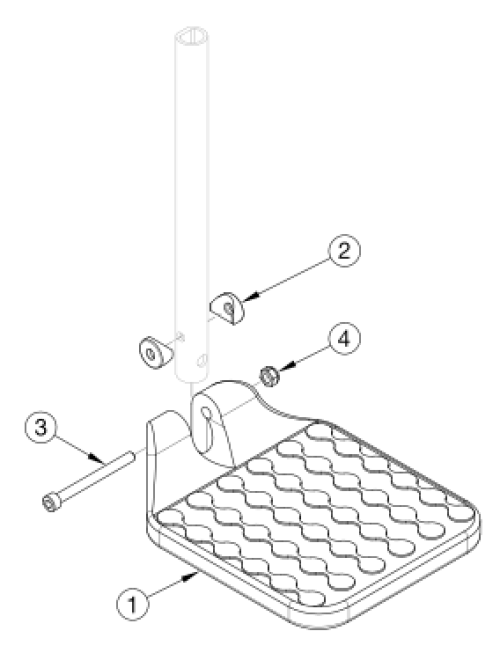

Part Picture
(Click on image to enlarge)
Sizes for footplates are based on seat width
If changing footplate style, new extension tubes may be needed.
Only compatible with extension tube hangers.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 2 - 4 | 112895 | Hardware Assembly for Composite Footplate |
$7.07
|
EA |
|
|
| 1a | 100537 | Footplate Composite 14-15" Wide CAT/TILT |
$41.98
|
EA |
|
|
| 1b | 100540 | Footplate Composite 16-17" Wide CAT/TILT |
$41.98
|
EA |
|
|
| 1c | 100542 | Footplate Composite 18-24" Wide CAT/TILT |
$41.98
|
EA |
|
|
| 2 | 000053 | Saddle 3/4" |
$1.81
|
|
||
| 3 | 101849 | M6 x 65 SHCS Blk Zn |
$2.41
|
EA |
|
|
| 4 | 100658 | M6 Nylock Nut Blk Zn |
$1.19
|
EA |
|
