Name: CR45: Cr45 Transit
Manufacturer: Ki Mobility

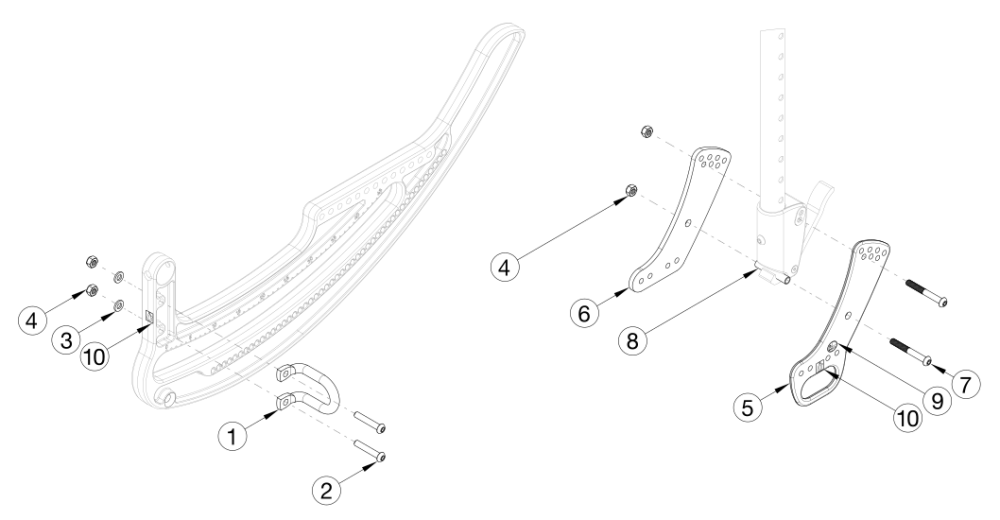

Cr45 Transit parts diagram
(Click on image to enlarge)

Attachments:
Pos. Part # Description Price UOM Buy
1 - 10 116299 Transit Retrofit Kit
$564.45
EA
1 001078 Transit Bracket Front TILT
$45.31
2 101811 M6 x 35 BHCS Blk Zn
$1.17
EA
3 100746 M6 Flat Washer Blk Zn
$1.77
EA
4 100658 M6 Nylock Nut Blk Zn
$1.17
EA
5 112489 Transit Back Plate, CR45/Flip XPA
$138.75
EA
6 112488 Standard Back Plate, CR45/Flip XPA
$79.65
EA
7 101781 M6 x 50mm Partial Thread BHCS Blk ZC
$1.77
EA
8 002738 Spacer .313 OD x .243 ID x 1.68 long
$4.39
EA
