Quickie Qs5 X
Name: Quickie Qs5 X: Flip Back Height Adj Lite Armrest
Manufacturer: Sunrise Medical
(Click on image to enlarge)
Manufacturer: Sunrise Medical

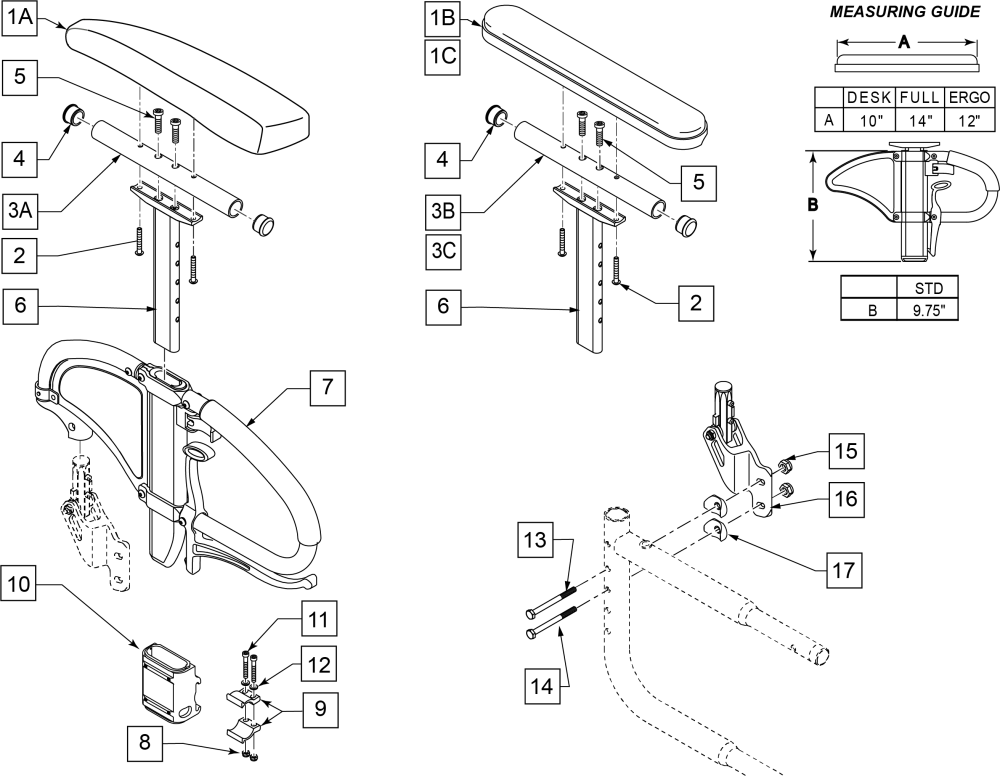

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1A, 2 | 161631S | ERGO PAD RIGHT- With Fasteners | With Fasteners |
$55.00
|
EA |
|
| 1A, 2 | 161632S | ERGO PAD LEFT- With Fasteners | With Fasteners |
$55.00
|
EA |
|
| 1B, 2 | 161633S | CLASSIC PAD DESK- With Fasteners | With Fasteners |
$41.00
|
EA |
|
| 1C, 2 | 161634S | CLASSIC PAD FULL- With Fasteners | With Fasteners |
$41.00
|
EA |
|
| 2 | 107024S | 10-32 X 1 1/2 BH C/S BLK |
$9.00
|
EA |
|
|
| 3A | 243044S | HEIGHT ADJ UPPER ARM TUBE MED |
$38.00
|
EA |
|
|
| 3B | 521812S | HT ADJ PD TUBE 10IN DESK POWE |
$50.00
|
EA |
|
|
| 3C | 521813S | HT ADJ PD TUBE 14IN FULL POWE |
$50.00
|
EA |
|
|
| 4 | 560735S | 7/8" ROUND TUBE PLUG |
$14.00
|
EA |
|
|
| 5 | 226031 | 10-32 x 1 1/4 SOC C/S BLK- Full | Full | N/A | EA | Please Call |
| 6 | 116313S | SPHA ARM PAD MOUNT |
$41.00
|
EA |
|
|
| 1A, 2, 3A, 4 - 6 | 161637S | ERGO ARM PAD W/POST RIGHT- Right | Right |
$258.00
|
EA |
|
| 1A, 2, 3A, 4 - 6 | 161638S | ERGO ARM PAD W/POST LEFT- Left | Left |
$258.00
|
EA |
|
| 6, 7 | 241726S | Q2 VIP 2 FLIP UP RH- Right | Right |
$157.00
|
EA |
|
| 6, 7 | 241592S | Q2 VIP 2 FLIP UP LH- Left | Left |
$157.00
|
EA |
|
| 8 - 12 | 161651S | SPHA FB LT RECEIVER FRNT |
$238.00
|
EA |
|
|
| 1B, 2, 3B, 4 - 7 | 161643S | SPHA FB LT CLASSIC DESK R- Right | Right |
$361.00
|
EA |
|
| 1B, 2, 3B, 4 - 7 | 161644S | SPHA FB LT CLASSIC DESK L- Left | Left |
$361.00
|
EA |
|
| 1B, 2, 3C, 4 - 7 | 161639S | SPHA FB LT CLASSIC FULL R- Right | Right |
$361.00
|
EA |
|
| 1B, 2, 3C, 4 - 7 | 161642S | SPHA FB LT CLASSIC FULL L- Left | Left |
$361.00
|
EA |
|
| 1A, 2, 3A, 4 - 7 | 161649S | SPHA FB LT ERGO R- Right | Right |
$388.00
|
EA |
|
| 1A, 2, 3A, 4 - 7 | 161650S | SPHA FB LT ERGO L- Left | Left |
$388.00
|
EA |
|
| 13 - 17 | 169949 | REAR FB ARM REC RH- Right | Right |
$50.00
|
EA |
|
| 13 - 17 | 169950 | REAR FB ARM REC LH- Left | Left |
$50.00
|
EA |
|
| 8, 11 - 15, 17 | 169951 | FB RECEIVER HARDWARE- One Side | One Side |
$20.00
|
EA |
|
