Quickie Qs5 X
Name: Quickie Qs5 X: Composite Footplate
Manufacturer: Sunrise Medical
(Click on image to enlarge)
Manufacturer: Sunrise Medical

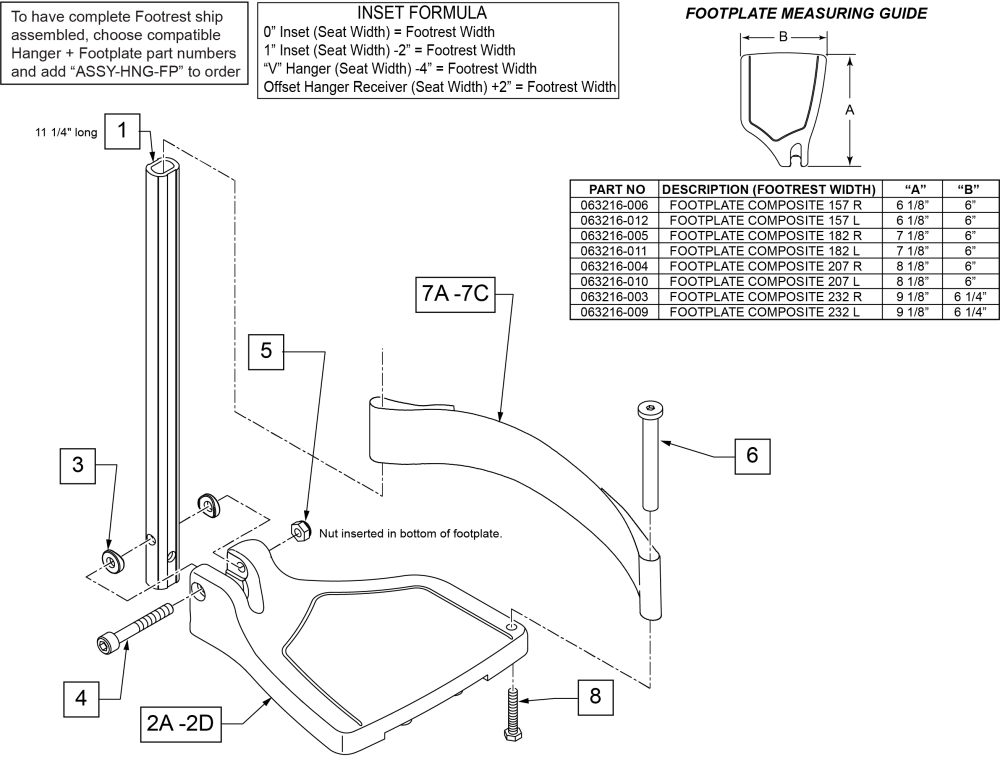

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1, 3 - 5 | 120662 | LNG STRT EXT COMP HDWR |
$32.00
|
EA |
|
|
| 2A | 063216-006S | FOOTPLATE COMPOSITE 157 R |
$26.00
|
EA |
|
|
| 2A | 063216-012S | FOOTPLATE COMPOSITE 157 L |
$28.00
|
EA |
|
|
| 2B | 063216-005S | FOOTPLATE COMPOSITE 182 R |
$28.00
|
EA |
|
|
| 2B | 063216-011S | FOOTPLATE COMPOSITE 182 L |
$28.00
|
EA |
|
|
| 2C | 063216-004S | FOOTPLATE COMPOSITE 207 R |
$28.00
|
EA |
|
|
| 2C | 063216-010S | FOOTPLATE COMPOSITE 207 L |
$28.00
|
EA |
|
|
| 2D | 063216-003S | FOOTPLATE COMPOSITE 232 R |
$28.00
|
EA |
|
|
| 2D | 063216-009S | FOOTPLATE COMPOSITE 232 L |
$28.00
|
EA |
|
|
| 3 | 104377 | 3/4" SADDLE THIN | N/A | EA | Please Call | |
| 4 | 103175 | SHCS M6 X 1 X 40, PART, NP | N/A | EA | Please Call | |
| 5 | 132626 | NUT AUTOMATION 1/4-28 ROHS | N/A | EA | Please Call | |
| 6 | 104328 | POST HEEL LOOP |
$10.00
|
EA |
|
|
| 7A | 104380-002S | ADJ FOOTREST STRAP 15-16W |
$21.00
|
EA |
|
|
| 7B | 104380-003 | ADJ FOOTREST STRAP 17-18W |
$13.00
|
EA |
|
|
| 7C | 104380-004 | ADJ FOOTREST STRAP 19-20W |
$13.00
|
EA |
|
|
| 8 | 102268-001 | HHCS M6 X 1 X 25 BLK |
$18.00
|
EA |
|
|
| 1, 2A, 3 - 6, 7A, 8 | 107732 | COMP STRT LONG EXT ASM 13"W R |
$87.00
|
EA |
|
|
| 1, 2C, 3 - 6, 7B, 8 | 107734 | COMP STRT LONG EXT ASM 15"W R |
$87.00
|
EA |
|
|
| 1, 2E, 3 - 6, 7C, 8 | 107736 | COMP STRT LONG EXT ASM 17"W R |
$87.00
|
EA |
|
|
| 1, 2G, 3 - 6, 7D, 8 | 107738 | COMP STRT LONG EXT ASM 19 & 20"W R |
$87.00
|
EA |
|
|
| 1, 2A, 3 - 6, 7A, 8 | 107739 | COMP STRT LONG EXT ASM 13"W L |
$87.00
|
EA |
|
|
| 1, 2C, 3 - 6, 7B, 8 | 107741 | COMP STRT LONG EXT ASM 15"W L |
$94.00
|
EA |
|
|
| 1, 2E, 3 - 6, 7C, 8 | 107743 | COMP STRT LONG EXT ASM 17"W L |
$87.00
|
EA |
|
|
| 1, 2G, 3 - 6, 7D, 8 | 107745 | COMP STRT LONG EXT ASM 19 & 20"W L |
$87.00
|
EA |
|
|
| - Use with multiple assemblies | Use with multiple assemblies | N/A | EA | Please Call | ||
| ASSY - HNG - FP | ASSY-HNG-FP | HANGER/FOOTPLATE ASSY REQUIRED- add with Hanger & Footplate kit | add with Hanger & Footplate kit | N/A | EA | Please Call |
