Quickie Qs5 X

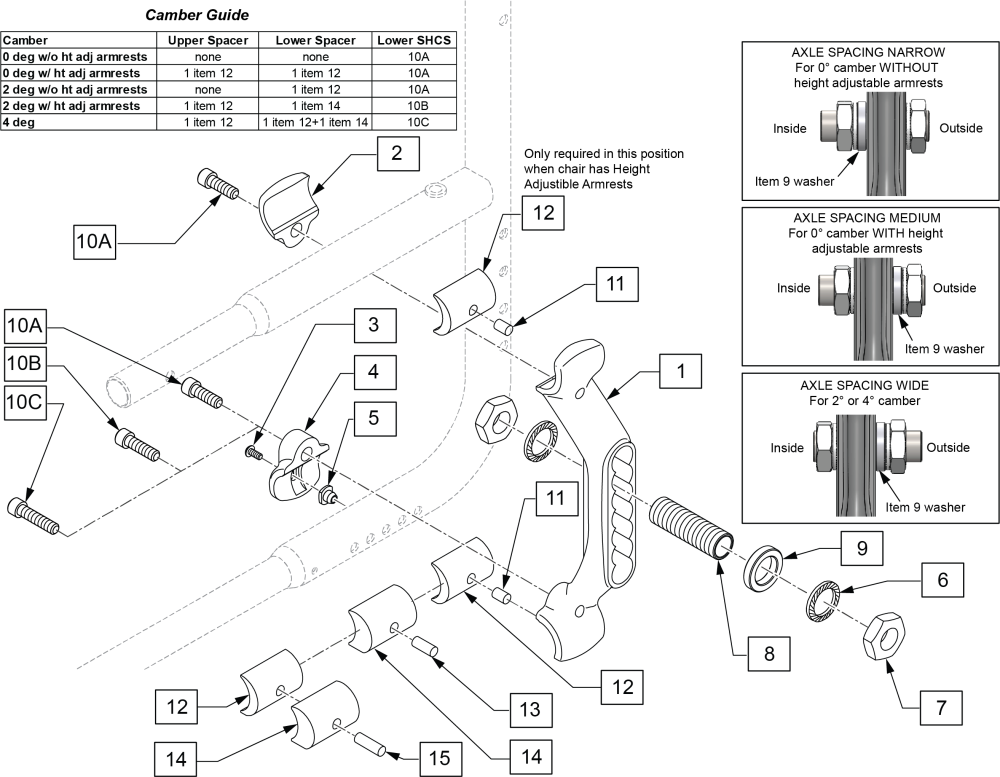

Name: Quickie Qs5 X: Axle Plate
Manufacturer: Sunrise Medical
(Click on image to enlarge)
Manufacturer: Sunrise Medical
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 6 - 9 | 169800 | AXLE SLEEVE KIT- ONE SIDE | ONE SIDE |
$30.00
|
EA |
|
| 1 - 10A | 169797 | AXLE PLATE KIT RH- right | right |
$100.00
|
EA |
|
| 1 - 10A | 169798 | AXLE PLATE KIT LH- left | left |
$100.00
|
EA |
|
| 10A, 11, 12 | 169799 | CAMBER KIT 2 DEG- 2 degree, std spacing, for 2 sides | 2 degree, std spacing, for 2 sides |
$30.00
|
EA |
|
| 10A, 10C, 11, 12, 14, 15 | 170138 | CAMBER KIT 4 DEG- 4 degree, all spacing, for 2 sides | 4 degree, all spacing, for 2 sides |
$30.00
|
EA |
|
| 10A, 10B, 11 - 14 | - 4 degree, wide spacing, for 2 sides | 4 degree, wide spacing, for 2 sides | N/A | EA | Please Call | |
| 10A, 11, 12 | - 0 degree, wide spacing, for 2 sides | 0 degree, wide spacing, for 2 sides | N/A | EA | Please Call |
